Advanced
rugged and high-performance
- Built for
- Rugged, high-demand designs
- Brightness
- High-bright options
- Backlight life
- Up to 100,000 hours
- Temperature
- Wide-range options
- Design
- Anti-vibration
Industrial & medical TFT LCD
Tianma P Series standard LCD modules
Standard TFT LCD modules for industrial and medical applications, in Advanced, Basic, and Entry tiers. Touch may be included in a specific part number or available in a separate factory configuration.
3.5 to 30.9 in Diagonal sizes
300 to 3,200 cd/m² Brightness
-30 to +85 °C Temperature options
At a glance
Tianma P Series at a glance
- Series
- Industrial and medical TFT LCD
- Tiers
- Advanced, Basic, Entry
- Diagonal sizes
- 3.5 to 30.9 in
- Resolutions
- 320 × 240 to 4200 × 2800
- Technology
- a-Si and LTPS TFT
- Display modes
- SFT wide-viewing and TN
- Brightness
- 300 to 3,200 cd/m²
- Operating temperature
- Options from -30 to +85 °C
- Interfaces
- LVDS, eDP, RGB, MIPI
- Touch
- Projected capacitive options with wet and glove support
Available P Series part numbers.
Filter by what the design needs, or search within the results.
Filter LCD panels
Choose one or more specifications to narrow the list.
Screen size (in)
Resolution
Brightness (nits)
Interface
Operating temperature
More filters
Grade
84 of 118 products list this. The rest won't match when you filter by it.
Technology
Display mode
Aspect ratio
LED driver built in
117 of 118 products list this. The rest won't match when you filter by it.
Touch
89 of 118 products list this. The rest won't match when you filter by it.
Outline dimensions
Active area
116 of 118 products list this. The rest won't match when you filter by it.
Response time
115 of 118 products list this. The rest won't match when you filter by it.
Viewing angle
115 of 118 products list this. The rest won't match when you filter by it.
Contrast ratio
114 of 118 products list this. The rest won't match when you filter by it.
118 products
| Actions | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P0350QVF1ME00Tianma P Series3.5" QVGA, RGB CMOS, SFT, Entry 350nit, -20+70C, 30K hr, w/o LED Dr | 3.5 in | 320 × 240 | 350 nits | RGB | −20 to 70 °C | 4:3 | SFT | 76.90 × 63.90 × 3.15 | a-Si | External | 70.08 x 52.26 | 25 ms | 88/88/88/88 | 800:1 | Not included | |
| P0430WQF1MA00Tianma P Series4.3 in, 480 x 272, SFT. | 4.3 in | 480 × 272 | 1,000 nits | RGB | −30 to 80 °C | 3:2 | SFT | 105.50 × 67.20 × 3.5 | a-Si | External | 95.040 x 53.856 | 25 ms | 89/89/89/89 | 800:1 | Not included | |
| P0430WQF1ME00Tianma P Series4.3 WQVGA, Entry, SFT, RGB | 4.3 in | 480 × 272 | 400 nits | RGB | −20 to 70 °C | 3:2 | SFT | 105.50 × 67.20 × 2.90 | a-Si | External | 95.040 x 53.856 | 20 ms | 80/80/80/80 | 800:1 | Not included | |
| P0430WQF1ME00DK00Tianma P Series4.3" WQVGA, Entry, RGB, SFT, 350nit, -20 +70C, PCAP, I2C, multi-touch | 4.3 in | 480 × 272 | 350 nits | RGB | −20 to 70 °C | 3:2 | SFT | 105.50 × 67.20 × 2.90 | a-Si | External | 95.040 x 53.856 | 25 ms | 88/88/88/88 | 800:1 | PCAP included | |
| P0430WQF1ME11Tianma P Series4.3 in, 480 x 272, SFT. | 4.3 in | 480 × 272 | 600 nits | RGB | −20 to 70 °C | 3:2 | SFT | 105.50 × 67.20 × 2.90 | a-Si | External | 95.040 x 53.856 | 25 ms | 88/88/88/88 | 800:1 | Not included | |
| P0567VQF1ME00Tianma P Series5.7" QVGA, Entry, SFT, RGB, 500 nits, w/o LED Dr | 5.7 in | 240 × 320 | 500 nits | RGB | −20 to 70 °C | 4:3 | SFT | 144.00 × 104.60 × 5.10 | a-Si | External | 115.2 x 86.4 | 35 ms | 85/85/85/85 | 1000:1 | Not included | |
| P0570VGF1MA00Tianma P Series5.7" VGA, Advanced, SFT, RGB, 1000 nits, -30 to +85°C, 50K hr, with LED Dr | 5.7 in | 640 × 480 | 1,000 nits | RGB | −30 to 85 °C | 4:3 | SFT | 144.0 × 104.6 × 12.3 | a-Si | Built in | 115.2 x 86.4 | 35 ms | 88/88/88/88 | 1000:1 | Not included | |
| P0570VGF1ME00Tianma P Series5.7" VGA (640 x 480), Entry, SFT, RGB, 300 nits, -20+70C, 50K hr, w/o LED Dr | 5.7 in | 640 × 480 | 300 nits | RGB | −20 to 70 °C | 4:3 | SFT | 127.2 × 100.4 × 5.8 | a-Si | External | 115.2 x 86.4 | 35 ms | 88/88/88/88 | 1000:1 | Not included | |
| P0640XGF1MB00Tianma P Series6.4" XGA, LVDS, SFT, 400nit, -30 +80C, 50Khr, with LED Dr | 6.4 in | 1024 × 768 | 400 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 140.76 × 110.52 × 2.83 | a-Si | Built in | 129.79 x 97.34 | 30 ms | 88/88/88/88 | 1000:1 | Not included | |
| P0650VGF1MA00Tianma P Series6.5" VGA, LVDS, SFT, Advanced 1200nit, -30+80C, 100K hr. w/o LED Dr | 6.5 in | 640 × 480 | 1,200 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 154.00 × 121.00 × 7.10 | a-Si | Built in | 132.48 × 99.36 | 30 ms | 88/88/88/88 | 900:1 | Not included | |
| P0650VGF1MA10Tianma P Series6.5" VGA, LVDS, SFT, Advanced 800nit, -30+80C, 70K hr. | 6.5 in | 640 × 480 | 800 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 153 × 118 × 10.9 | a-Si | External | 132.48 x 99.36 | 30 ms | 88/88/88/88 | 900:1 | Not included | |
| P0650VGF2MA20Tianma P Series6.5" VGA, LVDS, SFT, Advanced 900nit, -30+80C, 40K hr. w/o LED Dr | 6.5 in | 640 × 480 | 900 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 153 × 118 × 9.0 | a-Si | External | 132.48 x 99.36 | 25 ms | 88/88/88/88 | 800:1 | Not included | |
| P0650VGF2MA30Tianma P Series6.5" VGA, LVDS, SFT, Advanced 1,300nit, -30+80C, 70K hr. w/o LED Dr | 6.5 in | 640 × 480 | 1,300 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 153 × 118 × 8.2 | a-Si | External | 132.48 x 99.36 | 25 ms | 88/88/88/88 | 800:1 | Not included | |
| P0650VGF2MB30Tianma P Series6.5" VGA, LVDS, SFT, Basic 780nit, -30+80C, 70K hr. w/o LED Dr | 6.5 in | 640 × 480 | 750 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 153 × 118 × 8.2 | a-Si | External | 132.48 x 99.36 | 25 ms | 88/88/88/88 | 800:1 | Not included | |
| P0650VGF2MB31Tianma P Series6.5" VGA, RGB, SFT, Basic 650nit, -30+80C, 70K hr. w/o LED Dr | 6.5 in | 640 × 480 | 650 nits | RGB | −30 to 80 °C | 4:3 | SFT | 153 × 118 × 8.2 | a-Si | External | 132.48 x 99.36 | 25 ms | 88/88/88/88 | 800:1 | Not included | |
| P0700WSF1MA00Tianma P Series7 in, 1024 x 600, SFT. | 7 in | 1024 × 600 | 1,000 nits | RGB | −30 to 85 °C | 4:3 | SFT | 164.9 × 100 × 5.7 | a-Si | External | Not listed | Not listed | Not listed | Not listed | Not included | |
| P0700WSF2MB00Tianma P Series7.0" WSVGA, Basic, LVDS, SFT, 500 nits, -20+70C, 30K hr. w/o LED Dr | 7 in | 1024 × 600 | 500 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 164.5 × 104.2 × 3.5 | a-Si | External | 153.6 x 90 | 30 ms | 88/88/88/88 | 900:1 | Not included · Factory PCAP optional | |
| P0700WSF3QB00Tianma P Series7.0" WSVGA, Basic, MIPI, SFT, 500 nits, -20+70C, In-Cell touch, IIC, OB | 7 in | 1024 × 600 | 500 nits | MIPI | −20 to 70 °C | 16:9 | SFT | 160.67 x 99.87 x 2.52 (LCM) | a-Si | Built in | 153.60 x 90.00 | 30 ms | 88/88/88/88 | 1000:1 | On-cell included | |
| P0700WVF1MA00Tianma P Series7.0" WVGA, Advanced, LVDS, SFT, 1500 nits, -30+80C, 100K hr w/o LED Dr | 7 in | 800 × 480 | 1,500 nits | LVDS | −30 to 80 °C | 15:9 | SFT | 169.8 × 109.7 × 10.87 | a-Si | External | 152.40 x 91.44 | 25 ms | 85/85/85/85 | 1000:1 | Not included · Factory PCAP optional | |
| P0700WVF1MA10Tianma P Series7.0" WVGA, Advanced, LVDS, SFT, 1000 nits, -30+80C 70K hr w/ LED Dr | 7 in | 800 × 480 | 1,000 nits | LVDS | −30 to 80 °C | 5:3 | SFT | 169.80 × 109.70 × 8.9 | a-Si | Built in | 152.4 x 91.44 | 25 ms | 85/85/85/85 | 1000:1 | Not included · Factory PCAP optional | |
| P0700WVN1MA00Tianma P Series7.0" WVGA, Advanced, RGB, TN, 1000 nits -30+85C 100K hr w/o LED Dr | 7 in | 800 × 480 | 1,000 nits | RGB | −30 to 85 °C | 5:3 | TN | 164.9 × 100 × 5.7 | a-Si | External | 154.08 x 85.92 | 25 ms | 60/70/70/70 | 1000:1 | Not included · Factory PCAP optional | |
| P0700WVN1MB01Tianma P Series7.0" WVGA, Basic, RGB, TN, 450 nits, -20 to +70°C, 50K hr. w/o LED Dr | 7 in | 800 × 480 | 450 nits | RGB | −20 to 70 °C | 5:3 | TN | 164.9 × 100 × 5.7 | a-Si | External | 154.08 x 85.92 | 15 ms | 80/80/80/60 | 800:1 | Not included · Factory PCAP optional | |
| P0700WVN1ME01Tianma P Series7.0" WVGA, Entry, RGB, TN, 300 nits, -20 to +70°C, 50K hr. w/o LED Dr | 7 in | 800 × 480 | 300 nits | RGB | −20 to 70 °C | 5:3 | TN | 164.9 × 100 × 5.7 | a-Si | External | 154.08 x 85.92 | 20 ms | 60/80/80/80 | 800:1 | Not included · Factory PCAP optional | |
| P0700WVN1VA01Tianma P Series7" WVGA, Advanced, RGB, TN,1200nit, -20+70C, PCAP, I2C, multi-touch | 7 in | 800 × 480 | 1,200 nits | RGB | −20 to 70 °C | 5:3 | TN | 165 × 100 × 5.7 | a-Si | External | 154.08 x 85.92 | 25 ms | 60/80/80/80 | 500:1 | PCAP included | |
| P0700WXF1ME00Tianma P Series7.0" WXGA, Entry, LVDS, SFT, 400 nits, -20+70C, 30K hr w/o LED Dr | 7 in | 1280 × 800 | 400 nits | LVDS | −20 to 70 °C | 16:10 | SFT | 161.0 × 107.0 × 3.35 | a-Si | External | 149.76 x 93.60 | 40 ms | 88/88/88/88 | 800:1 | Not included · Factory PCAP optional | |
| P0800WVF1MA00Tianma P Series8.0" WVGA, LVDS, SFT, Advanced 1000nit, -30+80C, 50K hr. with LED Dr | 8 in | 800 × 480 | 1,000 nits | LVDS | −30 to 80 °C | 5:3 | SFT | 192 × 122 × 10.5 | a-Si | Built in | 174.0 x 104.4 | 27 ms | 80/80/80/80 | 700:1 | Not included | |
| P0800XGF2MB00Tianma P Series8.0" XGA, LVDS, SFT, Basic, 450nit, -20+70C, 50K hr. w/o LED Dr | 8 in | 1024 × 768 | 450 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 182.73 × 137.65 × 3.85 | a-Si | External | 162.05 x 121.54 | 35 ms | 88/88/88/88 | 1800:1 | Not listed | |
| P0840SVN1MB00Tianma P Series8.4" SVGA, Basic, LVDS, 350 nits, -20+70C, 50K hr, w/ LED Dr. | 8.4 in | 800 × 600 | 350 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 203 × 142.5 × 5.7 | a-Si | Built in | 170.4 x 127.8 | 20 ms | 60/70/70/70 | 500:1 | Not included | |
| P0840SVN1ME00Tianma P Series8.4" SVGA, Entry, RGB, 350 nits, -20+70C, 30K hr, w/o LED Dr. | 8.4 in | 800 × 600 | 350 nits | RGB | −20 to 70 °C | 4:3 | TN | 189.75 × 149.4 × 4.8 | a-Si | External | 170.4 x 127.8 | 20 ms | 60/80/80/80 | 500:1 | Not included | |
| P0840VGF1MA00Tianma P Series8.4" VGA, SFT, Advanced, RGB, 900nit, -30+80C, 70K hr, w/o LED Dr. | 8.4 in | 640 × 480 | 900 nits | RGB | −30 to 80 °C | 4:3 | SFT | 200 × 152 × 8.8 | a-Si | External | 170.88 x 128.16 | 30 ms | 88/88/88/88 | 1000:1 | Not included | |
| P0840VGF1MA01Tianma P Series8.4" VGA, SFT, Advanced, RGB, 800nit, -20 to +70°C, 70K hr, w/o LED Dr. | 8.4 in | 640 × 480 | 800 nits | RGB | −20 to 70 °C | 4:3 | SFT | 200 × 152 × 8.8 | a-Si | External | 170.88 x 128.16 | 30 ms | 88/88/88/88 | 1000:1 | Not included | |
| P0840VGF1MB00Tianma P Series8.4" VGA, SFT, Basic, RGB, 500nit, -30+80C, 70K hr, w/o LED Dr. | 8.4 in | 640 × 480 | 500 nits | RGB | −30 to 80 °C | 4:3 | SFT | 200 × 152 × 8.8 | a-Si | External | 170.88 x 128.16 | 30 ms | 88/88/88/88 | 1000:1 | Not included | |
| P0840XGF1MA00Tianma P Series8.4" XGA, Advanced, LVDS, SFT, 1000 nits, | 8.4 in | 1024 × 768 | 1,000 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 199.5 × 149 × 9.7 | a-Si | External | 170.496 x 127.872 | 25 ms | 88/88/88/88 | 1000:1 | Not included | |
| P0840XGF1MB00Tianma P Series8.4" XGA, Basic, LVDS, SFT, 600 nits | 8.4 in | 1024 × 768 | 600 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 199.5 × 149 × 9.7 | a-Si | Built in | 170.496 x 127.872 | 25 ms | 88/88/88/88 | 1000:1 | Not included | |
| P1010WSF1MB00Tianma P Series10.1" WSVGA, Basic, SFT, RGB, 450nit -20+70C with LED Dr | 10.1 in | 1024 × 600 | 450 nits | RGB | −20 to 70 °C | 17:10 | SFT | 235 × 143 × 4.9 | a-Si | Built in | 222.72 x 125.28 | 30 ms | 85/85/85/85 | 1000:1 | Not listed | |
| P1010WSF1MB01Tianma P Series10.1 in, 1024 x 600, SFT. | 10.1 in | 1024 × 600 | 450 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 235.0 × 143.0 × 4.9 | a-Si | Built in | 222.72 x 125.28 | 30 ms | 88/88/88/88 | 1000:1 | Not listed | |
| P1010WSF1ME01Tianma P Series10.1 in, 1024 x 600, SFT. | 10.1 in | 1024 × 600 | 350 nits | RGB | −20 to 70 °C | 5:3 | SFT | 235.0 × 143.0 × 5.3 | a-Si | External | 222.72 x 125.28 | Not listed | Not listed | Not listed | Not included | |
| P1010WSF2QE01Tianma P Series10.1 in, 1024 x 600, SFT. | 10.1 in | 1024 × 600 | 400 nits | RGB | −20 to 70 °C | 5:3 | SFT | 234.2 × 142.2 × 5 | a-Si | External | 222.72 x 125.28 | 30 ms | 88/88/88/88 | 1300:1 | Not listed | |
| P1010WSN1MA00Tianma P Series10.1" WSVGA, Advanced, RGB, 920 nits -20+70C w/o LED Dr. | 10.1 in | 1024 × 600 | 920 nits | RGB | −20 to 70 °C | 5:3 | TN | 235.00 × 143.00 × 5.6 | a-Si | External | 222.72 x 125.28 | 16 ms | 75/80/80/80 | 500:1 | Not included · Factory PCAP optional | |
| P1010WSN1ME00Tianma P Series10.1" WSVGA, Entry, LVDS, 420 nits -20+70C w/ LED Dr. | 10.1 in | 1024 × 600 | 420 nits | LVDS | −20 to 70 °C | 5:3 | TN | 235.00 × 143.00 × 4.9 | a-Si | Built in | 222.72 x 125.28 | 16 ms | 75/80/80/80 | 800:1 | Not included · Factory PCAP optional | |
| P1010WSN1ME01Tianma P Series10.1" WSVGA, Entry, RGB, 350 nits -20+70C w/o LED Dr. | 10.1 in | 1024 × 600 | 350 nits | RGB | −20 to 70 °C | 5:3 | TN | 235.00 × 143.00 × 5.0 | a-Si | External | 222.72 x 125.28 | 16 ms | 75/80/80/80 | 500:1 | Not included · Factory PCAP optional | |
| P1010WUF1MB00Tianma P Series10.1 in, 1920 x 1200, SFT. | 10.1 in | 1920 × 1200 | 1,000 nits | eDP | −20 to 70 °C | 16:10 | SFT | 228.18 × 148.88 × 3.6 | a-Si | Built in | 216.81 x 135.5 | 35 ms | 89/89/89/89 | 1000:1 | Not included | |
| P1010WXF1MA01Tianma P Series10.1" WXGA, Advanced, SFT, LVDS, 1000nit, 50Khr, -30 +80, with LED Dr | 10.1 in | 1280 × 800 | 1,000 nits | LVDS | −30 to 80 °C | 16:10 | SFT | 229.8 × 149.9 × 9.11 | a-Si | Built in | 216.96 x 135.60 | 25 ms | 88/88/88/88 | 700:1 | Not included · Factory PCAP optional | |
| P1010WXF1MB10Tianma P Series10.1" WXGA, Basic, SFT, LVDS, 500 nits -20+70C with LED Dr. | 10.1 in | 1280 × 800 | 500 nits | LVDS | −20 to 70 °C | 16:10 | SFT | 231.22 × 150.60 × 4.40 | a-Si | Built in | 216.96 x 135.60 | 25 ms | 88/88/88/88 | 800:1 | Not included · Factory PCAP optional | |
| P1010WXF1ME21Tianma P Series10.1" WXGA, Entry, SFT, LVDS, 400 nits -10+50C, 30K hr., w/o LED Dr. | 10.1 in | 1280 × 800 | 400 nits | LVDS | −10 to 50 °C | 16:10 | SFT | 229.46 × 149.1 × 5.0 | a-Si | External | 216.96 x 135.60 | 25 ms | 85/85/85/85 | 800:1 | Not included · Factory PCAP optional | |
| P1010WXF1VA00Tianma P Series10.1" WXGA, Advanced, LVDS, SFT, 1200nit, -20+70C, PCAP, USB, multi-touch | 10.1 in | 1280 × 800 | 1,200 nits | LVDS | −20 to 70 °C | 16:10 | SFT | 229.80 x 149.0 x 6.2 (LCM) | a-Si | Built in | 216.96 x 135.60 | 20 ms | 89/89/89/89 | 1200:1 | PCAP included | |
| P1010WXF2MA01Tianma P Series10.1 in, 1280 x 800, SFT. | 10.1 in | 1280 × 800 | 1,000 nits | LVDS | −30 to 80 °C | 16:10 | SFT | 229.8 × 149 × 6.2 | a-Si | Built in | 216.96 x 135.60 | 35 ms | 89/89/89/89 | 1200:1 | Not listed | |
| P1010WXF2ME30Tianma P Series10.1" WXGA, Entry, SFT, LVDS, 400 nits -20 to +70°C, 30K hr., with LED Dr | 10.1 in | 1280 × 800 | 400 nits | LVDS | −20 to 70 °C | 16:10 | SFT | 224.8 × 147.92 × 3.0 | a-Si | Built in | 216.96 x 135.60 | 35 ms | 88/88/88/88 | 1200:1 | Not confirmed · Factory PCAP optional | |
| P1040SVF1MB00Tianma P Series10.4” SVGA, Basic, LVDS, SFT, 350nits, with LED DR | 10.4 in | 800 × 600 | 350 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 236.0 × 176.9 × 6.02 | a-Si | Built in | 211.20 x 158.40 | 35 ms | 88/88/88/88 | 1200:1 | Not confirmed · Factory PCAP optional | |
| P1040SVF1MB10Tianma P Series10.4 in, 800 x 600, SFT. | 10.4 in | 800 × 600 | 500 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 243 × 179.4 × 8 | a-Si | Built in | 211.20 x 158.40 | 35 ms | 89/89/89/89 | 1200:1 | Not listed | |
| P1040SVF1ME00Tianma P Series10.4” SVGA, Entry, LVDS, SFT, 400nits, W/out LED DR | 10.4 in | 800 × 600 | 400 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 236.00 × 176.90 × 5.60 | a-Si | External | 211.20 x 158.40 | 25 ms | 88/88/88/88 | 800:1 | Not included · Factory PCAP optional | |
| P1040SVN1ME10Tianma P Series10.4" SVGA, Entry, RBG, 350 nits, -20+70C w/o LED Dr. | 10.4 in | 800 × 600 | 350 nits | RGB | −20 to 70 °C | 4:3 | TN | 228.40 × 175.40 × 6.20 | a-Si | External | ` | 25 ms | 60/70/70/70 | 500:1 | Not included · Factory PCAP optional | |
| P1040VGF1MA00Tianma P Series10.4" VGA, Advanced, SFT, RGB, 900nit, 70K hr, -30+80C w/o LED Dr | 10.4 in | 640 × 480 | 900 nits | RGB | −30 to 80 °C | 4:3 | SFT | 243 × 185.1 × 11 | a-Si | External | 211.2 x 158.4 | 25 ms | 88/88/88/88 | 1000:1 | Not confirmed · Factory PCAP optional | |
| P1040VGF1MB00Tianma P Series10.4" VGA, Basic, SFT, RGB, 450nit, 70K hr, -30+80C w/o LED Dr | 10.4 in | 640 × 480 | 450 nits | RGB | −30 to 80 °C | 4:3 | SFT | 243 × 185.1 × 11 | a-Si | External | 211.2 x 158.4 | 25 ms | 88/88/88/88 | 1000:1 | Not confirmed · Factory PCAP optional | |
| P1040VGF1MB01Tianma P Series10.4" VGA, Basic, SFT, RGB, 450nit, 70K hr, -30+80C w/o LED Dr | 10.4 in | 640 × 480 | 450 nits | RGB | −30 to 80 °C | 4:3 | SFT | 243 × 185.1 × 11 | a-Si | External | 211.2 x 158.4 | 25 ms | 88/88/88/88 | 1000:1 | Not confirmed · Factory PCAP optional | |
| P1040XGF1MA00Tianma P Series10.4" XGA, Advanced, SFT, LVDS, 1300nit, -30 +80, w/o LED Dr | 10.4 in | 1024 × 768 | 1,300 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 230 × 180.2 × 9.5 | a-Si | External | 210.432 x 157.824 | 35 ms | 85/85/85/85 | 1000:1 | Not included · Factory PCAP optional | |
| P1040XGF1MB01Tianma P Series10.4" XGA, Basic, SFT, LVDS, 500nit, 50K hr, -20+70C with LED Dr | 10.4 in | 1024 × 768 | 500 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 230.0 × 175.8 × 5.7 | a-Si | Built in | 210.432 x 157.824 | 35 ms | 85/85/85/85 | 1200:1 | Not included · Factory PCAP optional | |
| P1040XGF2MB00Tianma P Series10.4 in, 1024 x 768, SFT. | 10.4 in | 1024 × 768 | 350 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 236.0 × 176.9 × 5.7 | a-Si | Not listed | Not listed | Not listed | Not listed | Not listed | Not included | |
| P1160FHF1MA00Tianma P Series11.6" FHD, Adv, LVDS, SFT, 1600 nits, -20+80C, 50K hr, w/o LED Dr | 11.6 in | 1920 × 1080 | 1,600 nits | LVDS | −20 to 80 °C | 16:9 | SFT | 273.50 × 166.50 × 7.80 | a-Si | External | 256.32 x 144.18 | 25 ms | 88/88/88/88 | 900:1 | Not included · Factory PCAP optional | |
| P1160FHF1MA01Tianma P Series11.6" FHD, Adv, LVDS, SFT, 1000 nits, -20+70C, 50K hr, w/o LED Dr | 11.6 in | 1920 × 1080 | 1,000 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 273.50 × 166.50 × 7.80 | a-Si | External | 256.32 x 144.18 | 25 ms | 88/88/88/88 | 900:1 | Not included · Factory PCAP optional | |
| P1210SVF1MB00Tianma P Series12.1" SVGA, SFT, Basic, LVDS, 500 nits, -30+80C, with LED Dr. | 12.1 in | 800 × 600 | 500 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 279.00 × 209.00 × 9.00 | a-Si | Built in | 246.0 x 184.5 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1210SVF1ME00Tianma P Series12.1" SVGA, SFT, Entry, LVDS, 350 nits, -20+70C, with LED Dr. | 12.1 in | 800 × 600 | 350 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 279 × 209 × 9 | a-Si | Built in | 246 x 184.5 | 25 ms | 88/88/88/88 | 1000:1 | Not confirmed · Factory PCAP optional | |
| P1210WXF1MB00Tianma P Series12.1" WXGA, Basic, LVDS, SFT, 450 nits, -20+70C, 50K hr, with LED Dr | 12.1 in | 1280 × 768 | 450 nits | LVDS | −20 to 70 °C | 5:3 | SFT | 278.0 × 184.0 × 9.9 | a-Si | Built in | 261.1 x 163.2 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1210WXF2MA00Tianma P Series12.1" WXGA, Advanced, LVDS, SFT, 1500nit, -20+80C, 50K hr, w/o LED Dr | 12.1 in | 1280 × 800 | 1,500 nits | LVDS | −20 to 80 °C | 16:10 | SFT | 281.78 × 183.17 × 9.46 | a-Si | External | 216.12 x 163.20 | 20 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1210WXF2MA01Tianma P Series12.1" WXGA, Advanced, LVDS, SFT, 1100nit, -30+80C, 50K hr, w/o LED Dr | 12.1 in | 1280 × 800 | 1,100 nits | LVDS | −30 to 80 °C | 16:10 | SFT | 277.7 × 180.6 × 8.7 | a-Si | External | 261.12 x 163.2 | 25 ms | 88/88/88/88 | 1000:1 | Not confirmed · Factory PCAP optional | |
| P1210WXF3MB00Tianma P Series12.1 in, 1280 x 800, SFT. | 12.1 in | 1280 × 800 | 400 nits | LVDS | −20 to 70 °C | 16:10 | SFT | 278.0 × 184.0 × 9.74 | a-Si | External | 261.12 x 163.2 | 30 ms | 88/88/88/88 | 1700:1 | Not included · Factory PCAP optional | |
| P1210XGF1MA00Tianma P Series12.1" XGA, Advanced, SFT, LVDS, 1300 nit, -20 to +70°C, 100K hr w/o LED Dr | 12.1 in | 1024 × 768 | 1,300 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 260.5 × 203 × 9.5 | a-Si | External | 245.76 x 184.32 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1210XGF1MA01Tianma P Series12.1" XGA, Advanced, SFT, LVDS, 800 nit, -30+80, 70K hr with LED Dr | 12.1 in | 1024 × 768 | 800 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 260.5 × 203 × 9.5 | a-Si | Built in | 245.76 x 184.32 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1210XGF1MB00Tianma P Series12.1" XGA, Basic, SFT, LVDS, 500nit, -30+80C, 50K hr. | 12.1 in | 1024 × 768 | 500 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 260.5 × 203.0 × 9.5 | a-Si | Built in | 245.76 x 184.32 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1210XGF1MB10Tianma P Series12.1" XGA, Basic, SFT, LVDS, 500nit, -30 to +70°C, 50K hr. | 12.1 in | 1024 × 768 | 500 nits | LVDS | −30 to 70 °C | 4:3 | SFT | 260.5 × 204.0 × 8.4 | a-Si | Built in | 245.76 x 184.32 | 25 ms | 88/88/88/88 | 1000:1 | Not confirmed · Factory PCAP optional | |
| P1210XGN1MB00Tianma P Series12.1" XGA, Basic, TN, LVDS, 450 nits, -20+70C, with LED Dr. | 12.1 in | 1024 × 768 | 450 nits | LVDS | −20 to 70 °C | 4:3 | TN | 279.0 × 209.0 × 8.6 | a-Si | Built in | 245.76 x 184.32 | 8 ms | 88/88/88/88 | 700:1 | Not included · Factory PCAP optional | |
| P1230FHF1MA00Tianma P Series12.3" HD+ (1920 x 720), Advanced, LVDS, SFT, 1400nit, 30Khr, -30+85, with LED Dr | 12.3 in | 1920 × 720 | 1,400 nits | LVDS | −30 to 85 °C | 8:3 | SFT | 305.92 × 123.62 × 7 | a-Si | Built in | 292.32 x 109.62 | 20ms (max) | 88/88/88/88 | 1100:1 | Not included | |
| P1330FHF1MA00Tianma P Series13.3" FHD, Advanced, LVDS, SFT, 1000 nits, -20+70C, w/o LED Dr. | 13.3 in | 1920 × 1080 | 1,000 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 308.00 × 188.00 × 10.00 | a-Si | External | 293.76 x 165.24 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1330FHF1MB10Tianma P Series13.3" FHD, Basic, SFT, LVDS, 600 nit, -20+70C, 50K hr, with LED Dr. | 13.3 in | 1920 × 1080 | 600 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 308 × 186 × 9.2 | a-Si | Built in | 293.76 x 165.24 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1330FHF1ME10Tianma P Series13.3" FHD,Entry, eDP, 350 nits | 13.3 in | 1920 × 1080 | 350 nits | eDP | −20 to 70 °C | 16:9 | SFT | 305.35 × 178.56 × 3.7 | a-Si | Built in | 293.76 x 165.24 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1330FHF2MB00Tianma P Series13.3 in, 1920 x 1080, SFT. | 13.3 in | 1920 × 1080 | 350 nits | eDP | 0 to 50 °C | 16:9 | SFT | 300.26 × 187.74 × 2.4 | a-Si | Built in | 293.76 x 165.24 | 30 ms | 89/89/89/89 | 1800:1 | Not listed | |
| P1330FHF2MB01Tianma P Series13.3 in, 1920 x 1080, SFT. | 13.3 in | 1920 × 1080 | 500 nits | eDP | −20 to 70 °C | 16:9 | SFT | 309.7 × 184.1 × 10.1 | a-Si | Built in | 293.76 x 165.24 | 30 ms | 89/89/89/89 | 1500:1 | Not listed | |
| P1330FHF2MB10Tianma P Series13.3 in, 1920 x 1080, SFT. | 13.3 in | 1920 × 1080 | 500 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 309.7 × 184.1 × 10.1 | a-Si | Built in | 293.76 x 165.24 | 30 ms | 89/89/89/89 | 1500:1 | Not listed | |
| P1330UHF2MB10Tianma P Series13.3 in, 3840 x 2160, SFT. | 13.3 in | 3840 × 2160 | 600 nits | eDP | 0 to 50 °C | 16:9 | SFT | 299.46 × 176.59 × 3.38 | a-Si | Built in | 293.760 x 165.240 | 25 ms | 88/88/88/88 | 1000000:1 | Not included | |
| P1400FHF1MA00Tianma P Series14" FHD, Advanced, LVDS, SFT, 800nit, 50Khr, -20+70C, with LED Dr | 14 in | 1920 × 1080 | 800 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 315.31 × 184.49 × 3.11 | a-Si | Built in | 309.312 x 173.988 | 35 ms | 88/88/88/88 | 2200:1 | Not confirmed · Factory PCAP optional | |
| P1500XGF1MB00Tianma P Series15.0" XGA, Basic, LVDS, SFT 300 nits, -20+70C, with LED Dr. | 15 in | 1024 × 768 | 300 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 326.5 × 253.5 × 11.8 | a-Si | Built in | 304.128 x 228.096 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1500XGF2MA01Tianma P Series15 in, 1024 x 768, SFT. | 15 in | 1024 × 768 | 1,000 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 326.5 × 253.5 × 9 | a-Si | Built in | 304.128 x 228.096 | 25 ms | 88/88/88/88 | 1200:1 | Not listed | |
| P1500XGF2MB01Tianma P Series15.0" XGA, Basic, LVDS, SFT 400 nits, -20+70C, with LED Dr. | 15 in | 1024 × 768 | 400 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 326.5 × 253.5 × 11.8 | a-Si | Built in | 304.128 x 228.096 | 25 ms | 89/89/89/89 | 1300:1 | Not included · Factory PCAP optional | |
| P1500XGF2MB02Tianma P Series15 in, 1024 x 768, SFT. | 15 in | 1024 × 768 | 500 nits | LVDS | −30 to 80 °C | 4:3 | SFT | 326.5 × 253.5 × 11.8 | a-Si | Built in | 304.128 x 228.096 | 25 ms | 89/89/89/89 | 1300:1 | Not included · Factory PCAP optional | |
| P1500XGF2MB03Tianma P Series15.0" XGA, Basic, LVDS, SFT 500 nits, -20+70C, with LED Dr. | 15 in | 1024 × 768 | 500 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 326.5 × 253.5 × 11.8 | a-Si | Built in | 304.128 x 228.096 | 25 ms | 89/89/89/89 | 1500:1 | Not included · Factory PCAP optional | |
| P1500XGF2MB10Tianma P Series15" XGA, Basic, LVDS, SFT, 500nit, 50Khr, -20+70C, with LED Dr | 15 in | 1024 × 768 | 500 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 326.5 × 253.5 × 9 | a-Si | Built in | 304.128 x 228.096 | 30 ms | 88/88/88/88 | 1200:1 | Not confirmed · Factory PCAP optional | |
| P1500XGF3MA00Tianma P Series15.0" XGA, Advanced, SFT, LVDS, 1700 nit, -30 to +70°C, w/o LED Dr. | 15 in | 1024 × 768 | 1,700 nits | LVDS | −30 to 70 °C | 4:3 | SFT | 326.5 × 253.5 × 9 | a-Si | Built in | 304.128 x 228.096 | 25 ms | 89/89/89/89 | 1000:1 | Not included · Factory PCAP optional | |

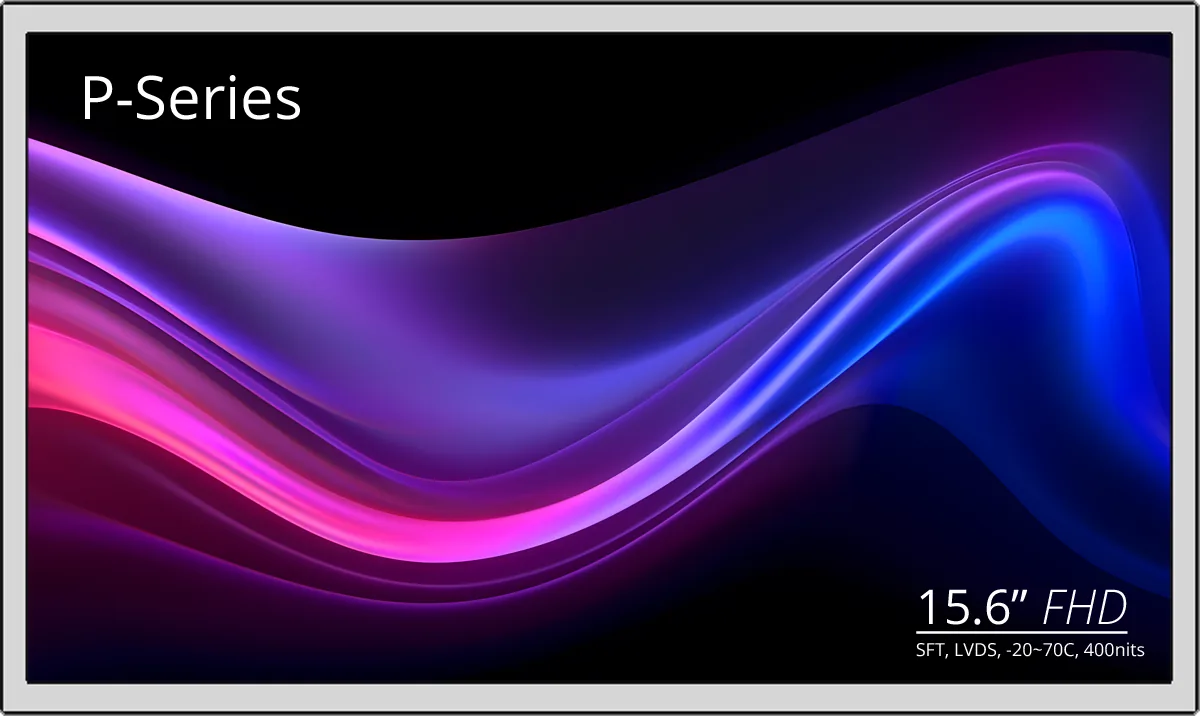

| P1560FHF1MB00Tianma P Series15.6" FHD, Basic, LVDS, SFT, 400 nits, -20 +70C, w/ LED Dr. | 15.6 in | 1920 × 1080 | 400 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 363.8 × 215.9 × 6.3 | a-Si | Built in | 344.16 x 193.59 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1560FHF2MA00Tianma P Series15.6" FHD Advanced LVDS, SFT, 1000 nits | 15.6 in | 1920 × 1080 | 1,000 nits | LVDS | −30 to 85 °C | 16:9 | SFT | 363.8 × 215.9 × 6.3 | a-Si | Built in | 344.16 x 193.59 | 35 ms | 88/88/88/88 | 1500:1 | Not included · Factory PCAP optional | |
| P1560FHF2MB00Tianma P Series15.6" FHD, Basic, LVDS, SFT, 350 nits, -10 +60C, w/ LED Dr. | 15.6 in | 1920 × 1080 | 350 nits | LVDS | −10 to 60 °C | 16:9 | SFT | 350.66 × 205.24 × 3.0 | a-Si | Built in | 344.16 x 193.59 | 35 ms | 88/88/88/88 | 2000:1 | Not included · Factory PCAP optional | |
| P1560FHF3MB00Tianma P Series15.6" FHD, Basic, eDP, SFT, 500 nits, -10 to +70°C, w/ LED Dr. | 15.6 in | 1920 × 1080 | 500 nits | eDP | −10 to 70 °C | 16:9 | SFT | 351.84 × 208.38 × 6.0 | a-Si | Built in | 344.16 x 193.59 | 25 ms | 89/89/89/89 | 1500:1 | Not confirmed · Factory PCAP optional | |
| P1560FHF3MB02Tianma P Series15.6 in, 1920 x 1080, SFT. | 15.6 in | 1920 × 1080 | 500 nits | LVDS | −10 to 70 °C | 16:9 | SFT | 351.84 × 208.38 × 6.0 | a-Si | Built in | 344.16 x 193.59 | 25 ms | 89/89/89/89 | 1500:1 | Not listed | |
| P1560FHF3MB03Tianma P Series15.6 in, 1920 x 1080, SFT. | 15.6 in | 1920 × 1080 | 500 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 363.8 × 215.91 × 9.1 | a-Si | Built in | 344.16 x 193.59 | 25 ms | 89/89/89/89 | 1500:1 | Not listed | |
| P1560FHF3MB04Tianma P Series15.6 in, 1920 x 1080, SFT. | 15.6 in | 1920 × 1080 | 500 nits | eDP | −20 to 70 °C | 16:9 | SFT | 363.8 × 215.9 × 9.6 | a-Si | Built in | 344.16 x 193.59 | 30 ms | 89/89/89/89 | 1500:1 | Not listed | |
| P1560FHF4MB00Tianma P Series15.6 in, 1920 x 1080, SFT. | 15.6 in | 1920 × 1080 | 350 nits | eDP | 0 to 60 °C | 16:9 | SFT | 350.66 × 215.30 × 3.3 | a-Si | Built in | 344.16 x 193.59 | 25 ms | 89/89/89/89 | 1700:1 | Not listed | |
| P1730FHF1MA10Tianma P Series17.3" FHD, Asdvanced, SFT, eDP, 1200nit, 50K hr, -30 +80C, w/o LED Dr | 17.3 in | 1920 × 1080 | 1,200 nits | eDP | −30 to 80 °C | 16:9 | SFT | 395.89 × 232.81 × 6.8 | a-Si | External | 381.89 x 214.81 | 25 ms | 88/88/88/88 | 1500:1 | Not included · Factory PCAP optional | |
| P1730FHF1MB00Tianma P Series17.3" FHD, Basic, SFT, LVDS, 500nit, 50K hr, -20 +60C, with LED Dr | 17.3 in | 1920 × 1080 | 500 nits | LVDS | −20 to 60 °C | 16:9 | SFT | 388.888 × 225.812 × 4 | a-Si | Built in | 381.888 x 214.812 | 35 ms | 88/88/88/88 | 1700:1 | Not included · Factory PCAP optional | |
| P1730FHF1MB11Tianma P Series17.3 in, 1920 x 1080, SFT. | 17.3 in | 1920 × 1080 | 500 nits | eDP | −20 to 70 °C | 16:9 | SFT | 397.1 × 234.0 × 11.4 | a-Si | Built in | 381.888 x 214.812 | 35 ms | 88/88/88/88 | 1700:1 | Not included | |
| P1850FHF1MB01Tianma P Series18.5" FHD, Basic, LVDS, SFT, 400 nits, -20+70C w/ LED Dr | 18.5 in | 1920 × 1080 | 400 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 430.4 × 254.6 × 13.5 | a-Si | Built in | 408.96 x 230.04 | 25 ms | 89/89/89/89 | 1000:1 | Not included · Factory PCAP optional | |
| P1850FHF1MB02Tianma P Series18.5" FHD, Basic, eDP, SFT, 400 nits, -20 ~ +70 w/ LED Dr | 18.5 in | 1920 × 1080 | 400 nits | eDP | −20 to 70 °C | 16:9 | SFT | 430.4 × 254.6 × 13.5 | a-Si | Built in | 408.96 x 230.04 | 25 ms | 88/88/88/88 | 1000:1 | Not included · Factory PCAP optional | |
| P1850FHF2MB00Tianma P Series18.5 in, 1920 x 1080, SFT. | 18.5 in | 1920 × 1080 | 500 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 430.4 × 254.6 × 12.7 | a-Si | Built in | 408.96 x 230.04 | 25 ms | 88/88/88/88 | 1500:1 | Not listed | |
| P1850UHF1MA00Tianma P Series18.5 in, 3840 x 2160, SFT. | 18.5 in | 3840 × 2160 | 1,300 nits | eDP | −20 to 70 °C | 16:9 | SFT | 430.96 × 252.04 × 10.0 | a-Si | Built in | 408.96 x 230.04 | 35 ms | 88/88/88/88 | 1000:1 | Not included | |
| P1900FHF1MB00Tianma P Series19 in, 1920 x 1536, SFT. | 19 in | 1920 × 1536 | 500 nits | LVDS | −20 to 70 °C | 4:3 | SFT | 396 × 324 × 12.0 | a-Si | Built in | 376.3584 x 301.0867 | 35 ms | 89/89/89/89 | 1300:1 | Not included | |
| P1900SXF2MB00Tianma P Series19.0" SXGA, Basic, LVDS, SFT 500 nit, -20+70C, 50K hr, with LED Dr | 19 in | 1280 × 1024 | 500 nits | LVDS | −20 to 70 °C | 5:4 | SFT | 396 × 324 × 12.88 | a-Si | Built in | 376.32 x 301.06 | 25 ms | 88/88/88/88 | 1500:1 | Not listed | |
| P2130QSF1MA01Tianma P Series21.3" 5MM (2048x2560), Advanced, LVDS, SFT, 3200nit, CR 2400:1, 10-bit | 21.3 in | 2048 × 2560 | 3,200 nits | LVDS | 0 to 60 °C | 4:5 | SFT | 354.9 × 442.3 × 20.9 | a-Si | Built in | 337.92 x 422.40 | 25 ms | 88/88/88/88 | 2500:1 | Not included | |
| P2130QSF2MA01Tianma P Series21.3" 5MC (2048x2560), Advanced, LVDS, SFT, 1250nit, CR 2200:1, 10-bit | 21.3 in | 2048 × 2560 | 1,250 nits | LVDS | 0 to 60 °C | 4:5 | SFT | 354.9 × 442.3 × 20.9 | a-Si | Built in | 337.92 x 422.40 | 25 ms | 88/88/88/88 | 2000:1 | Not included | |
| P2130QXF1MA00Tianma P Series21.3" 3MC (1536x2048), Advanced, LVDS, SFT, 900nit, CR 2000:1, 10-bit | 21.3 in | 1536 × 2048 | 900 nits | LVDS | 0 to 60 °C | 3:4 | SFT | 336.1 × 453.0 × 10.57 | a-Si | Built in | 324.864 x 433.152 | 25 ms | 89/89/89/89 | 2000:1 | Not included | |
| P2130SQF1MA00Tianma P Series21.3 in, 2100 x 2800, SFT. | 21.3 in | 2100 × 2800 | 1,400 nits | eDP | 0 to 50 °C | 3:4 | SFT | 336.1 × 453.0 × 20.6 | a-Si | Built in | 324.45 x 432.60 | 23 ms | 89/89/89/89 | 2500:1 | Not included | |
| P2130UXF1MA10Tianma P Series21.3" 2MC (1200x1600), Advanced, LVDS, SFT, 900nit, CR 2000:1, 72% NTSC | 21.3 in | 1200 × 1600 | 900 nits | LVDS | 0 to 60 °C | 3:4 | SFT | 336.1 × 453.0 × 10.5 | a-Si | Built in | 324.864 x 433.152 | 35 ms | 89/89/89/89 | 2000:1 | Not included | |
| P2150FHF2MB00Tianma P Series21.5 in, 1920 x 1080, SFT. | 21.5 in | 1920 × 1080 | 500 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 495.6 × 292.2 × 12.7 | a-Si | External | 476.06 x 267.79 | 14 ms | 88/88/88/88 | 1500:1 | Not listed | |
| P2150UHF1MA00Tianma P Series21.5 in, 3840 x 2160, SFT. | 21.5 in | 3840 × 2160 | 1,500 nits | eDP | −20 to 70 °C | 16:9 | SFT | 495.20 × 291.90 × 10.0 | a-Si | External | 475.20 x 267.30 | 25 ms | 89/89/89/89 | Not listed | Not included | |
| P2380FHF1MB00Tianma P Series23.8" FHD, Basic, LVDS, SFT, 350nit, -20 +70C, 30K hr, w/o LED Dr | 23.8 in | 1920 × 1080 | 350 nits | LVDS | −20 to 70 °C | 16:9 | SFT | 535 × 313 × 12.2 | a-Si | External | 527.14 x 296.46 | 30 ms | 89/89/89/89 | 1800:1 | Not included | |
| P2380UHF1MA00Tianma P Series23.8" UHD, Advanced, eDP, SFT, 1300nit, 0 +50C, 50K hr, with LED Dr | 23.8 in | 3840 × 2160 | 1,300 nits | eDP | −20 to 70 °C | 16:9 | SFT | 549 × 323.4 × 16.52 | a-Si | External | 527.04 x 296.46 | 35ms (max) | 88/88/88/88 | 1200:1 | Not listed | |
| P2700FHF1MA00Tianma P Series27" FHD, Advanced, LVDS, SFT, 1500 nits, -30 +80C, w/o LED Dr. | 27 in | 1920 × 1080 | 1,500 nits | LVDS | −30 to 80 °C | 16:9 | SFT | 630 × 368 × 25 | a-Si | Built in | 596.16 x 335.34 | 25 ms | 88/88/88/88 | 1000:1 | Not included | |
| P2700UHF2MA00Tianma P Series27 in, 3840 x 2160, SFT. | 27 in | 3840 × 2160 | 1,300 nits | eDP | 0 to 50 °C | 16:9 | SFT | 630.0 × 368.2 × 19.5 | LTPS | Built in | 596.16 x 335.34 | 16 ms | 89/89/89/89 | 1800:1 | Not included | |
| P2700UHF2MA01Tianma P Series27 in, 3840 x 2160, SFT. | 27 in | 3840 × 2160 | 1,000 nits | eDP | 0 to 50 °C | 16:9 | SFT | 630.0 × 368.2 × 19.5 | LTPS | Built in | 596.16 x 335.34 | 20 ms | 89/89/89/89 | 2000:1 | Not included | |
| P2700UHF2MB10Tianma P Series27 in, 3840 x 2160, SFT. | 27 in | 3840 × 2160 | 400 nits | eDP | 0 to 50 °C | 16:9 | SFT | 605.9 × 353.2 × 10.0 | LTPS | External | 596.16 x 335.34 | 25 ms | 89/89/89/89 | 2000:1 | Not included | |
| P3090UHF1MA00Tianma P Series30.9 in, 4200 x 2800, SFT. | 30.9 in | 4200 × 2800 | 1,250 nits | eDP | 0 to 60 °C | 3:2 | SFT | 676.9 × 459.7 × 26.0 | a-Si | Built in | 652.68 x 435.12 | 20 ms | 88/88/88/88 | 1800:1 | Not included | |
No products match these selections. Remove a filter or . Contact us →
Screen size (in)
Minimum must not exceed maximum.
Grade
84 of 118 products list this. The rest won't match when you filter by it.
Resolution
Resolution name
82 of 118 products list this. The rest won't match when you filter by it.
Technology
Display mode
Brightness (nits)
Filters use the listed brightness rating. Check typical, minimum and test conditions in the specifications.
Minimum must not exceed maximum.
Aspect ratio
Interface
LED driver built in
117 of 118 products list this. The rest won't match when you filter by it.
Touch
89 of 118 products list this. The rest won't match when you filter by it.
Operating temperature
Outline dimensions
Active area
116 of 118 products list this. The rest won't match when you filter by it.
Response time
115 of 118 products list this. The rest won't match when you filter by it.
Viewing angle
115 of 118 products list this. The rest won't match when you filter by it.
Contrast ratio
114 of 118 products list this. The rest won't match when you filter by it.
Three tiers, one line.
Basic
harsh and semi-outdoor
- Built for
- Harsh environments
- Brightness
- Standard
- Backlight life
- Up to 50,000 hours
- Temperature
- -20 to +70 °C
- LED driver
- Integrated option
Entry
standard indoor
- Built for
- Indoor equipment
- Design
- Cost-optimized
- Backlight life
- Up to 30,000 hours
- Temperature
- -20 to +70 °C
- LED driver
- Integrated option
Touch and cover glass, from the same factory.
Tianma builds projected capacitive touch for the P Series: wet and glove operation, in-house optical bonding, and cover glass options including anti-glare, anti-reflection, anti-fingerprint, and strengthened glass.
Check each part number for included touch. Edge can help confirm factory touch options and review them against your application and cover-glass requirements. A standard module does not necessarily include touch, an LED driver, or a video controller.
Help with your display design.
Explore the supporting components and integration options for your display.
- Control and computing
- LCD controllersSingle-board computers
- Backlight power
- LED driversTianma panel connections
- Cables and harnesses
- LCD cables
- Touch and cover glass
- Touch options
- Enhancements and integration
- Display enhancementsLCD kits
