Tianma · P Series
P0700WXF1ME00
- Diagonal
- 7 in
- Resolution · WXGA
- 1280 × 800
- Brightness
- 400 nits
- Interface
- LVDS
SFT panel rated for −20 to 70 °C operation.
Authorized Tianma distributor Tianma America Distributor of the Year, 2025
Specifications
Display & optics
- Diagonal size
- 7 in
- Resolution
- 1280 × 800
- Resolution name
- WXGA
- Brightness
- 400 nits
- Contrast ratio
- 800:1
- Display mode
- SFT
- Technology
- a-Si
- Viewing angle
- 88/88/88/88
- Response time
- 40 ms
- Aspect ratio
- 16:10
Integration & physical details
- Interface
- LVDS
- Touch
- Not included · Factory PCAP optional
- LED driver built in
- No
- Backlight lifetime
- 30,000 h
- Operating temperature
- −20 to 70 °C
- Outline dimensions
- 161.0 × 107.0 × 3.35 mm
- Active area
- 149.76 × 93.60 mm
- Grade
- Entry
Description

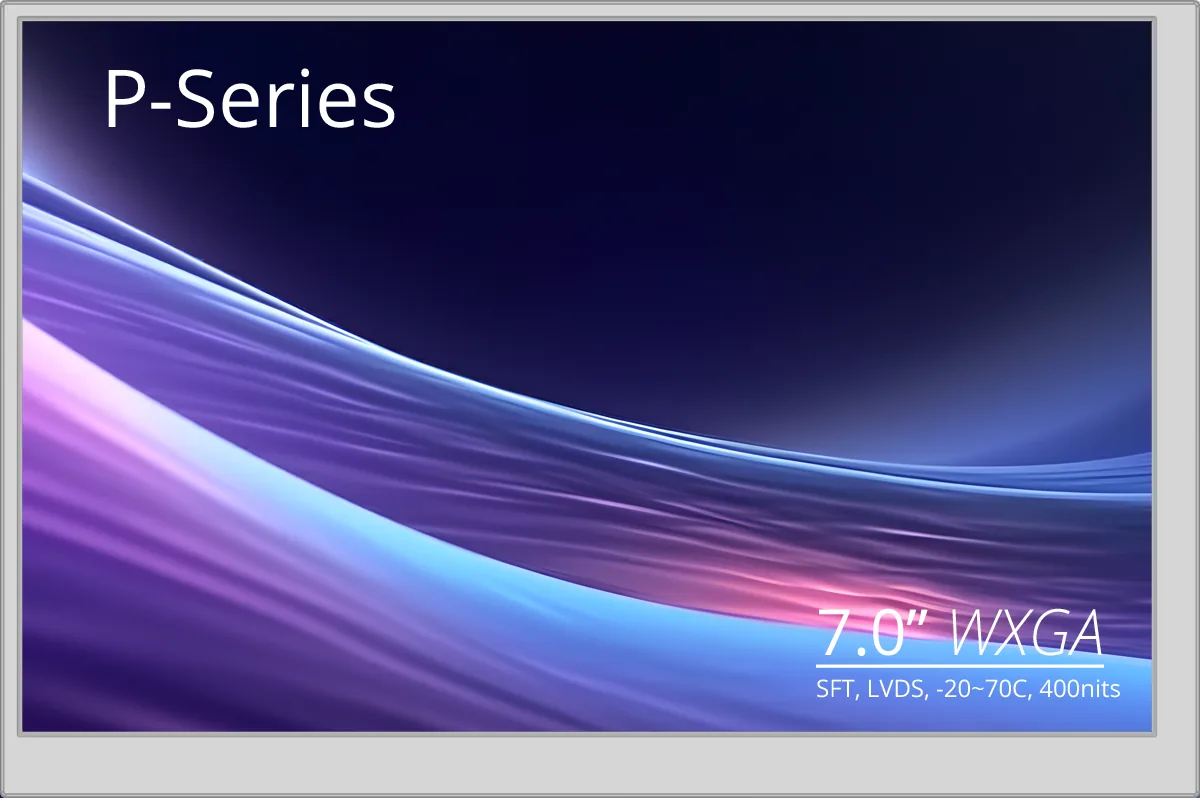

7.0" WXGA, Entry, LVDS, SFT, 400 nits, -20+70C, 30K hr w/o LED Dr
