Tianma · P Series

P2130QXF1MA00

Diagonal
21.3 in
Resolution
1536 × 2048
Brightness
900 nits
Interface
LVDS

SFT panel rated for 0 to 60 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

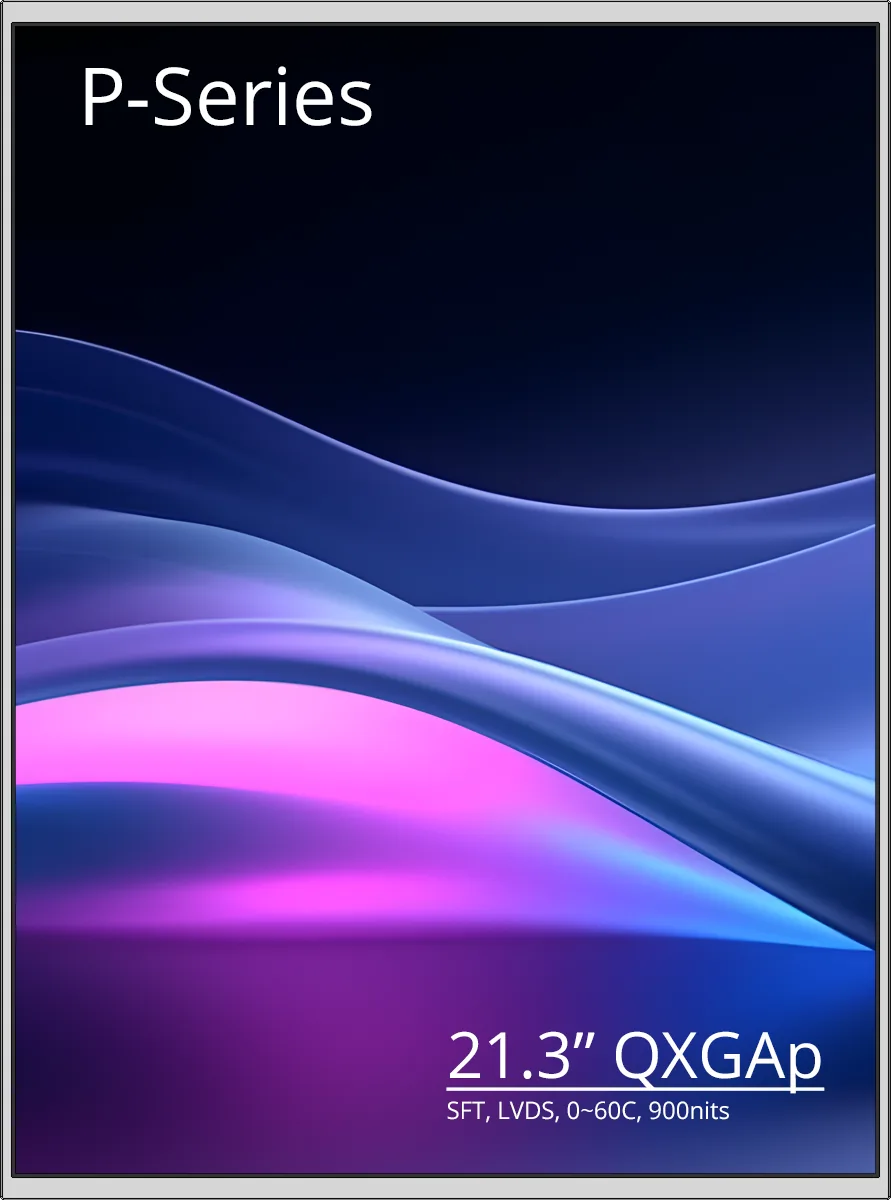

P2130QXF1MA00 product photo

Specifications

Display & optics

Diagonal size
21.3 in
Resolution
1536 × 2048
Brightness
900 nits
Contrast ratio
2000:1
Display mode
SFT
Technology
a-Si
Viewing angle
89/89/89/89
Response time
25 ms
Aspect ratio
3:4

Integration & physical details

Interface
LVDS
Interface detail
LVDS, 4ch, 10bit
Touch
Not included
LED driver built in
Yes
Operating temperature
0 to 60 °C
Outline dimensions
336.1 × 453.0 × 10.57 mm
Active area
324.864 × 433.152 mm
Grade
Advanced

Additional specifications

Color depth
10-bit
Description

21.3" 3MC (1536x2048), Advanced, LVDS, SFT, 900nit, CR 2000:1, 10-bit

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityP2130QXF1MA00

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Edge Electronics · Product summary
Tianma · P2130QXF1MA00 · P Series

https://www.edgeelectronics.com/p/tianma-p2130qxf1ma00/

Confirm specifications for the required revision with Edge or the manufacturer. For documentation, pricing and availability: 800.647.3343.
