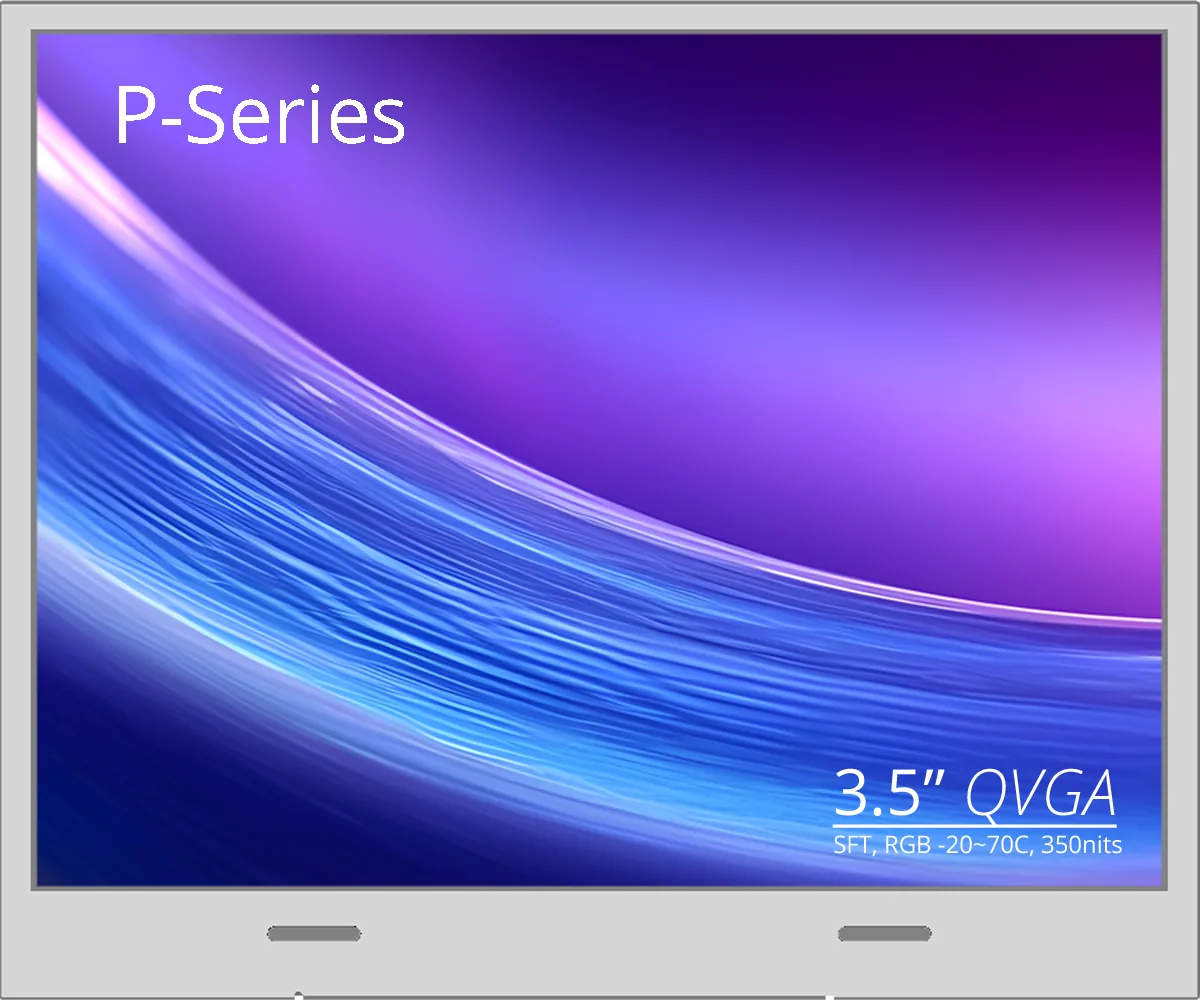

Tianma · P Series
P0350QVF1ME00
- Diagonal
- 3.5 in
- Resolution · QVGA
- 320 × 240
- Brightness
- 350 nits
- Interface
- RGB
SFT panel rated for −20 to 70 °C operation.
Authorized Tianma distributor Tianma America Distributor of the Year, 2025
Specifications
Display & optics
- Diagonal size
- 3.5 in
- Resolution
- 320 × 240
- Resolution name
- QVGA
- Brightness
- 350 nits
- Contrast ratio
- 800:1
- Display mode
- SFT
- Technology
- a-Si
- Viewing angle
- 88/88/88/88
- Response time
- 25 ms
- Aspect ratio
- 4:3
Integration & physical details
- Interface
- RGB
- Touch
- Not included
- LED driver built in
- No
- Backlight lifetime
- 30,000 h
- Operating temperature
- −20 to 70 °C
- Outline dimensions
- 76.90 × 63.90 × 3.15 mm
- Active area
- 70.08 × 52.26 mm
- Grade
- Entry
Description
3.5" QVGA, RGB CMOS, SFT, Entry 350nit, -20+70C, 30K hr, w/o LED Dr
Documents
RequestDatasheet, mechanical drawing and pinoutRequest from us
→ Request pricing and availabilityP0350QVF1ME00
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
