Tianma · P Series

P1040SVF1MB00

Diagonal
10.4 in
Resolution · SVGA
800 × 600
Brightness
350 nits
Interface
LVDS

SFT panel rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

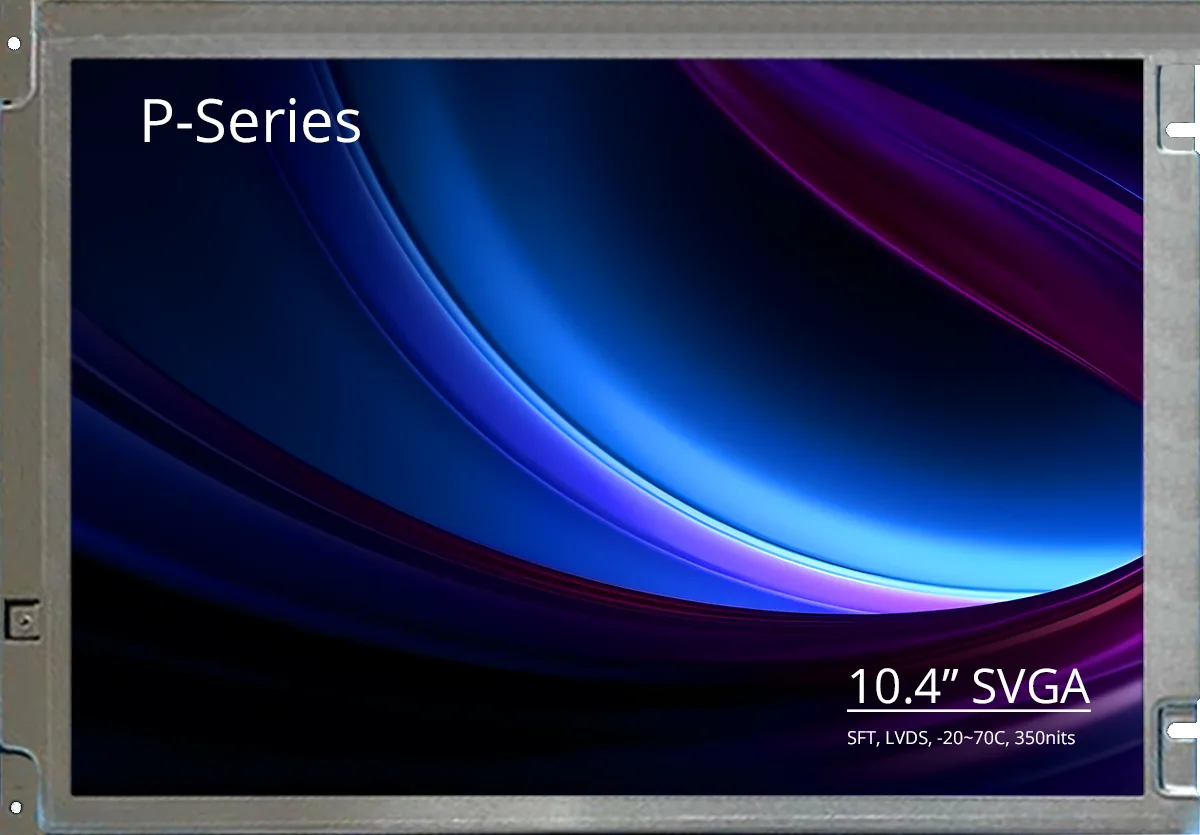

P1040SVF1MB00 product photo

Specifications

Display & optics

Diagonal size
10.4 in
Resolution
800 × 600
Resolution name
SVGA
Brightness
350 nits
Contrast ratio
1200:1
Display mode
SFT
Technology
a-Si
Viewing angle
88/88/88/88
Response time
35 ms
Aspect ratio
4:3

Integration & physical details

Interface
LVDS
Touch
Not confirmed · Factory PCAP optional
LED driver built in
Yes
Operating temperature
−20 to 70 °C
Outline dimensions
236.0 × 176.9 × 6.02 mm
Active area
211.20 × 158.40 mm
Grade
Basic
Description

10.4” SVGA, Basic, LVDS, SFT, 350nits, with LED DR

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityP1040SVF1MB00

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Edge Electronics · Product summary
Tianma · P1040SVF1MB00 · P Series

https://www.edgeelectronics.com/p/tianma-p1040svf1mb00/

Confirm specifications for the required revision with Edge or the manufacturer. For documentation, pricing and availability: 800.647.3343.
