Tianma · P Series

P1730FHF1MA10

Diagonal
17.3 in
Resolution · FHD
1920 × 1080
Brightness
1,200 nits
Interface
eDP

SFT panel rated for −30 to 80 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

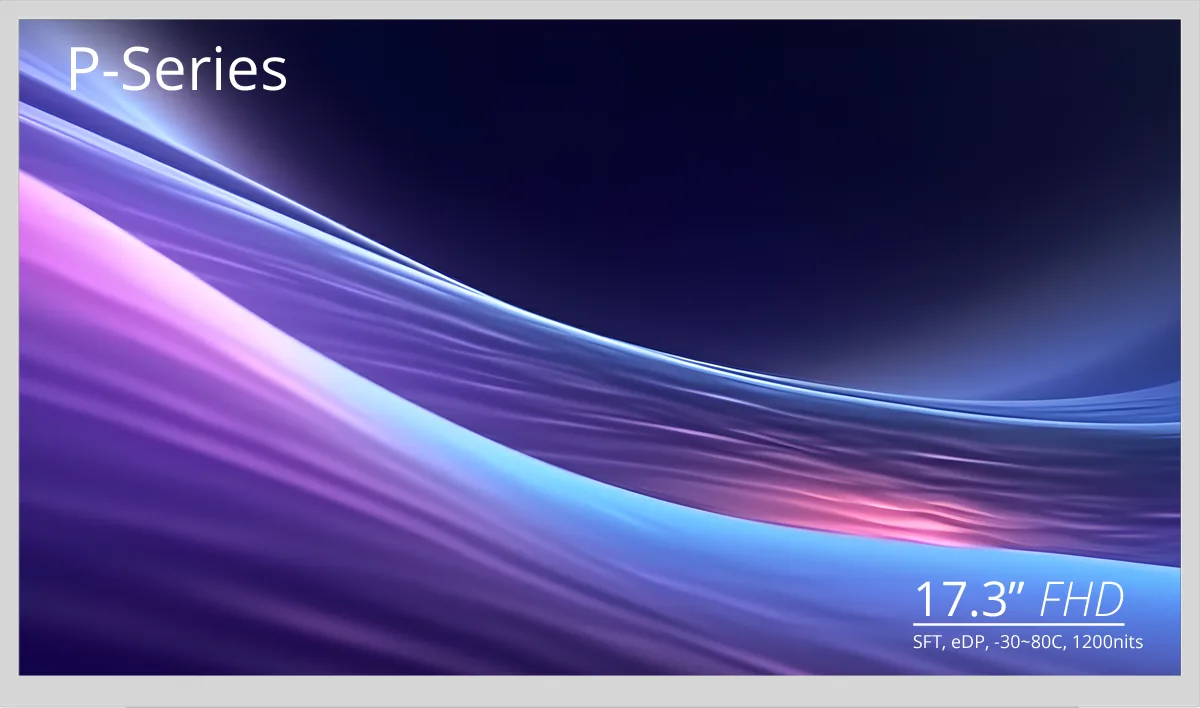

P1730FHF1MA10 product photo

Specifications

Display & optics

Diagonal size
17.3 in
Resolution
1920 × 1080
Resolution name
FHD
Brightness
1,200 nits
Contrast ratio
1500:1
Display mode
SFT
Technology
a-Si
Viewing angle
88/88/88/88
Response time
25 ms
Aspect ratio
16:9

Integration & physical details

Interface
eDP
Touch
Not included · Factory PCAP optional
LED driver built in
No
Backlight lifetime
50,000 h
Operating temperature
−30 to 80 °C
Outline dimensions
395.89 × 232.81 × 6.8 mm
Active area
381.89 × 214.81 mm
Description

17.3" FHD, Asdvanced, SFT, eDP, 1200nit, 50K hr, -30 +80C, w/o LED Dr
