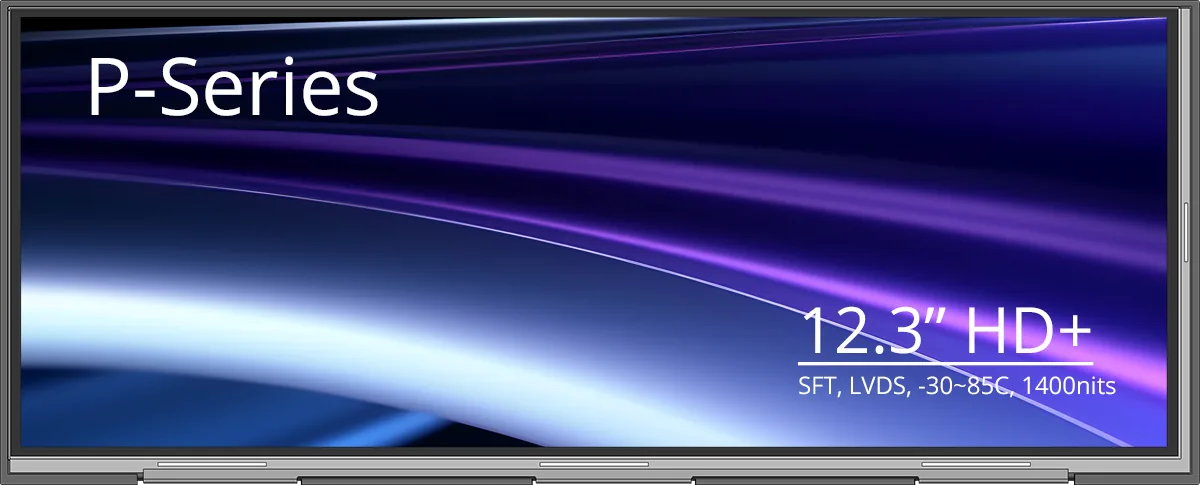

Tianma · P Series
P1230FHF1MA00
- Diagonal
- 12.3 in
- Resolution · HD+
- 1920 × 720
- Brightness
- 1,400 nits
- Interface
- LVDS
SFT panel rated for −30 to 85 °C operation.
Authorized Tianma distributor Tianma America Distributor of the Year, 2025
Specifications
Display & optics
- Diagonal size
- 12.3 in
- Resolution
- 1920 × 720
- Resolution name
- HD+
- Brightness
- 1,400 nits
- Contrast ratio
- 1100:1
- Display mode
- SFT
- Technology
- a-Si
- Viewing angle
- 88/88/88/88
- Response time
- 20ms (max)
- Aspect ratio
- 8:3
Integration & physical details
- Interface
- LVDS
- Interface detail
- LVDS, 2ch
- Touch
- Not included
- LED driver built in
- Yes
- Backlight lifetime
- 30,000 h
- Operating temperature
- −30 to 85 °C
- Outline dimensions
- 305.92 × 123.62 × 7 mm
- Active area
- 292.32 × 109.62 mm
- Grade
- Advanced
Description
12.3" HD+ (1920 x 720), Advanced, LVDS, SFT, 1400nit, 30Khr, -30+85, with LED Dr
Documents
RequestDatasheet, mechanical drawing and pinoutRequest from us
→ Request pricing and availabilityP1230FHF1MA00
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
