Tianma · P Series

P1010WXF1VA00

Diagonal
10.1 in
Resolution · WXGA
1280 × 800
Brightness
1,200 nits
Interface
LVDS

SFT panel with projected capacitive touch, rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

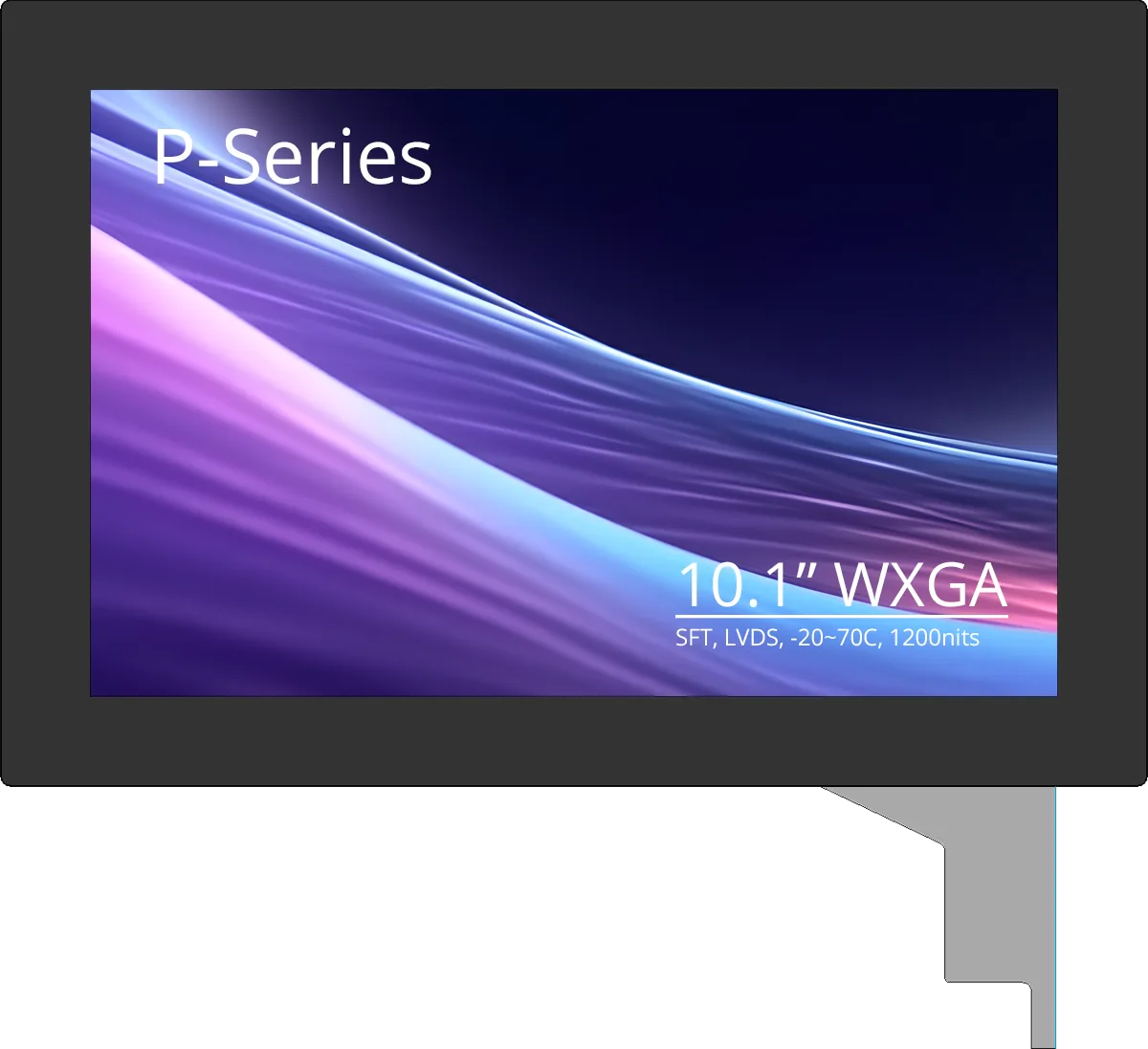

P1010WXF1VA00 product photo

Specifications

Display & optics

Diagonal size
10.1 in
Resolution
1280 × 800
Resolution name
WXGA
Brightness
1,200 nits
Contrast ratio
1200:1
Display mode
SFT
Technology
a-Si
Viewing angle
89/89/89/89
Response time
20 ms
Aspect ratio
16:10

Integration & physical details

Interface
LVDS
Touch
PCAP included
LED driver built in
Yes
Operating temperature
−20 to 70 °C
Outline dimensions
229.80 × 149.0 × 6.2 (LCM)
Active area
216.96 × 135.60 mm
Grade
Advanced
Description

10.1" WXGA, Advanced, LVDS, SFT, 1200nit, -20+70C, PCAP, USB, multi-touch

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityP1010WXF1VA00

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Edge Electronics · Product summary
Tianma · P1010WXF1VA00 · P Series

https://www.edgeelectronics.com/p/tianma-p1010wxf1va00/

Confirm specifications for the required revision with Edge or the manufacturer. For documentation, pricing and availability: 800.647.3343.
