Tianma · P Series

P1010WSN1ME00

Diagonal
10.1 in
Resolution · WSVGA
1024 × 600
Brightness
420 nits
Interface
LVDS

TN panel rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

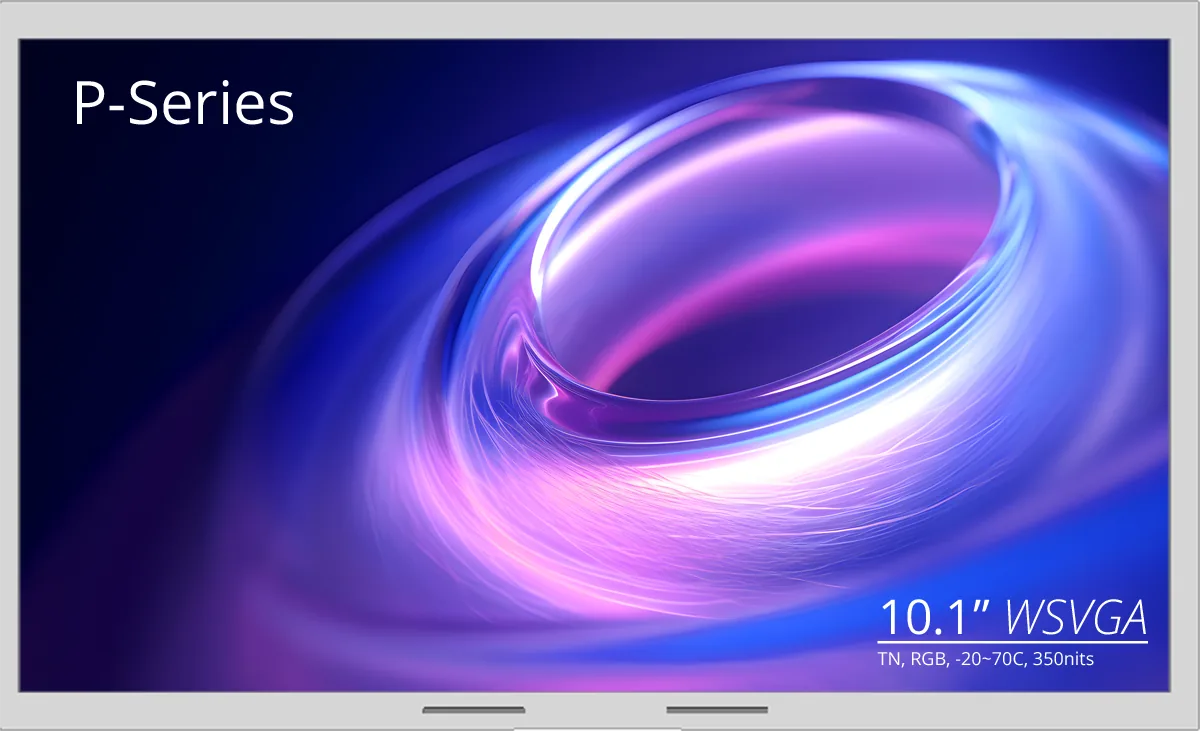

P1010WSN1ME00 product photo

Specifications

Display & optics

Diagonal size
10.1 in
Resolution
1024 × 600
Resolution name
WSVGA
Brightness
420 nits
Contrast ratio
800:1
Display mode
TN
Technology
a-Si
Viewing angle
75/80/80/80
Response time
16 ms
Aspect ratio
5:3

Integration & physical details

Interface
LVDS
Touch
Not included · Factory PCAP optional
LED driver built in
Yes
Operating temperature
−20 to 70 °C
Outline dimensions
235.00 × 143.00 × 4.9 mm
Active area
222.72 × 125.28 mm
Grade
Entry
Description

10.1" WSVGA, Entry, LVDS, 420 nits -20+70C w/ LED Dr.

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityP1010WSN1ME00
