Tianma · P Series

P1210XGN1MB00

Diagonal
12.1 in
Resolution · XGA
1024 × 768
Brightness
450 nits
Interface
LVDS

TN panel rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

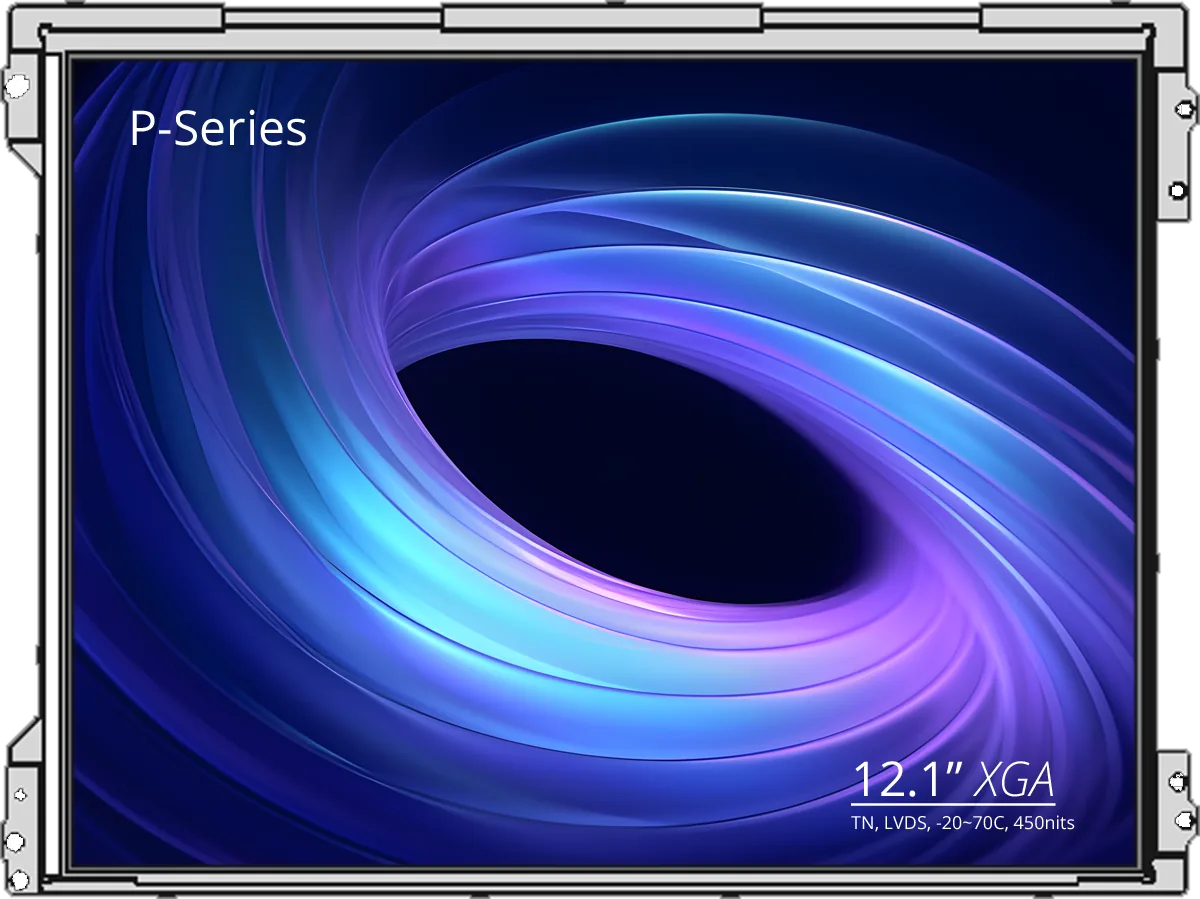

P1210XGN1MB00 product photo

Specifications

Display & optics

Diagonal size
12.1 in
Resolution
1024 × 768
Resolution name
XGA
Brightness
450 nits
Contrast ratio
700:1
Display mode
TN
Technology
a-Si
Viewing angle
88/88/88/88
Response time
8 ms
Aspect ratio
4:3

Integration & physical details

Interface
LVDS
Touch
Not included · Factory PCAP optional
LED driver built in
Yes
Operating temperature
−20 to 70 °C
Outline dimensions
279.0 × 209.0 × 8.6 mm
Active area
245.76 × 184.32 mm
Grade
Basic
Description

12.1" XGA, Basic, TN, LVDS, 450 nits, -20+70C, with LED Dr.
