Tianma · P Series

P1500XGF1MB00

Diagonal
15 in
Resolution · XGA
1024 × 768
Brightness
300 nits
Interface
LVDS

SFT panel rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

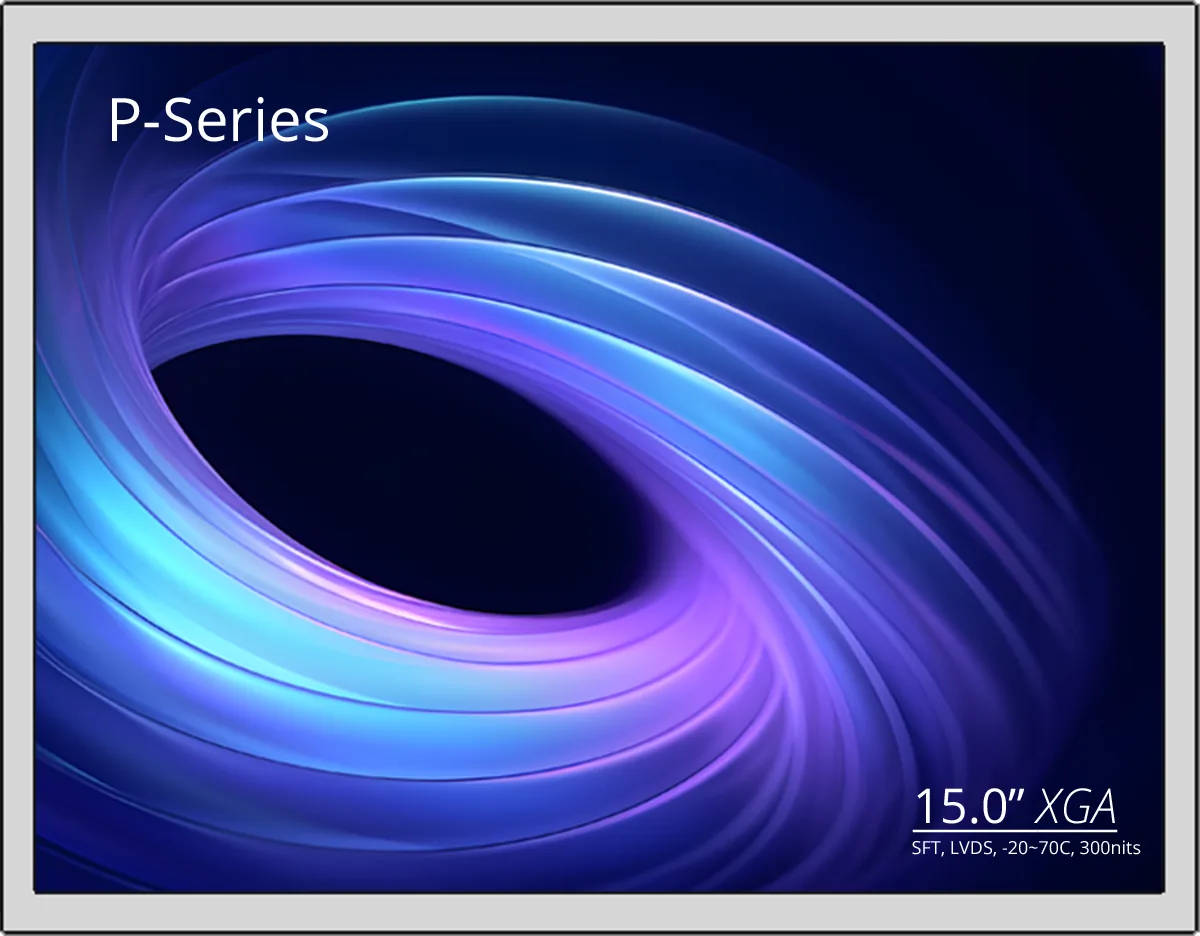

P1500XGF1MB00 product photo

Specifications

Display & optics

Diagonal size
15 in
Resolution
1024 × 768
Resolution name
XGA
Brightness
300 nits
Contrast ratio
1000:1
Display mode
SFT
Technology
a-Si
Viewing angle
88/88/88/88
Response time
25 ms
Aspect ratio
4:3

Integration & physical details

Interface
LVDS
Touch
Not included · Factory PCAP optional
LED driver built in
Yes
Operating temperature
−20 to 70 °C
Outline dimensions
326.5 × 253.5 × 11.8 mm
Active area
304.128 × 228.096 mm
Grade
Basic
Description

15.0" XGA, Basic, LVDS, SFT 300 nits, -20+70C, with LED Dr.
