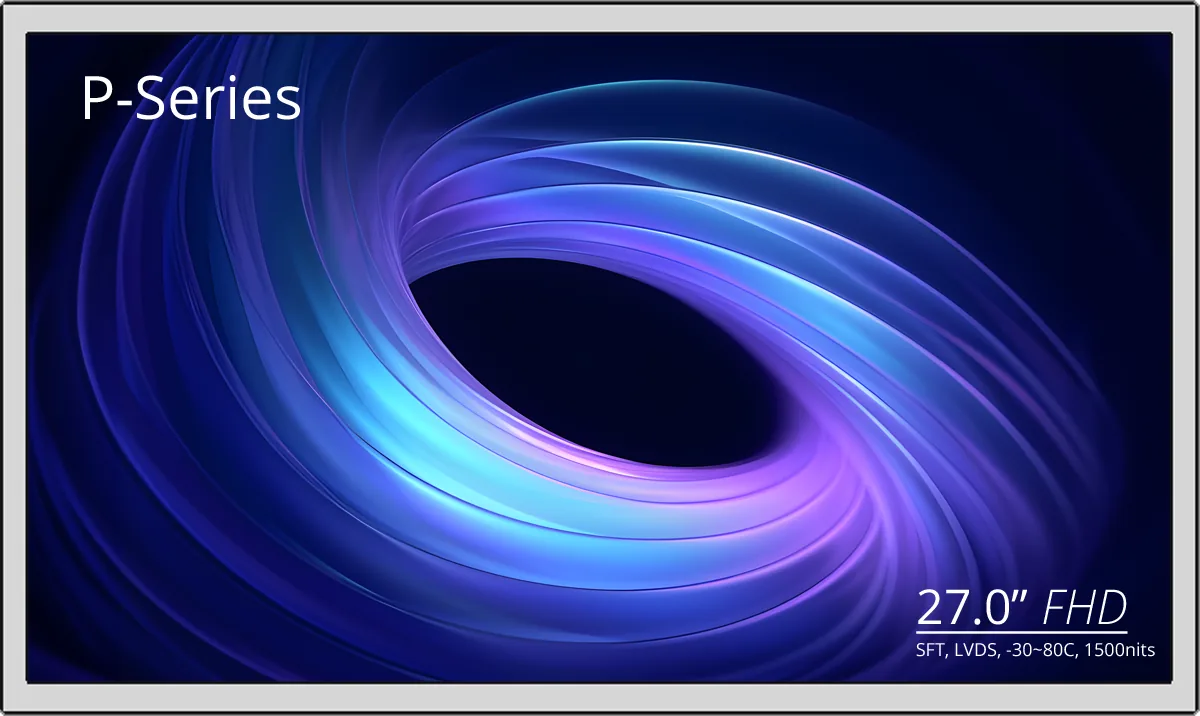

Tianma · P Series
P2700FHF1MA00
- Diagonal
- 27 in
- Resolution · FHD
- 1920 × 1080
- Brightness
- 1,500 nits
- Interface
- LVDS
SFT panel rated for −30 to 80 °C operation.
Authorized Tianma distributor Tianma America Distributor of the Year, 2025
Specifications
Display & optics
- Diagonal size
- 27 in
- Resolution
- 1920 × 1080
- Resolution name
- FHD
- Brightness
- 1,500 nits
- Contrast ratio
- 1000:1
- Display mode
- SFT
- Technology
- a-Si
- Viewing angle
- 88/88/88/88
- Response time
- 25 ms
- Aspect ratio
- 16:9
Integration & physical details
- Interface
- LVDS
- Interface detail
- LVDS, 2ch
- Touch
- Not included
- LED driver built in
- Yes
- Operating temperature
- −30 to 80 °C
- Outline dimensions
- 630 × 368 × 25 mm
- Active area
- 596.16 × 335.34 mm
- Grade
- Advanced
Description
27" FHD, Advanced, LVDS, SFT, 1500 nits, -30 +80C, w/o LED Dr.
Documents
RequestDatasheet, mechanical drawing and pinoutRequest from us
→ Request pricing and availabilityP2700FHF1MA00
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
