- Included processor
- 1 × Intel Core Ultra 5 245
- Installed memory
- 32GB DDR5-5600
Compact Intel edge system · Gold configuration
Supermicro SYS-E300-14AR-01-G2
A compact Intel Core Ultra system for retail and restaurant workflows, with 2.5GbE and 10GbE connections.
Included in this Gold configuration
SYS-E300-14AR-01-G2: included hardware
- Form factor / system type
- Mini-1U compact system
- Included processor
- 1 × Intel Core Ultra 5 245
- Installed memory
- 32GB DDR5-5600
- Storage configuration
- 1 × 960GB M.2 NVMe SSD
- Ethernet specification
- 2 × 2.5GbE RJ45; 2 × 10GbE RJ45; separate dedicated IPMI port
- Included power equipment
- 180W power adapter
Memory ratings describe the modules; operating speed depends on the CPU and DIMM configuration.
Part number
Confirm pricing and availability with Edge.

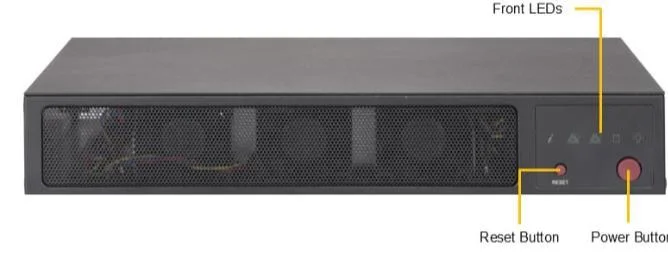

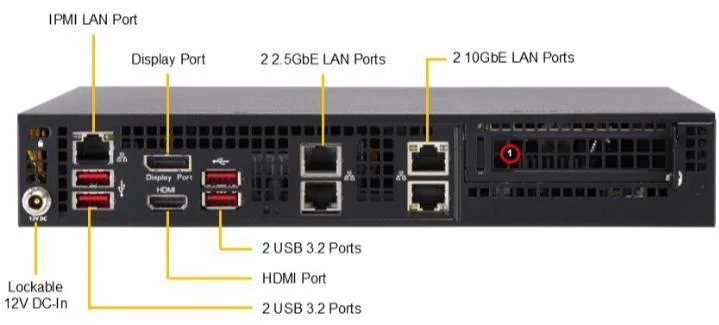

Product photographs
Platform capabilities and installation requirements
SYS-E300-14AR-01-G2: platform limits and conditions
- Supported memory capacity
- Up to 96GB DDR5 SO-DIMM at 6400MT/s (1DPC).
- Enclosure dimensions (W × H × D)
- 264.8 × 43 × 225.8mm
- Cooling
- Fan-based system; confirm the installed heatsink and fan configuration.
- Operating temperature
- 0°C to 40°C with 0.7m/s airflow
- Expansion
- M.2 PCIe 4.0 x2 B-key slot for 3052 devices; installed expansion hardware must be confirmed.
