Beacon EmbeddedWorks OMAP-L138 SoM-M1

System-on-module based on following Texas Instruments processors: OMAP-L138 processor with dual core ARM926EJ-S and C6748 VLIW digital signal processor (DSP) running at 375 MHz ( link to Texas Instruments OMAP-L138 page ) TMS320C6748 VLIW DSP running at 375 MHz ( link to Texas Instruments TMS320C6748 page ). Review carrier-board, memory and interface requirements with us.

Request a quote Plan a system around this model →

OMAP-L138 SoM-M1 datasheet

Contact Edge to confirm the exact ordering number and configuration for your application.

At a glance

OMAP-L138 SoM-M1 platform details

Platform: System-on-module
Processor / supported family: The OMAP-L138 SoM-M1 supports the following Texas Instruments processors: OMAP-L138 processor with dual core ARM926EJ-S and C6748 VLIW digital signal processor (DSP) running at 375 MHz ( link to Texas Instruments OMAP-L138 page ) TMS320C6748 VLIW DSP running at 375 MHz ( link to Texas Instruments TMS320C6748 page )
Ethernet specification: 10/100 Base-T Ethernet controller
Software and Tools: Open source Linux DVSDK Board Support Package ( available from Texas Instruments ); U-Boot (bootloader/monitor); Windows Embedded CE SDK; DSP/BIOS; Board Support Library (BSL) sample programs
Memory options: Scalable serial NOR flash memory (16 MB standard); Boots from NOR flash; Mobile DDR SDRAM memory, 64 or 128 MB
USB: One USB 2.0 high-speed On-the-Go interface; One USB 1.1 full-speed host interface
Serial I/O: Three external UARTs; Two I2Cs
Display: Programmable color LCD controller supports up to a 16 bpp TFT interface; Integrated 4-wire touchscreen controller (TPS65070)

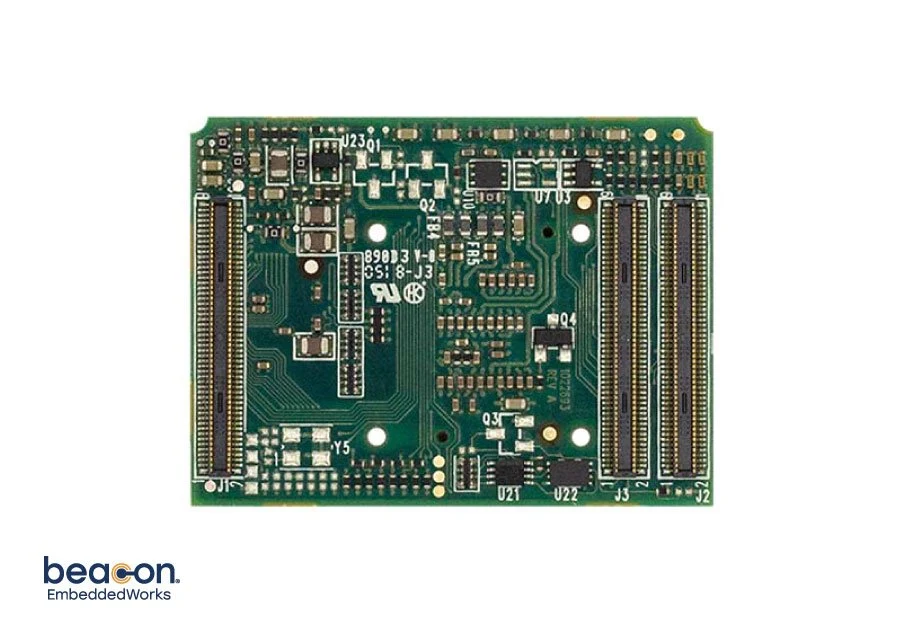

Product photographs

Technical specifications

OMAP-L138 SoM-M1 common specifications

PC Card Expansion: Serial ATA Controller: SATA 1.5 & 3.0 Gpbs support; MMC/SD card support
Mechanical Specifications: SoM-M1 form factor (30.0 x 40.0 x 4.1 mm); Commercial temperature (0°C to +70°C); Industrial temperature (-40°C to +85°C)

Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.

Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.

Configuration and availability

Contact Edge to confirm the exact ordering number and configuration for your application.

Documents

PDF

OMAP-L138 SoM-M1 datasheet

Manufacturer specifications and ordering information. Match the configuration to the selected part number.
