System-on-module

Beacon EmbeddedWorks i.MX6 SoM-M3

System-on-module based on NXP i.MX6 single-, dual-, or quad-core ARM® Cortex™-A9 processor running up to 1GHz (single) or 1.2 GHz (dual/quad). Review carrier-board, memory and interface requirements with us.

Request a quote Plan a system around this model →

i.MX6 SoM-M3 datasheet

Contact Edge to confirm the exact ordering number and configuration for your application.

At a glance

i.MX6 SoM-M3 platform details

Platform: System-on-module
Processor / supported family: NXP i.MX6 single-, dual-, or quad-core ARM® Cortex™-A9 processor running up to 1GHz (single) or 1.2 GHz (dual/quad)
Software and Tools: Limited Linux BSP kernel 4.x
Memory options: 32-bit wide DDR3L-1066, 2 GB (dual/quad); NAND flash, 1 GB
Network connectivity: 802.11a/b/g/n; Bluetooth 4.1; BLE and MIMO support
USB: One USB 2.0 high-speed host interface; One USB 2.0 high-speed On-the-Go interface
Serial I/O: Up to four UART, two I2C, and four SPI interfaces
Display: 3- and 4-bit LVDS display port support; Hardware supports 18- and 24-bit color

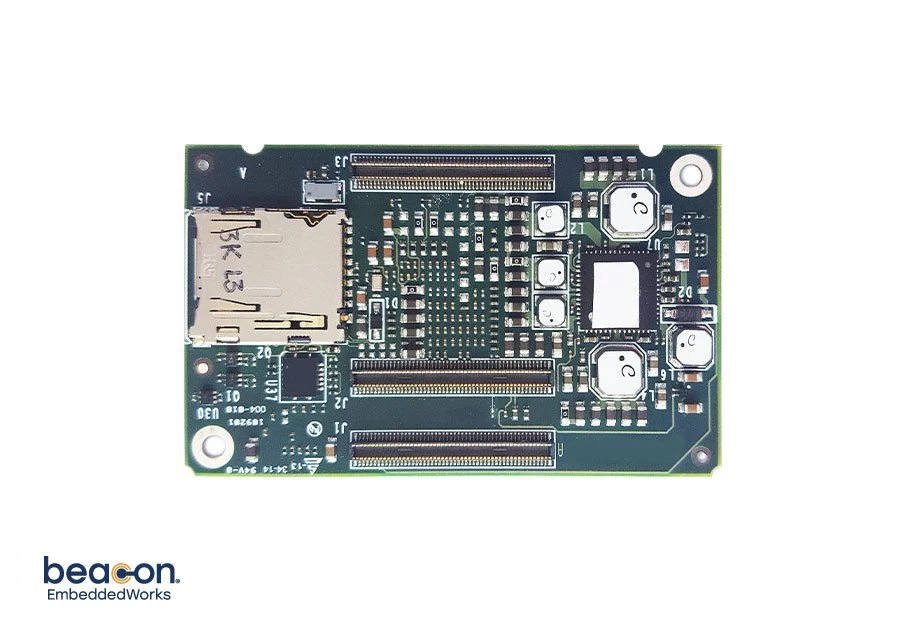

Product photographs

Technical specifications

i.MX6 SoM-M3 common specifications

Camera: MIPI CSI-2 interface (Up to 4 lanes with dual/quad configuration)
Audio: Enhanced Serial Audio Interface (ESAI); Digital audio multiplexer with 4- and 6-wire interface support
Removable Storage: MicroSD card support; SDXC & SDHC interface support
Mechanical Specifications: Compact SOM-M3 form factor (57 x 35 x 8 mm); Commercial temperature (0°C to +70°C) (NOTE: Custom configuration option); Extended temperature (-25°C to +85°C) Junction temperature must be kept below thresholds
Additional Features: GPIO 130+ multiplexed GPIOs supporting various peripherals such as PWMs, SDIO, UART, SPI, I2C, CAN, HSIC, RGMII, and RMII 16-bit, multiplexed parallel host bus I/O banks are selectable as 1.8V and 3.3V; Debug: JTAG and ETM support; RoHS compliant

Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.

Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.

Configuration and availability

Contact Edge to confirm the exact ordering number and configuration for your application.
