System-on-module
Beacon EmbeddedWorks AM3517 SoM-M2
System-on-module based on Texas Instruments Sitara AM3517 microprocessor with ARM Cortex-A8 RISC core running at 600 MHz. Review carrier-board, memory and interface requirements with us.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
AM3517 SoM-M2 platform details
- Platform
- System-on-module
- Processor / supported family
- The AM3517 SOM-M2 supports the Texas Instruments Sitara AM3517 microprocessor with ARM Cortex-A8 RISC core running at 600 MHz
- Software and Tools
- U-Boot (bootloader/monitor); Android Development Kit; TI Linux SDK; Timesys Linux BSP; Windows Embedded CE SDK
- Memory options
- Scalable NAND flash memory (512 MB standard); Boots from onboard NAND or external SD/MMC, NAND, NOR, UART, USB, or Ethernet; 166 MHz DDR2 SDRAM, 256 MB standard (scalable to 512MB)
- Network connectivity
- 10/100 Base-T Ethernet controller (application/debug); 802.11b/g/n wireless Ethernet; Bluetooth 2.1 + EDR
- USB
- USB 2.0 High-speed On-the-Go interface; USB 2.0 high-speed host interface
- Serial I/O
- Up to four external UARTs; CAN 2.0B controller; Three I2C ports; Three SPI ports
- Display
- SGX530 graphics accelerator (AM3517 only); Programmable color LCD controller supports up to a 24 bpp TFT interface; Supports OpenGL 1.1/2.0 & OpenVG 1.0

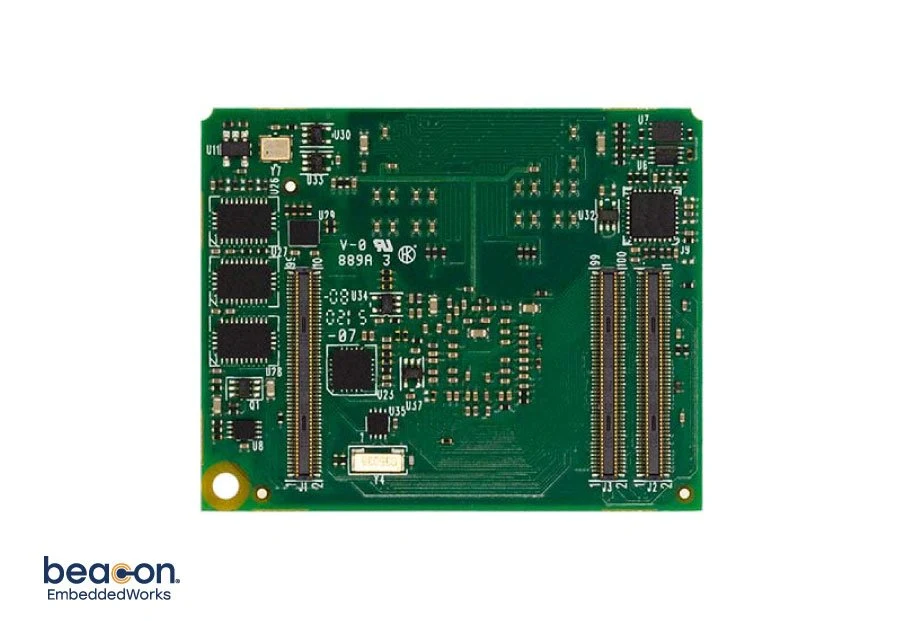

Product photographs
Technical specifications
AM3517 SoM-M2 common specifications
- Expansion
- Multiple SD/MMC card support
- Mechanical Specifications
- SOM-M2 form factor (40.9 x 51.2 x 4.4 mm); Commercial temperature (0°C to +70°C); Industrial temperature (-40°C to +85°C)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
