- Processor
- Intel Core i5-1235UL
- Installed memory (GB)
- 8
Medical panel PC
Avalue HID-1540
A 15.6-inch Full HD medical panel PC with projected capacitive touch and an Intel Core i5 processor.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
HID-1540 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 15.6
- Resolution
- 1920 × 1080
- Touch technology
- 10-point projected capacitive
- Panel luminance (cd/m²)
- 250
- IP protection
- Front IP65 / rear IPX1
- Processor / supported family
- Intel Core i5-1235UL
- Installed memory (GB)
- 8
Choose your HID-1540 configuration
One supplied ordering number. Confirm your requirements with Edge.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.
Photos and video

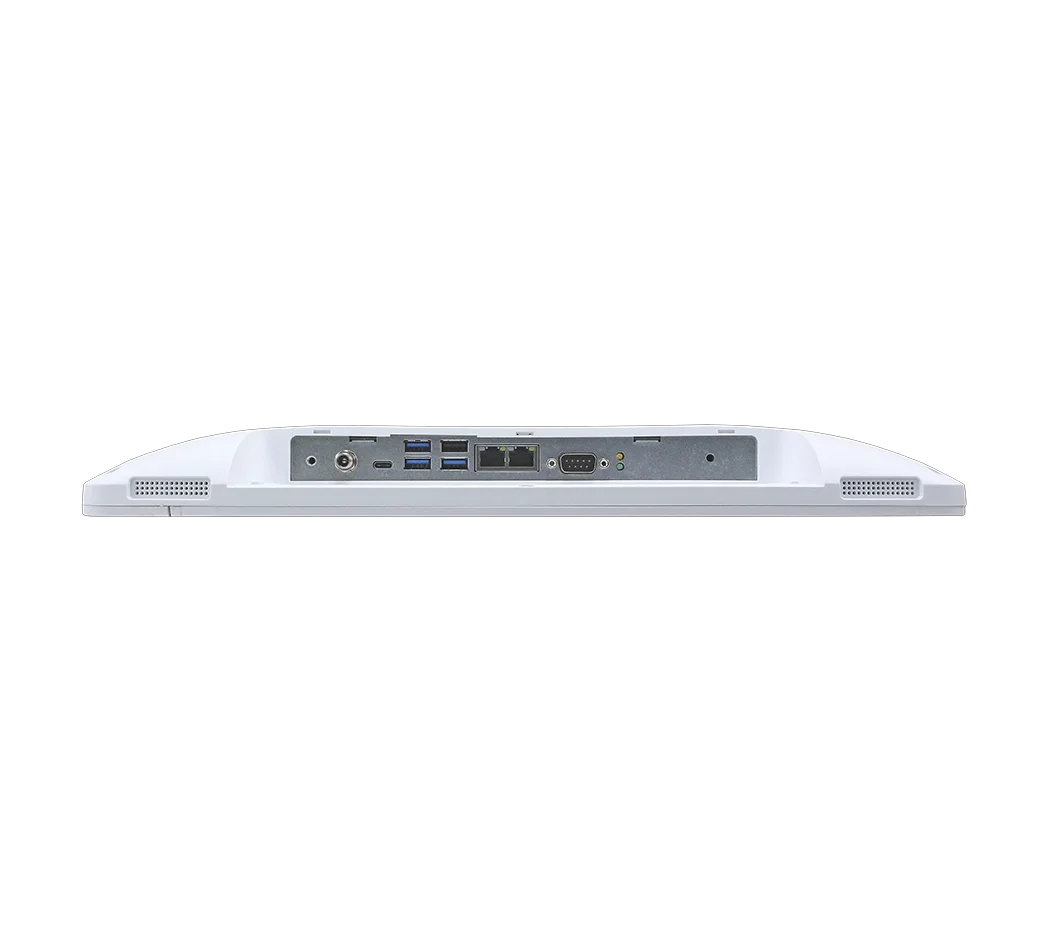

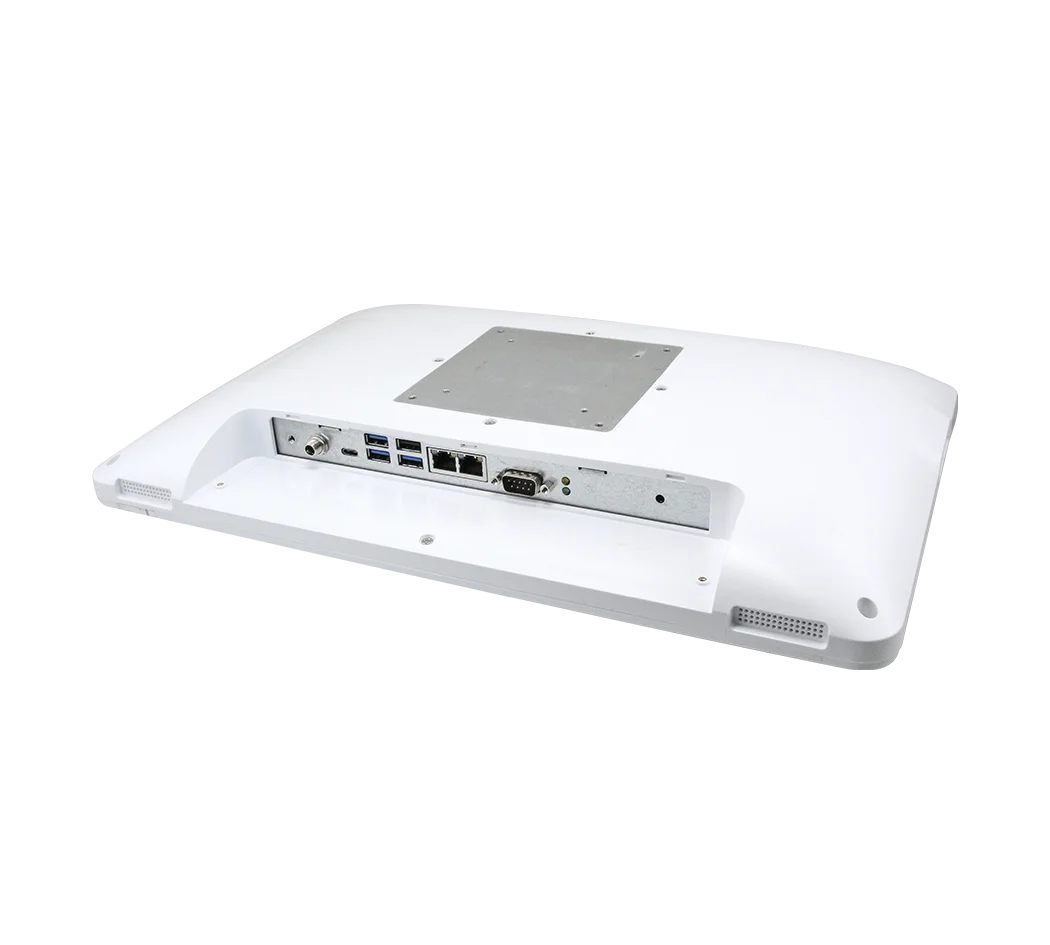

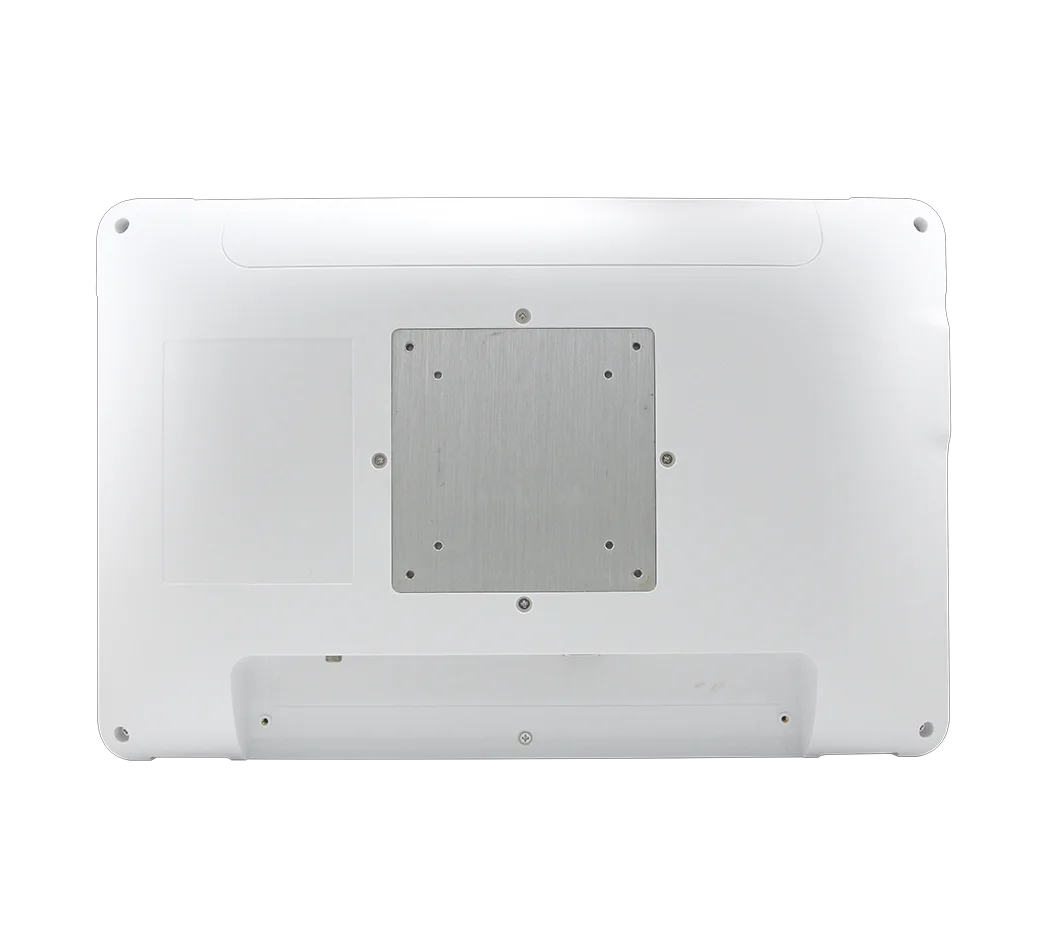

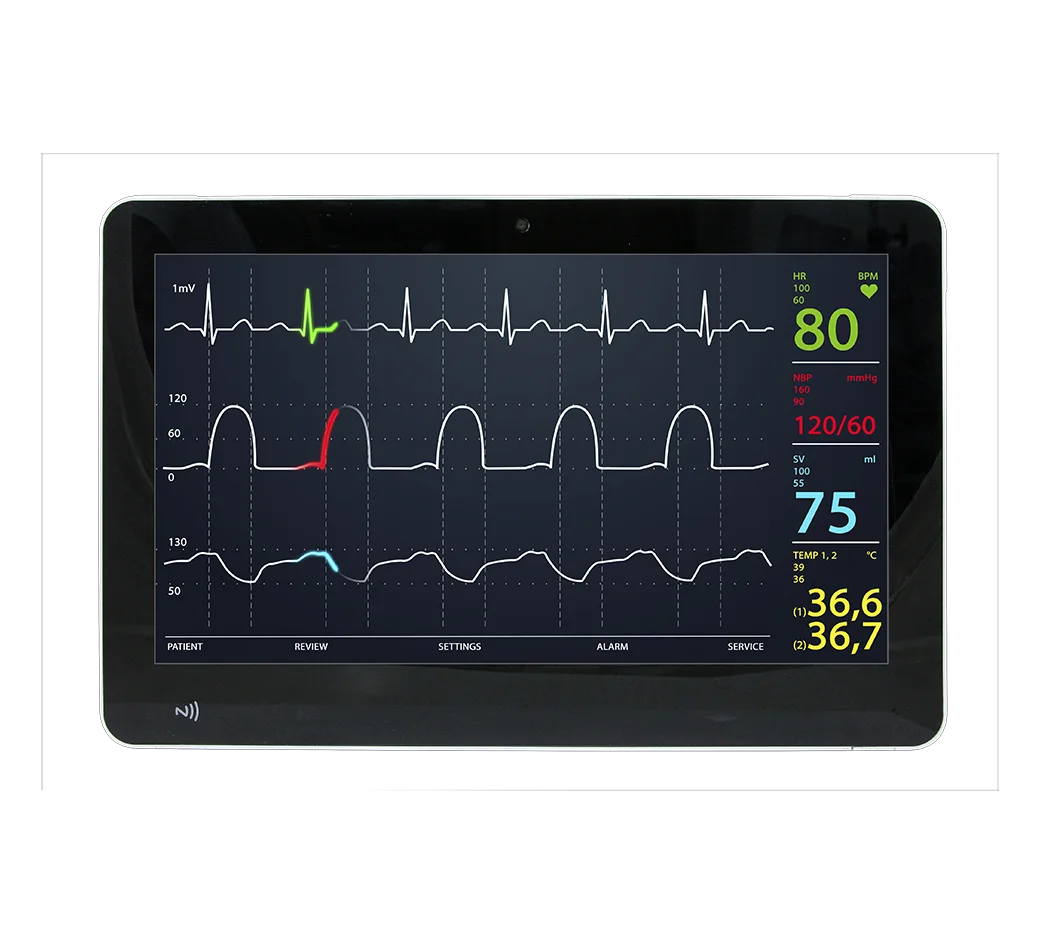

HID-1540 product overview
Technical specifications
HID-1540 common specifications
- Maximum memory (GB)
- 32
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE; I225LM + I226LM
- Processor family
- Intel Core
- Memory sockets
- 1
- Memory data rate (MT/s)
- 4800
- Data LAN ports
- 2
- USB 2.0 ports
- 1
- USB 3.x ports, excluding Type-C
- 3
- USB Type-C ports
- 1
- COM ports
- 1
- Serial interfaces
- RS-232/422/485
- M.2 Key E
- Wi-Fi
- M.2 Key M
- 2280; PCIe Gen4 x4; alternative Key-B SATA
- DC input minimum (V)
- 19
- DC input maximum (V)
- 19
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 40
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 400
- Length (mm)
- 263
- Height (mm)
- 42.5
- Weight (kg)
- 2.8
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0 onboard
- Mounting
- VESA 75x75 / 100x100
- Fanless
- Yes
- Adapter power (W)
- 90
- Speaker output
- 2 x 5W
- Surface finish
- Antimicrobial
- Included configuration
- 8GB RAM, camera, audio, speakers, LED, adapter per ordering description
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
