Avalue Technology · HID-1540 series
HID-1540-123-A1R

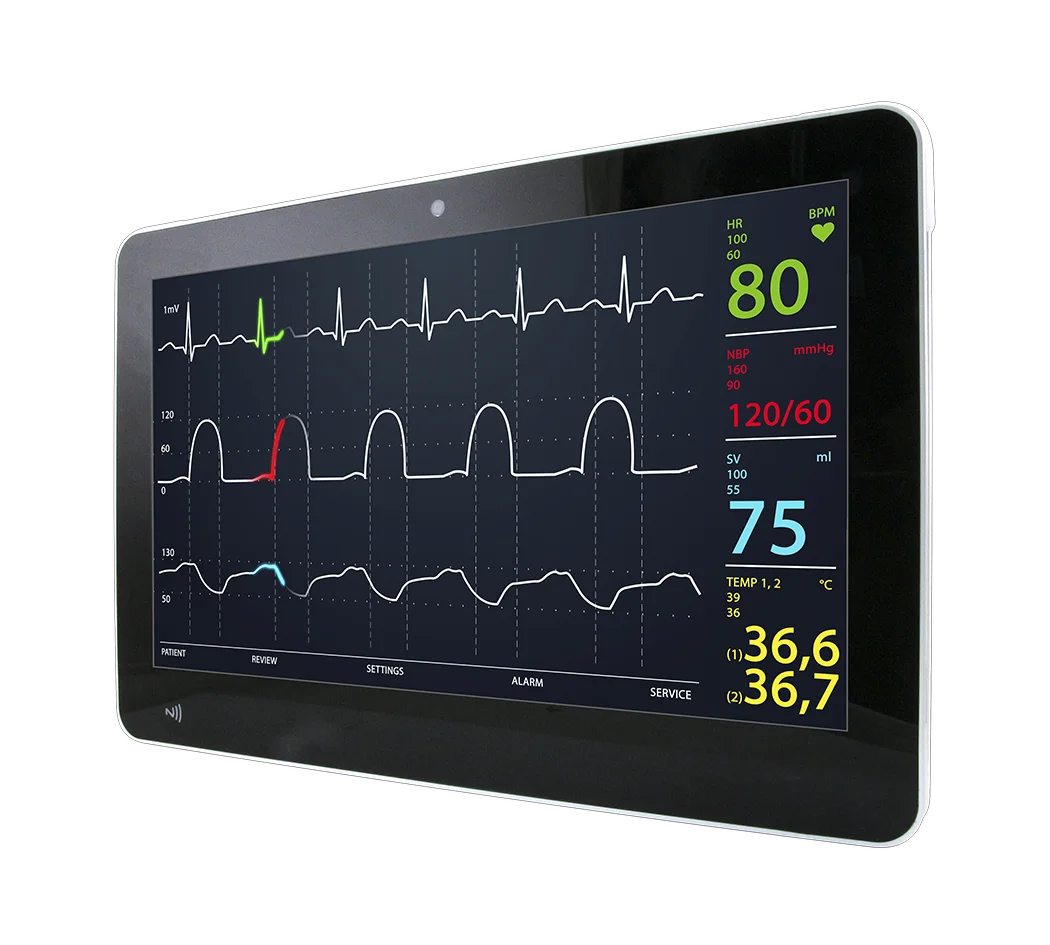

A 15.6-inch Full HD medical panel PC with projected capacitive touch and an Intel Core i5 processor.
- Processor
- Intel Core i5-1235UL
Authorized Avalue Technology distributor
Specifications
- Screen size (in)
- 15.6
- Resolution
- 1920 × 1080
- Touch technology
- 10-point projected capacitive
- Processor / supported family
- Intel Core i5-1235UL
- Memory type
- DDR5 SO-DIMM
- Memory sockets
- 1
- Maximum memory (GB)
- 32
- Installed memory (GB)
- 8
- Memory data rate (MT/s)
- 4800
- Data LAN ports
- 2
- Ethernet specification
- 2 x 2.5GbE; I225LM + I226LM
- USB 2.0 ports
- 1
- USB 3.x ports, excluding Type-C
- 3
- USB Type-C ports
- 1
- COM ports
- 1
- Serial interfaces
- RS-232/422/485
- M.2 Key E
- Wi-Fi
- M.2 Key M
- 2280; PCIe Gen4 x4; alternative Key-B SATA
- DC input minimum (V)
- 19
- DC input maximum (V)
- 19
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 40
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 400
- Length (mm)
- 263
- Height (mm)
- 42.5
- Weight (kg)
- 2.8
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0 onboard
- IP protection
- Front IP65 / rear IPX1
- Mounting
- VESA 75x75 / 100x100
- Fanless
- Yes
- Adapter power (W)
- 90
- Panel luminance (cd/m²)
- 250
- Speaker output
- 2 x 5W
- Surface finish
- Antimicrobial
- Included configuration
- 8GB RAM, camera, audio, speakers, LED, adapter per ordering description
- Form factor / system type
- Medical panel PC
- Processor family
- Intel Core
- Release status
- Active listing
Ask us for current product status and availability.
Documents
WEBManufacturer product specificationsAvalue Technology product page
→ PDFProduct datasheetAvalue Technology PDF
↓ Request pricing and availabilityHID-1540-123-A1R
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
