3.5-inch SBC · Pre-release
Avalue ECM-PTL
A 3.5-inch board based on Intel Core Ultra Series 3, with high-speed storage and display interfaces.
Pre-release platform. Confirm the final configuration and production timing with Edge.
At a glance
ECM-PTL platform details shared by listed variants
- Platform
- 3.5-inch SBC
- Processor / supported family
- Intel Core Ultra Series 3
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE; controller depends on SKU
- Display outputs
- HDMI 2.1b / DP 2.1: 7680x4320 at 30 Hz; USB-C DP: 4096x2160 at 60 Hz; LVDS or eDP
- Processor family
- Intel Core Ultra
- Data LAN ports
- 2
- Memory sockets
- 1
Choose your ECM-PTL configuration
2 ordering numbers. The published specifications do not distinguish these versions. Ask Edge to confirm the exact configuration.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

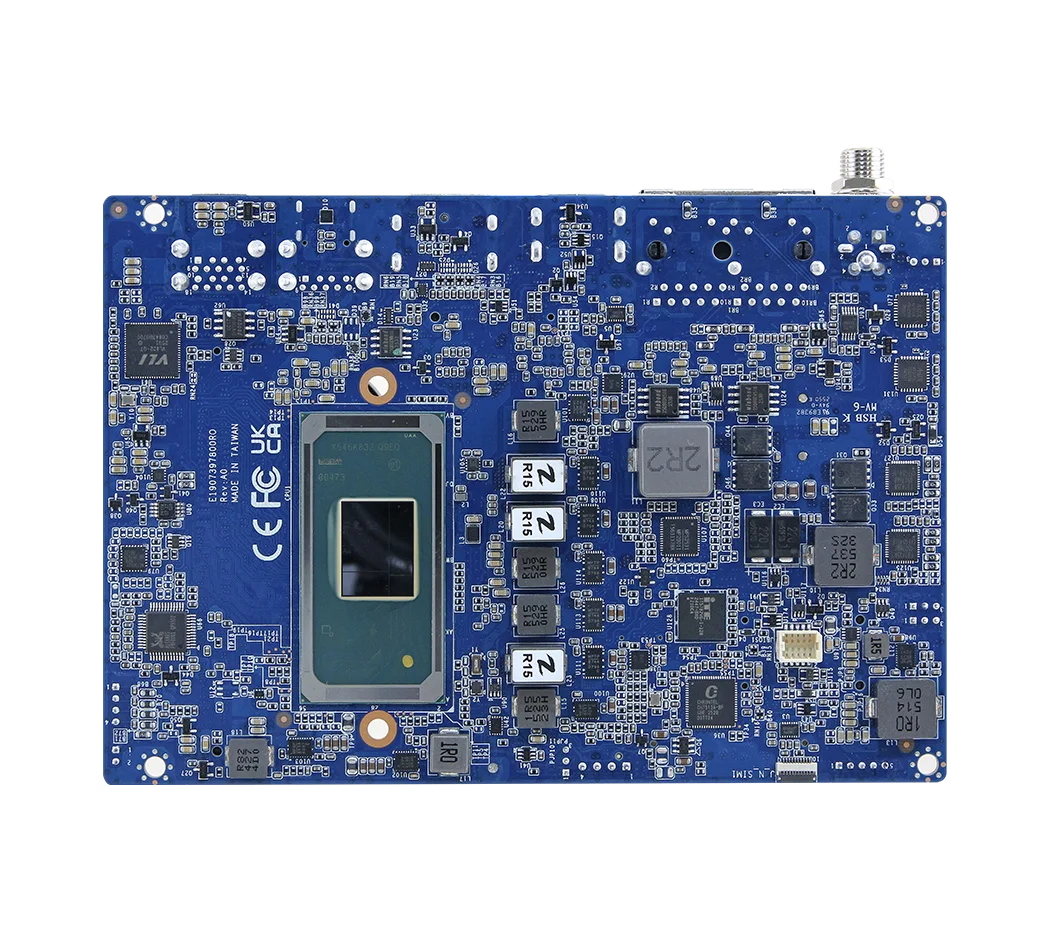

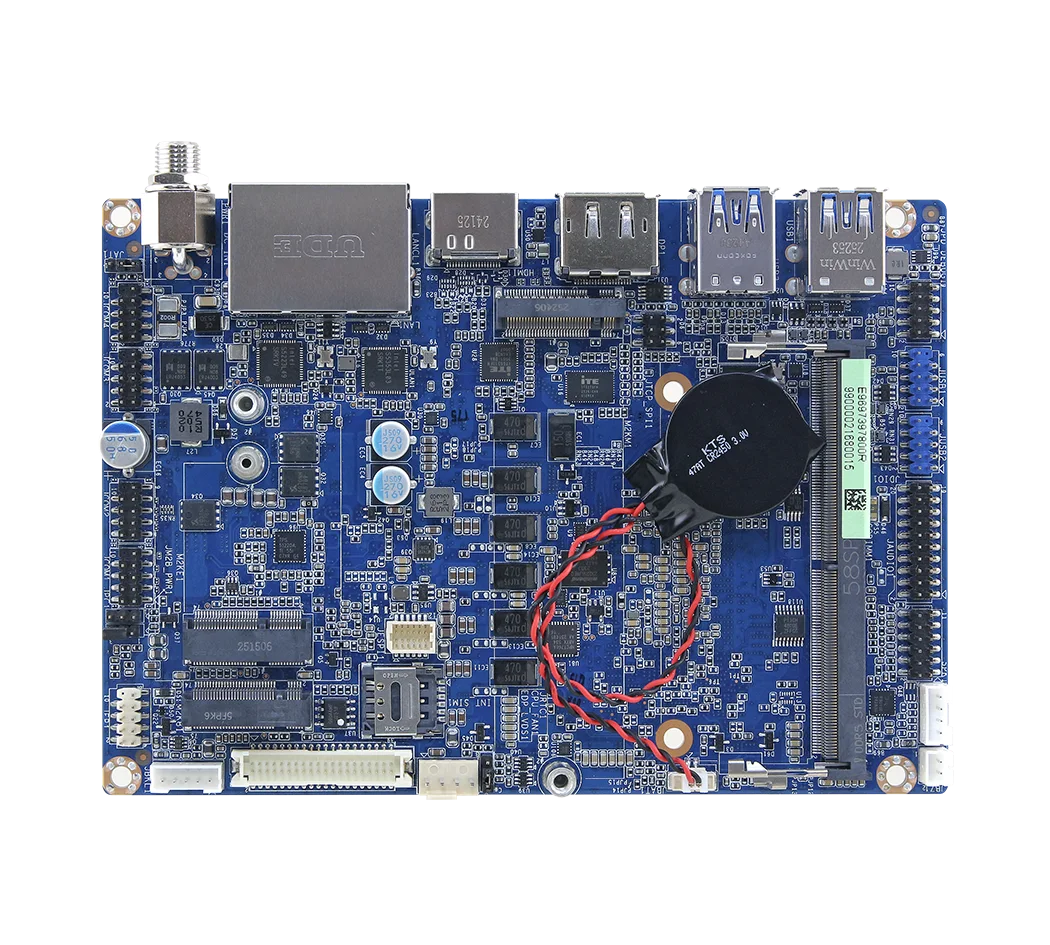

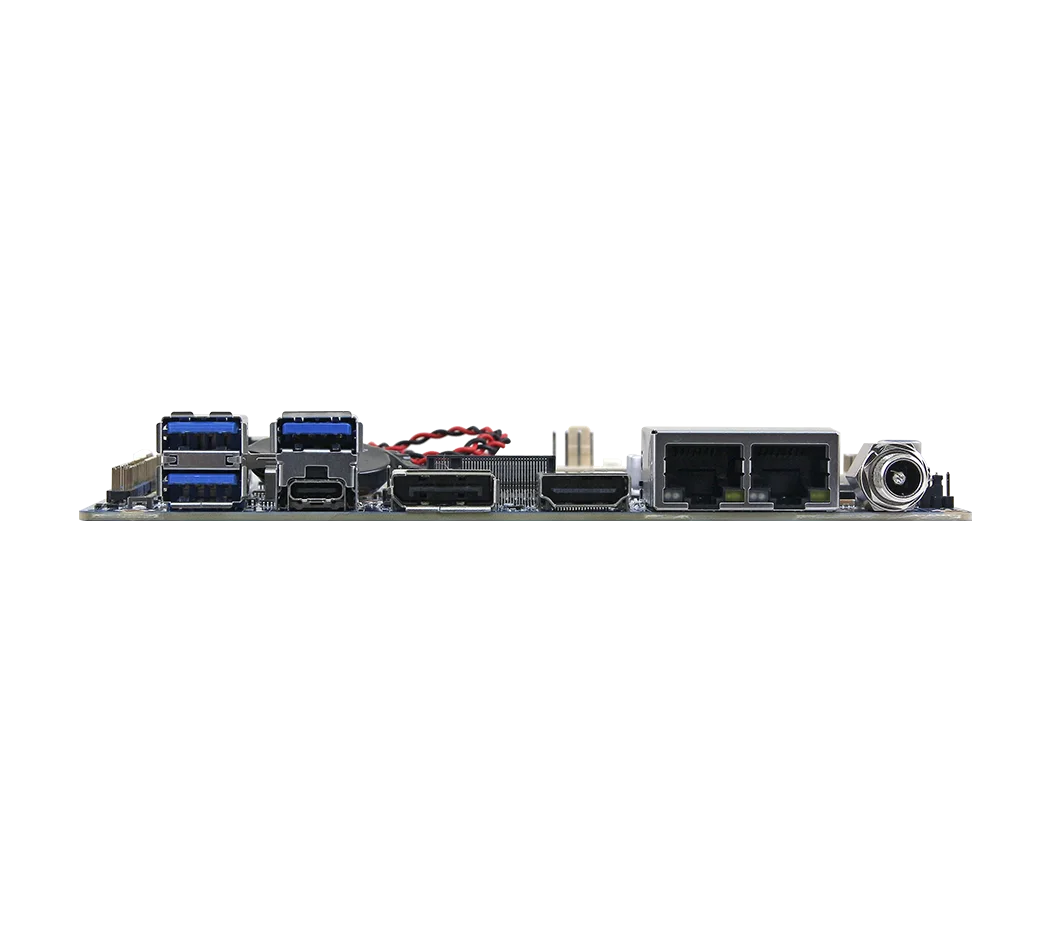

Product photographs
Technical specifications
ECM-PTL common specifications
- USB 2.0 ports
- 4
- USB 3.x ports, excluding Type-C
- 3
- USB Type-C ports
- 1
- COM ports
- 4
- Serial interfaces
- 2 RS-232 + 2 RS-232/422/485
- GPIO bits
- 16
- M.2 Key B
- 3042/3052/2242; PCIe x1 / USB; SIM
- M.2 Key E
- 2230; PCIe / USB; Wi-Fi / CNVi
- M.2 Key M
- 2280; PCIe Gen5 NVMe
- SATA connectors
- 0
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 4
- DC input minimum (V)
- 12
- DC input maximum (V)
- 24
- Operating temperature conditions
- 0.5 m/s airflow
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 75
- Width (mm)
- 101
- Length (mm)
- 146
- Weight (kg)
- 0.2
- OS support
- Windows 11 / Linux
- TPM
- 2.0 onboard
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
