Avalue Technology · ECM-PTL series

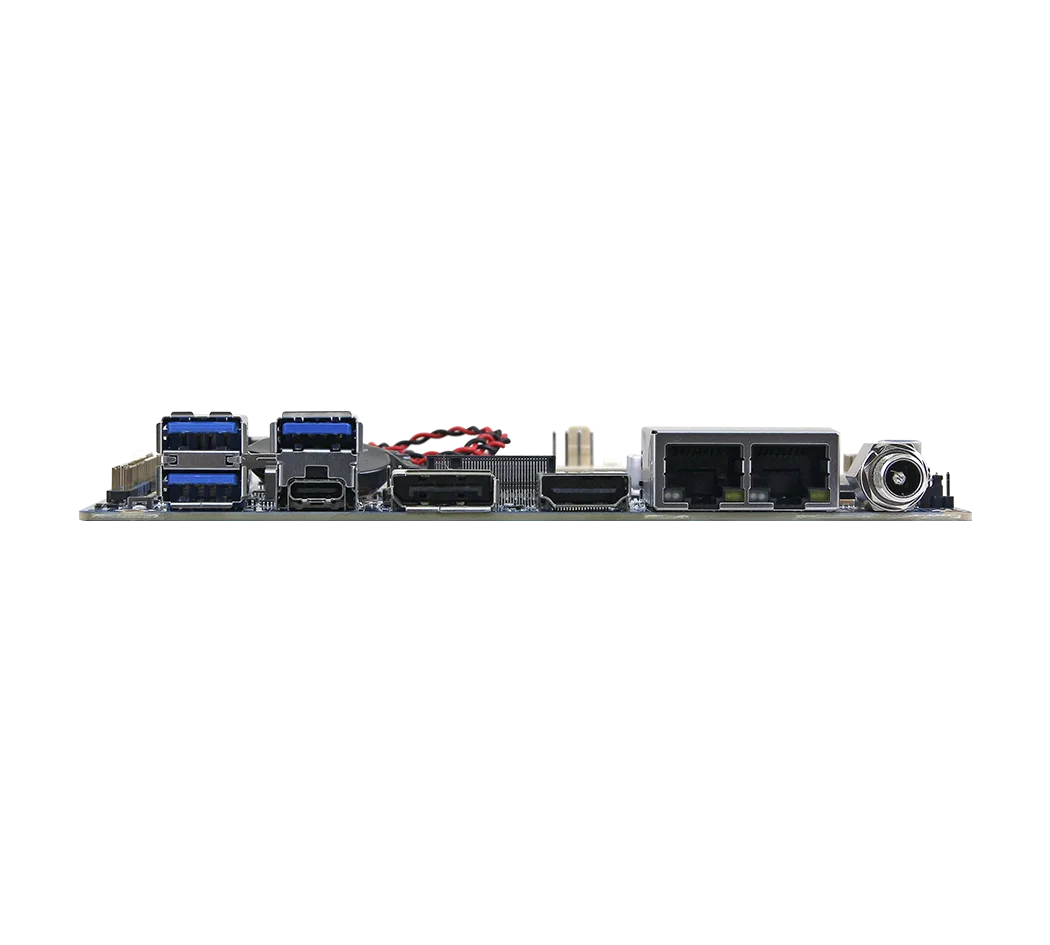

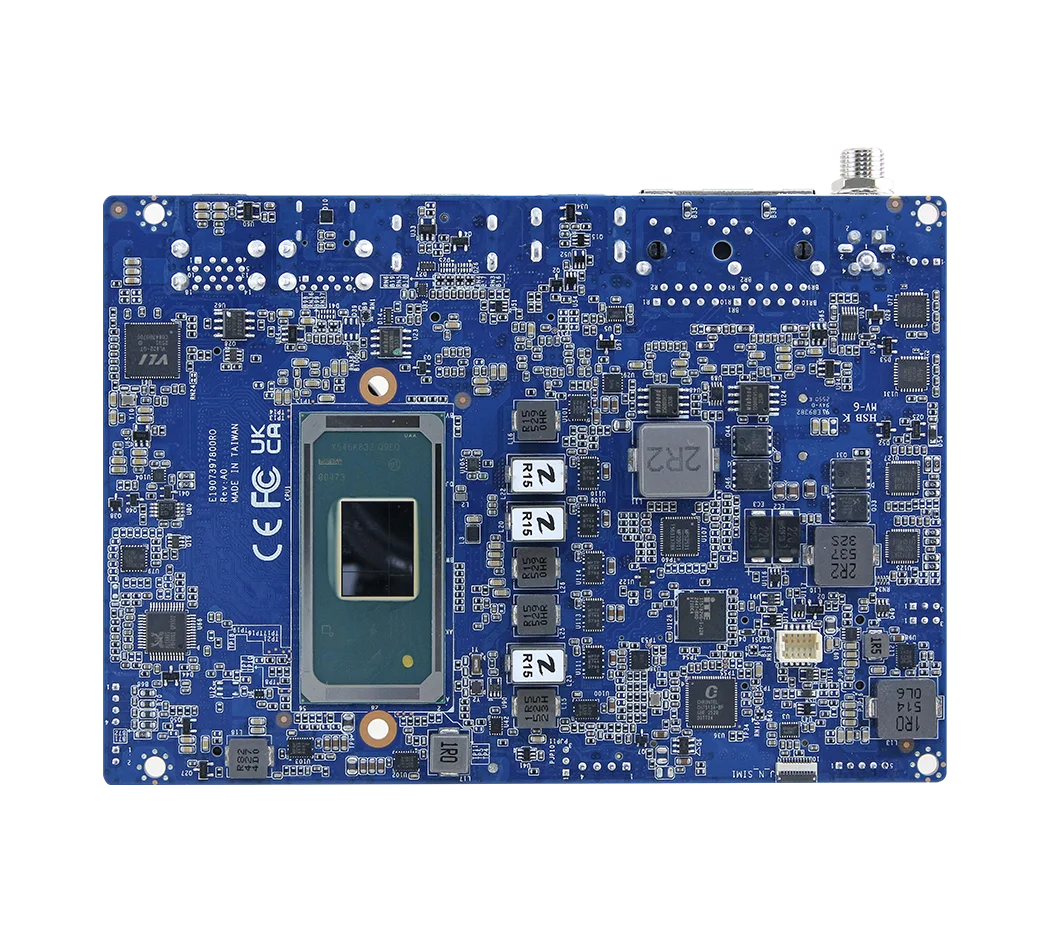

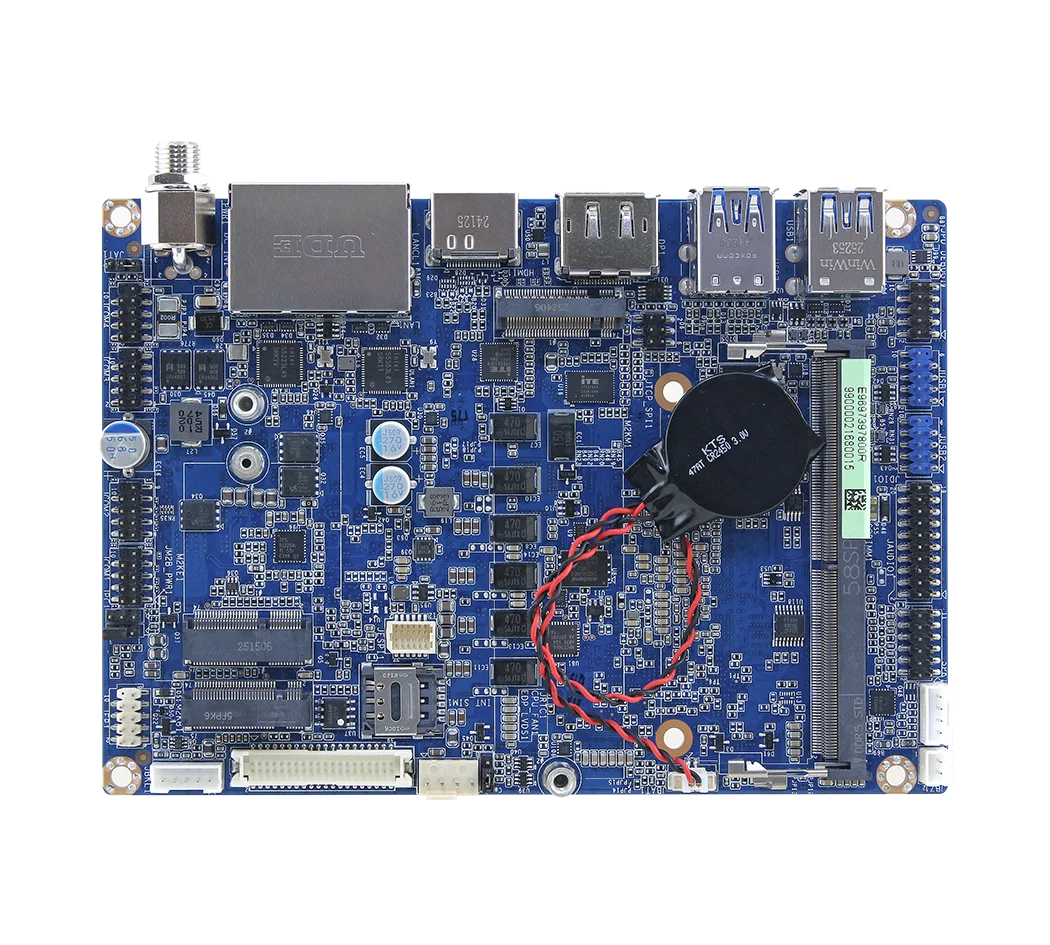

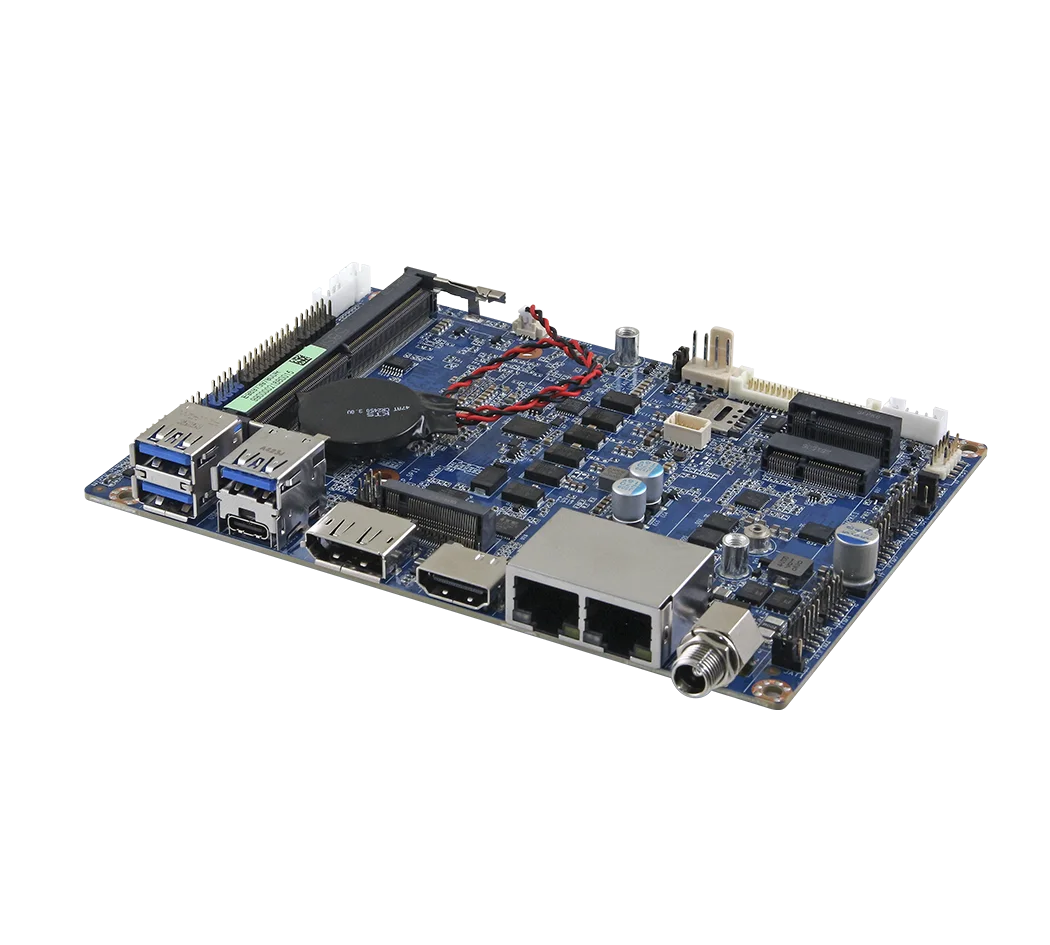

ECM-PTL-335-A1R
A 3.5-inch board based on Intel Core Ultra Series 3, with high-speed storage and display interfaces.
Authorized Avalue Technology distributor
Specifications
- Processor / supported family
- Intel Core Ultra Series 3
- Form factor / system type
- 3.5-inch SBC
- Data LAN ports
- 2
- Memory type
- DDR5 SO-DIMM
- Memory sockets
- 1
- Ethernet specification
- 2 x 2.5GbE; controller depends on SKU
- USB 2.0 ports
- 4
- USB 3.x ports, excluding Type-C
- 3
- USB Type-C ports
- 1
- COM ports
- 4
- Serial interfaces
- 2 RS-232 + 2 RS-232/422/485
- GPIO bits
- 16
- M.2 Key B
- 3042/3052/2242; PCIe x1 / USB; SIM
- M.2 Key E
- 2230; PCIe / USB; Wi-Fi / CNVi
- M.2 Key M
- 2280; PCIe Gen5 NVMe
- SATA connectors
- 0
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 4
- Display outputs
- HDMI 2.1b / DP 2.1: 7680x4320 at 30 Hz; USB-C DP: 4096x2160 at 60 Hz; LVDS or eDP
- DC input minimum (V)
- 12
- DC input maximum (V)
- 24
- Operating temperature conditions
- 0.5 m/s airflow
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 75
- Width (mm)
- 101
- Length (mm)
- 146
- Weight (kg)
- 0.2
- OS support
- Windows 11 / Linux
- TPM
- 2.0 onboard
- Processor family
- Intel Core Ultra
- Release status
- Pre-release
Ask us for current product status and availability.
