AAEON MIX-Q870A1
A Mini-ITX motherboard for Intel Core Ultra 200S processors, with PCIe Gen5 expansion, DDR5 memory, and multiple storage interfaces.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
MIX-Q870A1 platform details
- Platform
- Mini-ITX
- Processor / supported family
- Intel Core Ultra 200S, LGA1851 socket, up to 65W
- Maximum memory (GB)
- 96
- Memory type
- DDR5 SO-DIMM / CSO-DIMM
- Ethernet specification
- 1 x 1GbE Intel I219-LM + 1 x 2.5GbE Intel I226-V
- Processor family
- Intel Core Ultra
- Data LAN ports
- 2
- Memory sockets
- 2
Choose your MIX-Q870A1 configuration
One supplied ordering number. Confirm your requirements with Edge.
Socketed processor, memory, storage, and cooling must be selected for the finished system.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

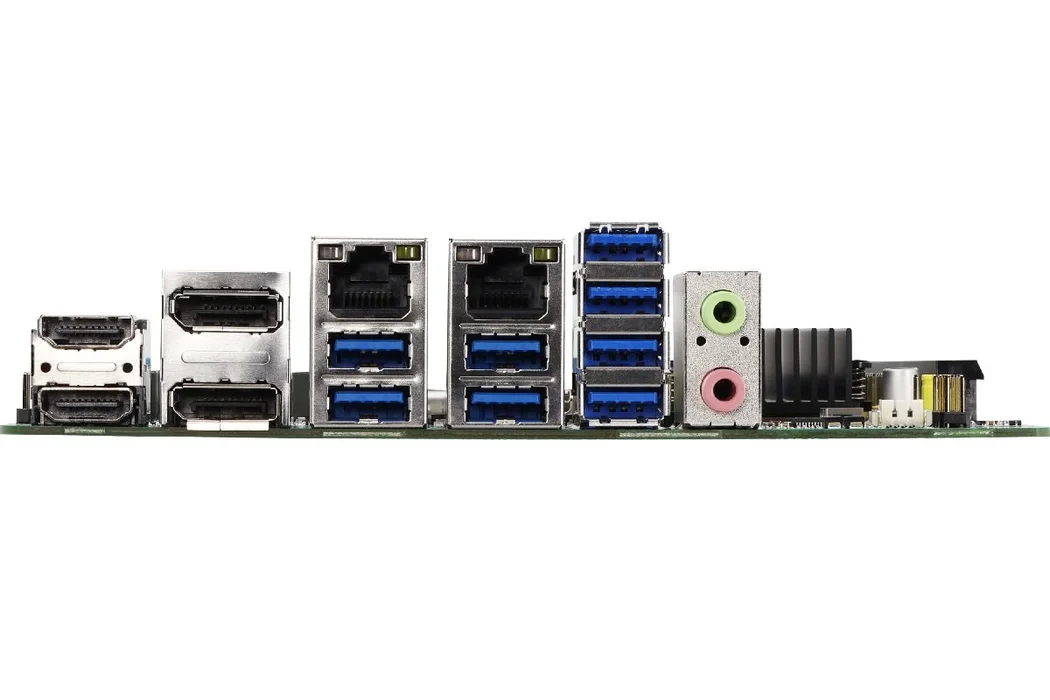

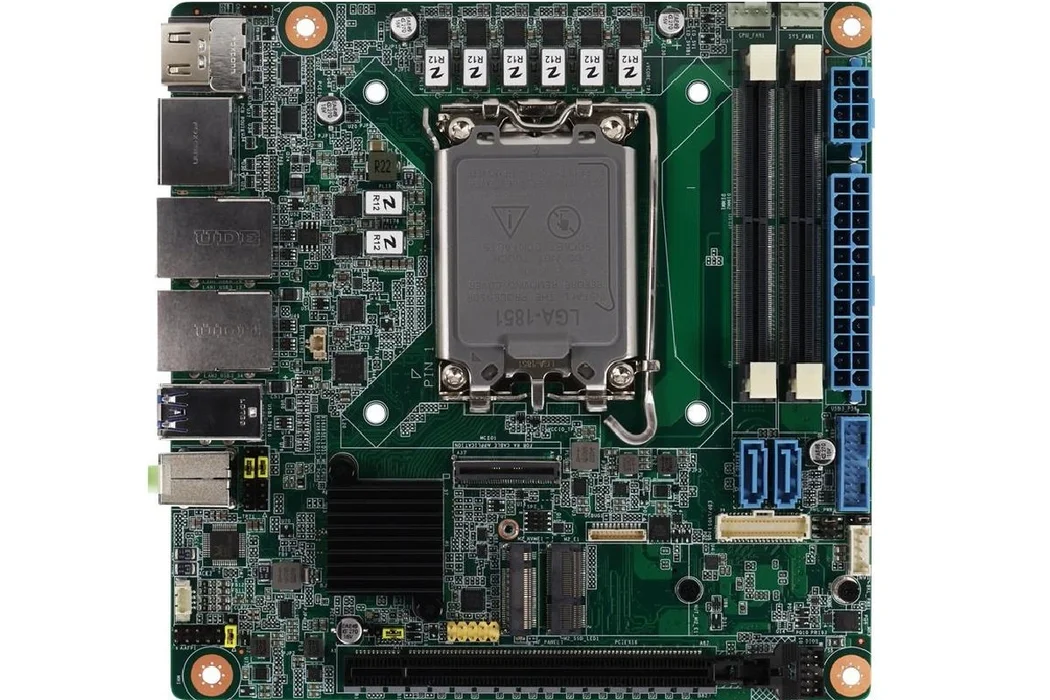

Product photographs
Technical specifications
MIX-Q870A1 common specifications
- Memory data rate (MT/s)
- Up to 6400
- USB configuration
- 10 USB 3.2 connections: eight rear I/O and two internal
- M.2 Key E
- 2230
- M.2 Key M
- 2 slots
- SATA connectors
- 2
- HDMI ports
- 2
- DisplayPort ports
- 2
- Independent displays
- 4
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Width (mm)
- 170
- Length (mm)
- 170
- TPM
- 2.0
- Power input details
- ATX
- PCIe expansion
- PCIe Gen5 x16, supports bifurcation
- Configuration notes
- Socketed processor, memory, storage, and cooling must be selected for the finished system.
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
