AAEON · MIX-Q870A1 series

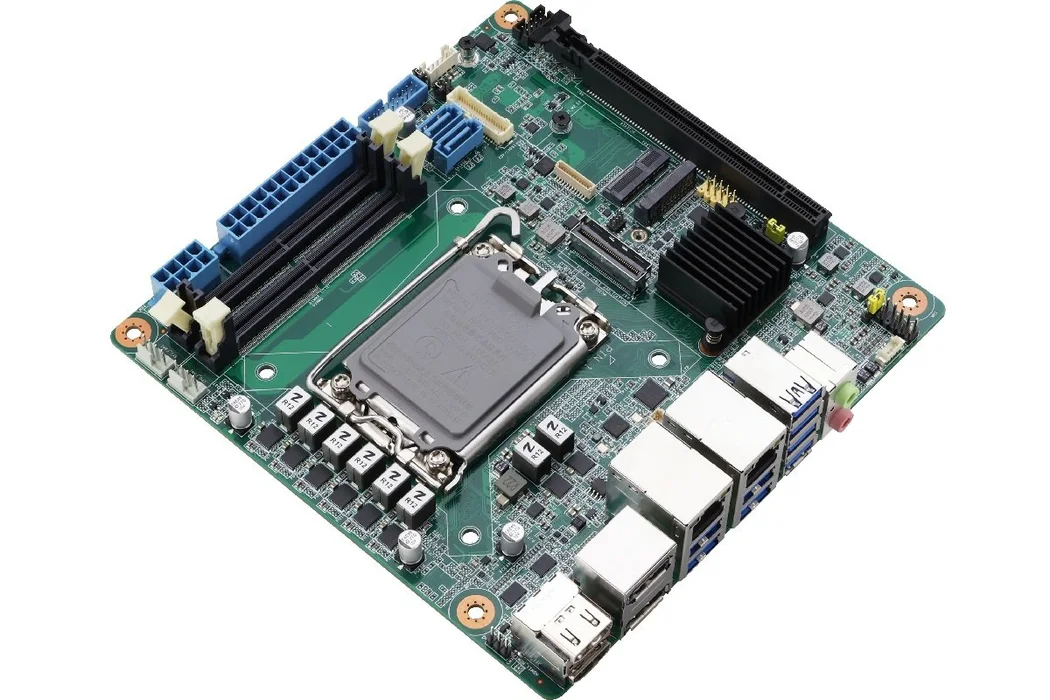

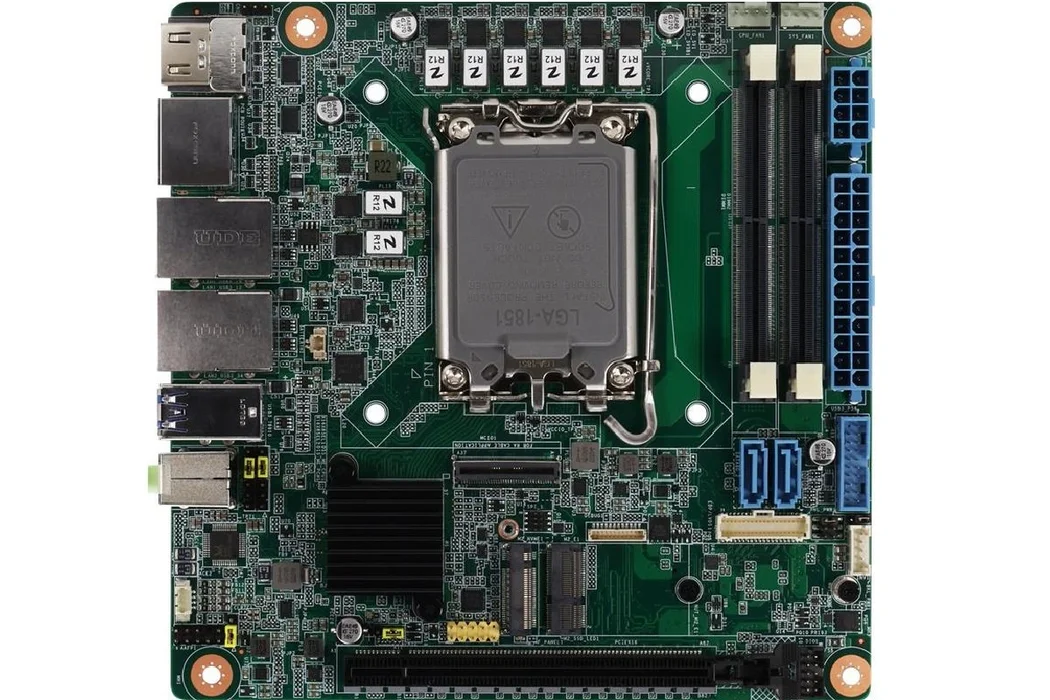

MIX-Q870A1-A10
A Mini-ITX motherboard for Intel Core Ultra 200S processors, with PCIe Gen5 expansion, DDR5 memory, and multiple storage interfaces.
- Processor
- Intel Core Ultra 200S, LGA1851 socket, up to 65W
Authorized AAEON distributor
Specifications
- Processor / supported family
- Intel Core Ultra 200S, LGA1851 socket, up to 65W
- Maximum memory (GB)
- 96
- Form factor / system type
- Mini-ITX
- Data LAN ports
- 2
- Memory type
- DDR5 SO-DIMM / CSO-DIMM
- Memory sockets
- 2
- Memory data rate (MT/s)
- Up to 6400
- Ethernet specification
- 1 x 1GbE Intel I219-LM + 1 x 2.5GbE Intel I226-V

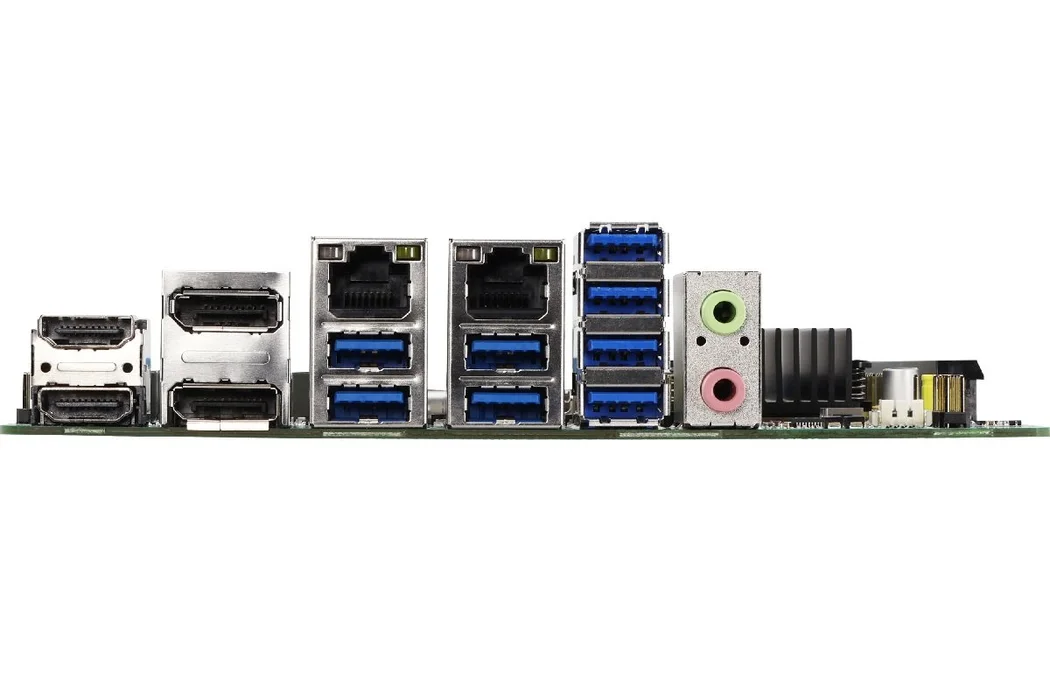

- USB configuration
- 10 USB 3.2 connections: eight rear I/O and two internal
- M.2 Key E
- 2230
- M.2 Key M
- 2 slots
- SATA connectors
- 2
- HDMI ports
- 2
- DisplayPort ports
- 2
- Independent displays
- 4
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Width (mm)
- 170
- Length (mm)
- 170
- TPM
- 2.0
- Power input details
- ATX
- PCIe expansion
- PCIe Gen5 x16, supports bifurcation
- Processor family
- Intel Core Ultra
- Configuration notes
- Socketed processor, memory, storage, and cooling must be selected for the finished system.
Ask us for current product status and availability.
