Medical panel PC
Onyx Venus-244P
24" Dual Hot Swappable Battery Medical AI Cart Computer.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-244P platform details
- Platform
- Medical panel PC
- Screen size (in)
- 23.8
- Resolution
- 1920 × 1080(FHD)
- Touch technology
- PCT /AG (optional)
- Panel luminance (cd/m²)
- 250nits
- Processor / supported family
- Intel® Arrow Lake Core™ Ultra 5 225U
- Ethernet specification
- 1.5kv isolated Gigabit LAN x2
- Display outputs
- HDMI 2.1 x1

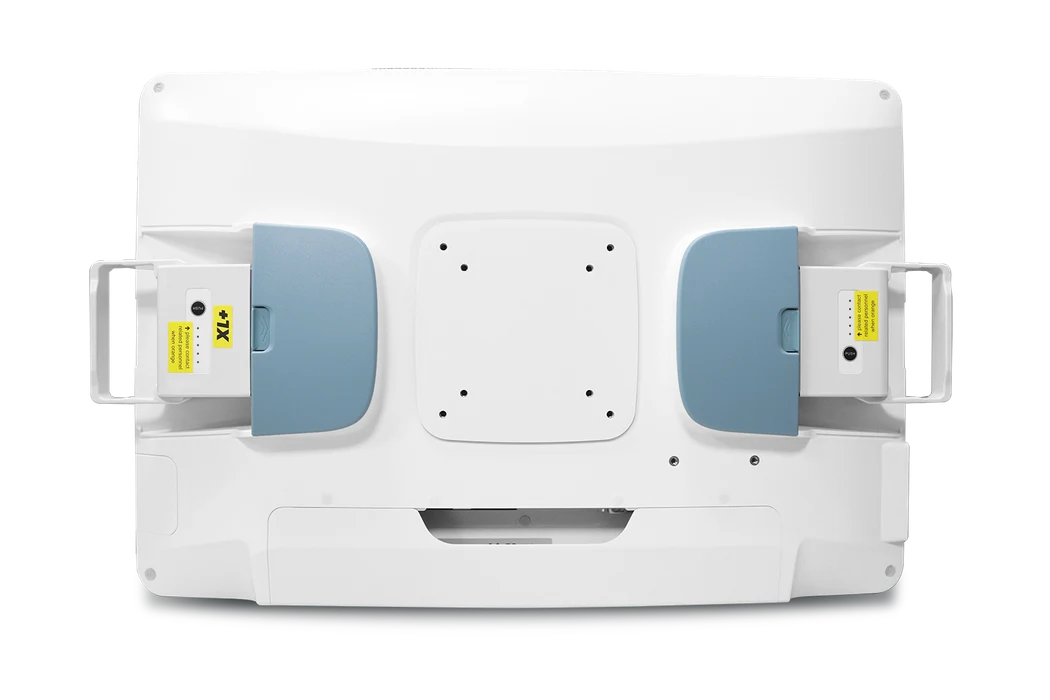

Product photographs
Technical specifications
Venus-244P common specifications
- OS support
- Windows® 11; IGEL (thin client solution); Ubuntu 24.04 LTS
- Memory options
- DDR5 up to 48 GB
- Security
- Barcode reader (optional); Imprivata RFID reader (optional); Smart Card Reader (optional)
- Storage
- M.2 SSD up to 2TB
- Wireless Communication
- Wifi 7 + Bluetooth 5.4 (optional); WiFi 6E + Bluetooth 5.3 (optional)
- Speaker
- 3Wx2
- Max. Colors
- 16.7M
- Contrast Ratio
- 3000:1
- Serial Port
- COM Port x2
- Audio
- Combo Audio Port x1
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Storage Humidity
- 10%~95%@40°C, non-condensing
- Dimension (WxDxH)
- 560 x 78.4 x 373 mm
- Net Weight
- 8 kg (17.6lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
