Medical panel PC
Onyx Venus-224
22" Dual Hot Swappable Battery Medical Cart Computer.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-224 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 21.5
- Resolution
- 1920 × 1080(FHD)
- Touch technology
- PCT (optional)
- Panel luminance (cd/m²)
- 250nits
- IP protection
- IPX1 in the back; IP65 in the front
- Processor / supported family
- Intel 11th generation Core i7-1165G7 / Core i5-1135G7
- Ethernet specification
- 1.5kv isolated Gigabit LAN x2

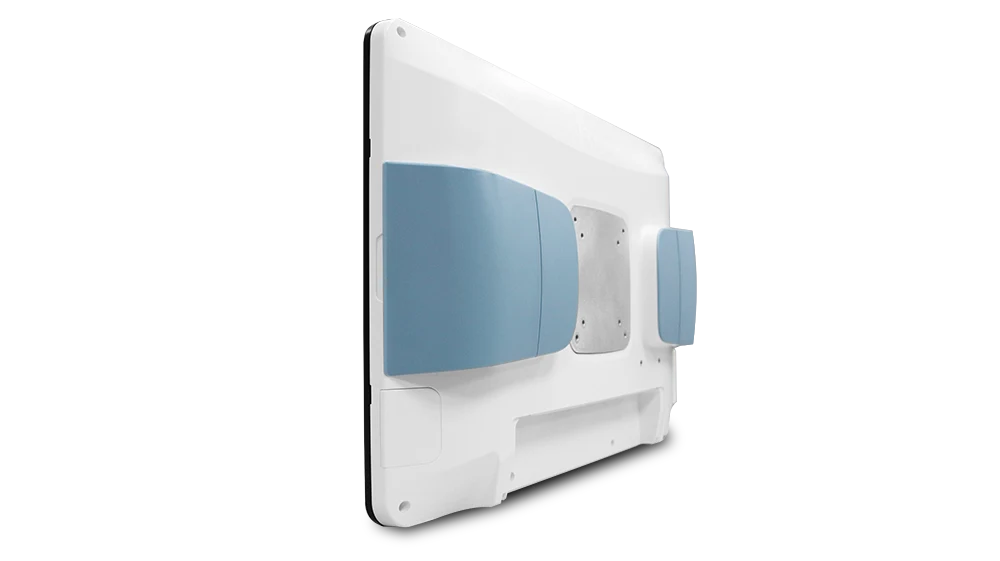

Product photographs
Technical specifications
Venus-224 common specifications
- Display outputs
- HDMI x 1
- OS support
- Windows® 10; Windows® 11; IGEL (thin client solution); Ubuntu 20.04 LTS
- Memory options
- DDR4 up to 64 GB
- Security
- Trusted Platform Module 2.0; Barcode reader (optional); Imprivata RFID reader (optional); Smart Card Reader (optional)
- Storage
- M.2 SSD up to 1TB
- Wireless Communication
- WiFi 6E + Bluetooth 5.3 (optional); 802.11 a/b/g/n/ac/ax (optional)
- Speaker
- 3Wx2
- Max. Colors
- 16.7M
- Contrast Ratio
- 1000:1
- USB
- USB 2.0; USB 3.0 (Type-A)
- Serial Port
- COM Port x2
- Audio
- Combo Audio Port x1
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Storage Humidity
- 10%~95%@40°C, non-condensing
- Dimension (WxDxH)
- 510 x 78.4 x 345.8 mm
- Net Weight
- 6kg (13.2lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
