Medical panel PC
Onyx Venus-173
17" Intel i7/i5/i3 Medical Panel PC with Dual Battery.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-173 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 17
- Resolution
- 1280 × 1024 (XGA)
- Panel luminance (cd/m²)
- 250nits
- Processor / supported family
- Intel Skylake dual-core i5
- Ethernet specification
- Gigabit LAN x2
- Display outputs
- HDMI x 1
- OS support
- Windows® 7; Windows® 10; Ubuntu 18.04 LTS; IGEL (thin client solution)

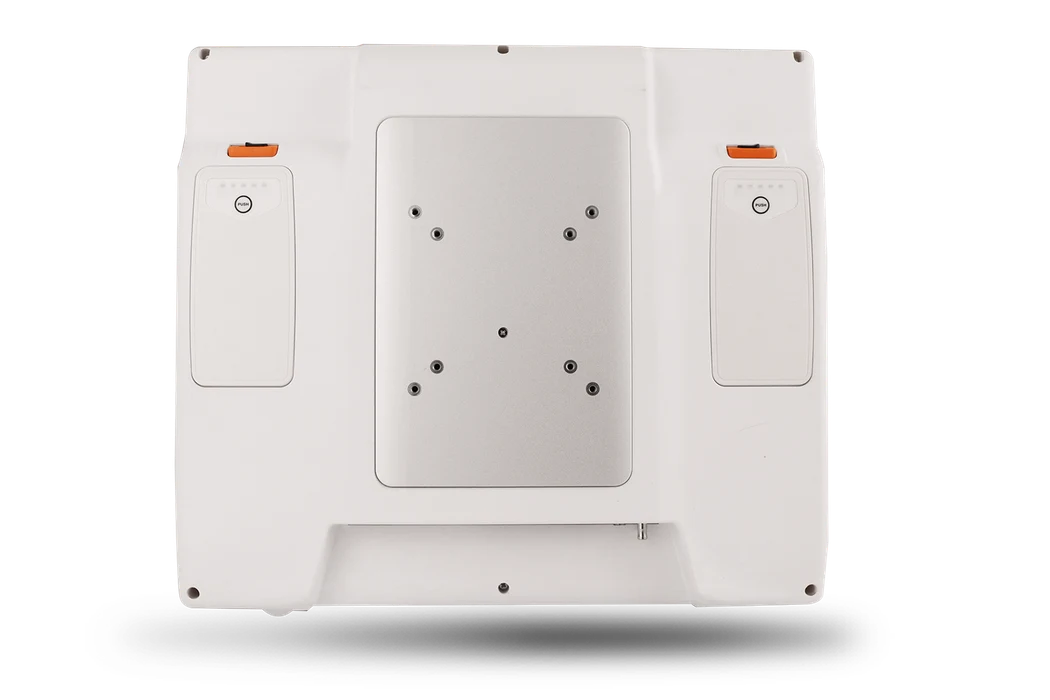

Product photographs
Technical specifications
Venus-173 common specifications
- Memory options
- DDR4 up to 16 GB
- Security
- Trusted Platform Module 2.0
- Graphics
- Intel® Graphics
- Storage
- M.2 SSD up to 512GB
- Wireless Communication
- 802.11 ac/a/b/g/n; BT 4.0 (optional)
- Speaker
- 3Wx2
- Max. Colors
- 16.7M
- Contrast Ratio
- 1000:1
- USB
- USB 2.0; USB 3.0 (Type-A)
- Serial Port
- COM Port x1
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Storage Humidity
- 10%~95%@40°C, non-condensing
- Dimension (WxDxH)
- 384 x 57 x 345 mm
- Net Weight
- 4.5 kg (9.9lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
