Medical panel PC
Onyx Venus-154 Plus
15.6" Intel Medical AI Panel PC.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-154 Plus platform details
- Platform
- Medical panel PC
- Screen size (in)
- 15.6
- Resolution
- 1920 × 1080(FHD)
- Touch technology
- Capacitive Multi-Touch
- Panel luminance (cd/m²)
- 300nits
- Processor / supported family
- Intel Meteor Lake Core Ultra 125U
- Ethernet specification
- Gigabit LAN x 3
- Display outputs
- Display Port x1

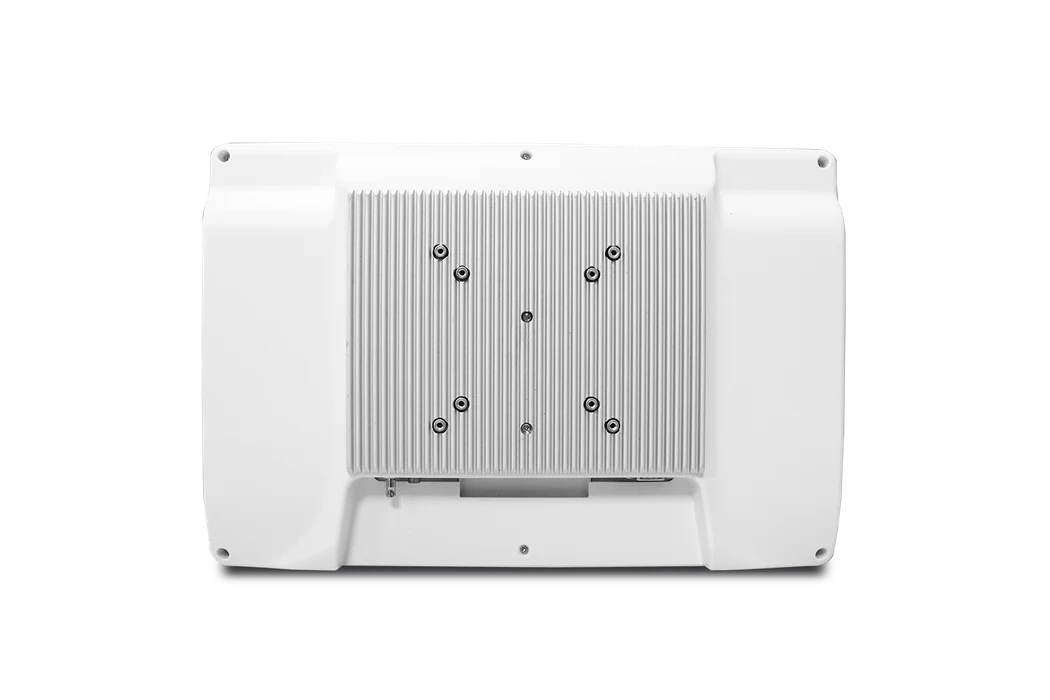

Product photographs
Technical specifications
Venus-154 Plus common specifications
- OS support
- Windows® 11; IGEL; Ubuntu 24.04 LTS
- Memory options
- DDR5 up to 32 GB
- Security
- Trusted Platform Module 2.0
- Graphics
- Intel® Graphics
- Storage
- M.2 SSD up to 1TB
- Wireless Communication
- WiFi 6E + Bluetooth 5.3 (optional)
- Speaker
- 3Wx2
- Max. Colors
- 16.2M
- Contrast Ratio
- 1000:1
- View Angle
- 178˚(H)/178˚(V)
- USB
- USB 2.0; USB 3.0 (Type-A)
- Serial Port
- Isolated COM port x1(optional)
- Power Supply
- DC-in
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 392 x 52 x 265 mm
- Net Weight
- 2.7kg (5.9lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
