Medical panel PC
Onyx Venus-124 Plus
11.6" Intel Medical AI Panel PC.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-124 Plus platform details
- Platform
- Medical panel PC
- Screen size (in)
- 11.6
- Resolution
- 1920 × 1080(FHD)
- Touch technology
- Capacitive Multi-Touch
- Panel luminance (cd/m²)
- 350nits
- IP protection
- IPX1 in the back; IP65 in the front
- Processor / supported family
- Intel Meteor Lake Core Ultra 125U
- Ethernet specification
- Gigabit LAN x 3

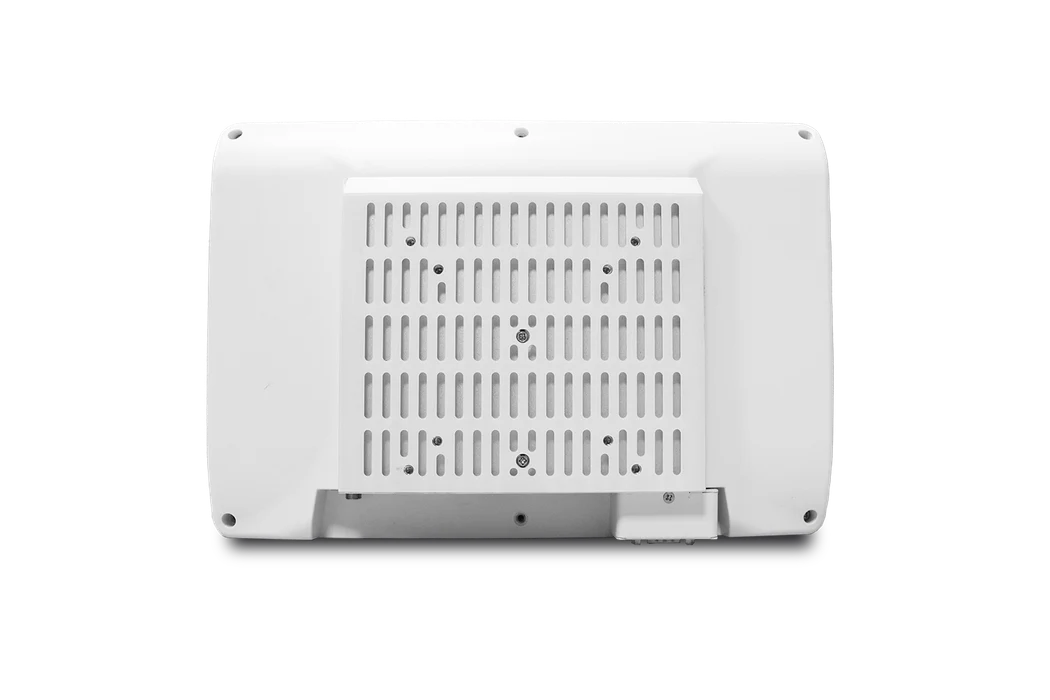

Product photographs
Technical specifications
Venus-124 Plus common specifications
- Display outputs
- Display Port x1
- OS support
- Windows® 11; IGEL (thin client solution); Ubuntu 24.04 LTS
- Memory options
- DDR5 up to 32 GB
- Security
- Trusted Platform Module 2.0
- Graphics
- Intel® Graphics
- Storage
- M.2 SSD up to 1TB
- Wireless Communication
- WiFi 6E + Bluetooth 5.3 (optional)
- Speaker
- 3Wx2
- Max. Colors
- 16.7M
- Contrast Ratio
- 800:1
- View Angle
- 178˚(H)/178˚(V)
- USB
- USB 2.0; USB 3.0 (Type-A)
- Serial Port
- Isolated COM port x1(optional)
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Storage Humidity
- 10%~95%@40°C, non-condensing
- Dimension (WxDxH)
- 300 x 57 x 205 mm
- Net Weight
- 1.9 kg (4.1lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
