Medical panel PC
Onyx SMA-1833
18.5" Fanless Slim Medical All in One PC.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
SMA-1833 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 18.5
- Resolution
- 1366 × 768(WXGA); 1920 × 1080(FHD)
- Touch technology
- Capacitive Multi-Touch
- Panel luminance (cd/m²)
- 350nits; 250nits
- Processor / supported family
- Intel® Atom x6211E; Intel® Celeron N6210; Intel® Atom x6425E
- Ethernet specification
- Gigabit LAN x2 (Isolated x1 + non-isolated x1)
- Display outputs
- HDMI 2.0b x1

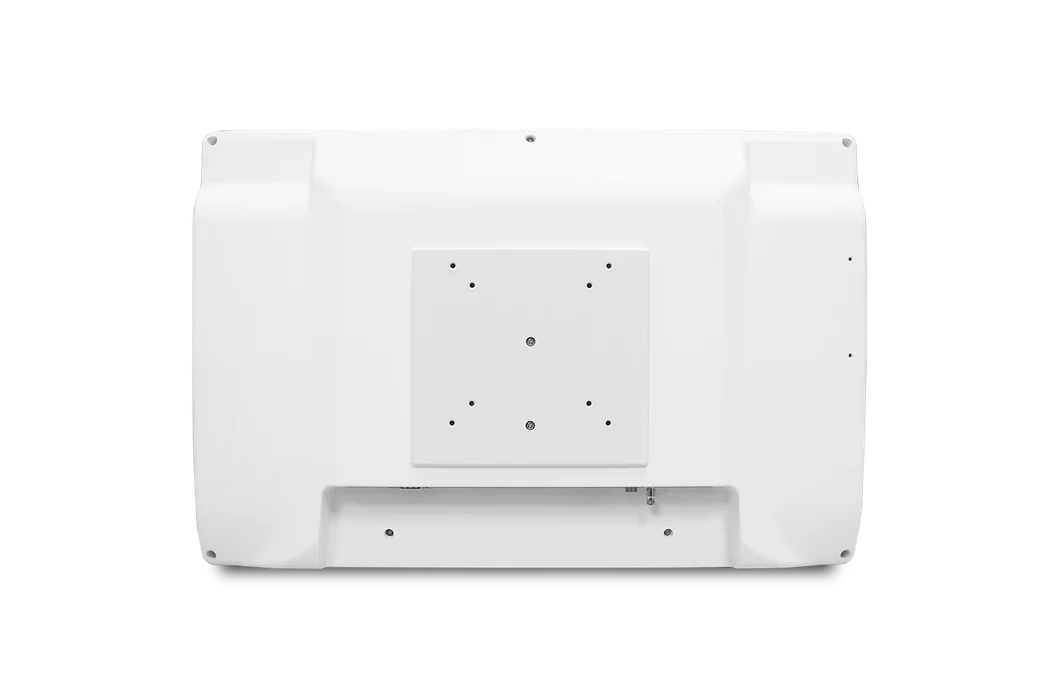

Product photographs
Technical specifications
SMA-1833 common specifications
- OS support
- Windows® 10; Windows® 11; Linux®
- Memory options
- DDR4 SO-DIMM up to 32 GB
- Security
- Trusted Platform Module 2.0; RFID Reader
- Storage
- M.2 2242 (B-key) SATA SSD x 1; 2.5" SATA SSD x 1(Optional)
- Wireless Communication
- 802.11 a/b/g/n/ac/ax + BlueTooth 5.3 (Optional)
- Speaker
- 3Wx2
- Function Key
- LCD Brightness Up/Down; Touch Screen On/Off
- Max. Colors
- 16.7M
- Contrast Ratio
- 1000:1
- View Angle
- 178˚(H)/178˚(V) /170˚(H)/160˚(V)
- Type
- AHVA/ADS
- USB
- USB 2.0
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 40°C(32°F ~ 104°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 457 mm x 303 mm x 50mm
- Net Weight
- 4.4kg (9.7lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
