Medical panel PC
Onyx SMA-1233
11.6" Fanless Slim Medical All in One PC.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
SMA-1233 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 11.6
- Resolution
- 1366 × 768(WXGA); 1920 × 1080(FHD)
- Touch technology
- Capacitive Multi-Touch
- Panel luminance (cd/m²)
- 300nits; 250nits
- IP protection
- IPX1 in the back; IP65 in the front
- Processor / supported family
- Intel® Celeron N6210; Intel® Atom x6211E; Intel® Atom x6425E
- Ethernet specification
- Gigabit LAN x2 (Isolated x1 + non-isolated x1)

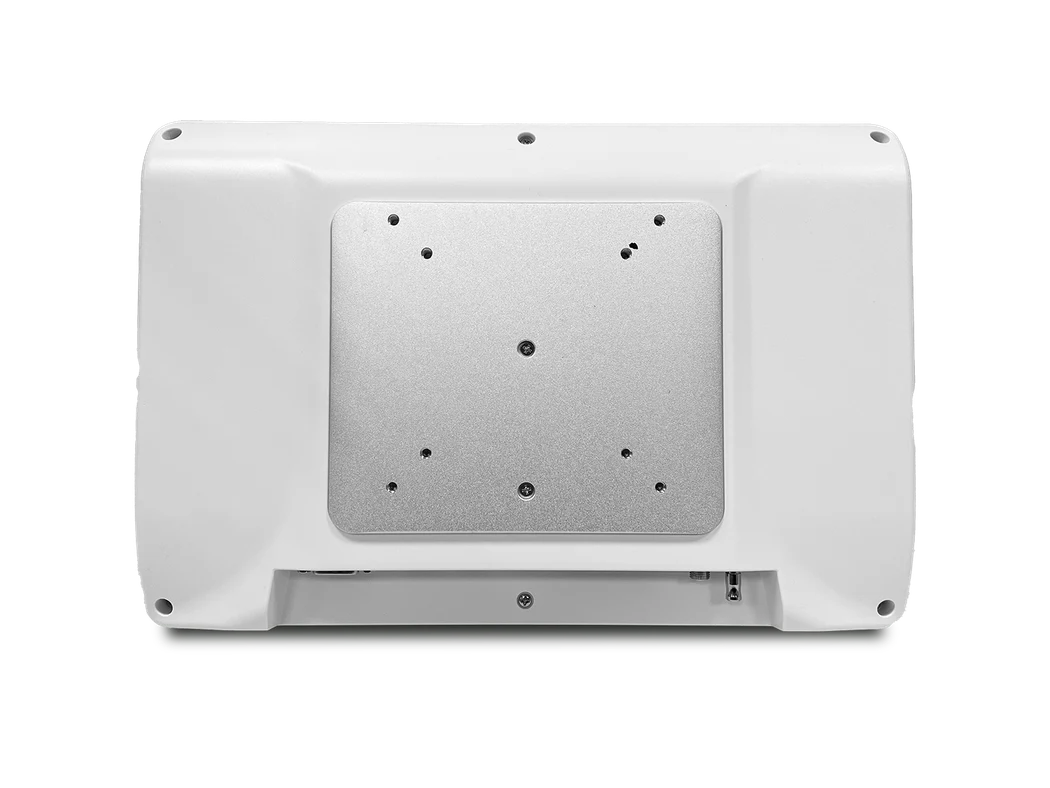

Product photographs
Technical specifications
SMA-1233 common specifications
- Display outputs
- HDMI 2.0b x1
- OS support
- Windows® 10; Windows® 11; Linux®
- Memory options
- DDR4 SO-DIMM up to 32 GB (In-Band ECC optional)
- Security
- Trusted Platform Module 2.0; RFID Reader(optional)
- Storage
- M.2 2242 (B-key) SATA SSD x 1
- Wireless Communication
- 802.11 a/b/g/n/ac/ax + BlueTooth 5.3 (Optional)
- Speaker
- 2W x2
- Function Key
- Touch Screen On/Off; LCD Brightness Up/Down
- Max. Colors
- 16.2M; 262K
- Contrast Ratio
- 800:1; 500:1
- View Angle
- 178˚(H)/178˚(V); 90˚(H)/60˚(V)
- Type
- AHVA; TN
- USB
- USB 3.0 (Type-A)
- Serial Port
- RS232 x 1
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 40°C(32°F ~ 104°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 300 x 205 x 47.3 mm
- Net Weight
- 1.50kg (3.31lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
