Vehicle computer
Avalue VMS-RPPS
An in-vehicle computing platform with ignition power control and expansion for connected vehicle applications.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
VMS-RPPS platform details
- Platform
- Vehicle computer
- Processor / supported family
- Intel Core 7 150UL / Core 5 120UL / Core 3 100UL / U300L
- Maximum memory (GB)
- 64
- Memory type
- DDR5 SO-DIMM, non-ECC
- Ethernet specification
- 4 x 2.5GbE Intel I226IT; PoE BOM option
- Processor family
- Intel Core
- Memory sockets
- 2
- Data LAN ports
- 4

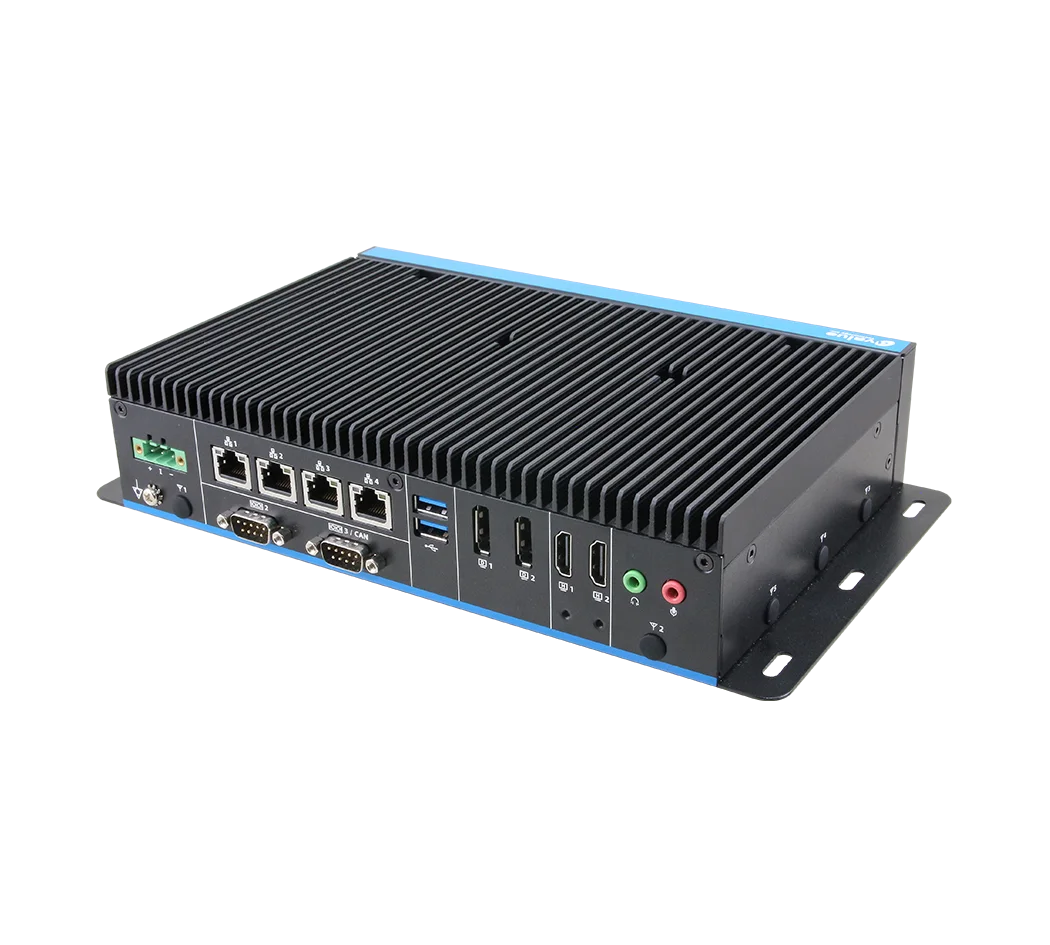

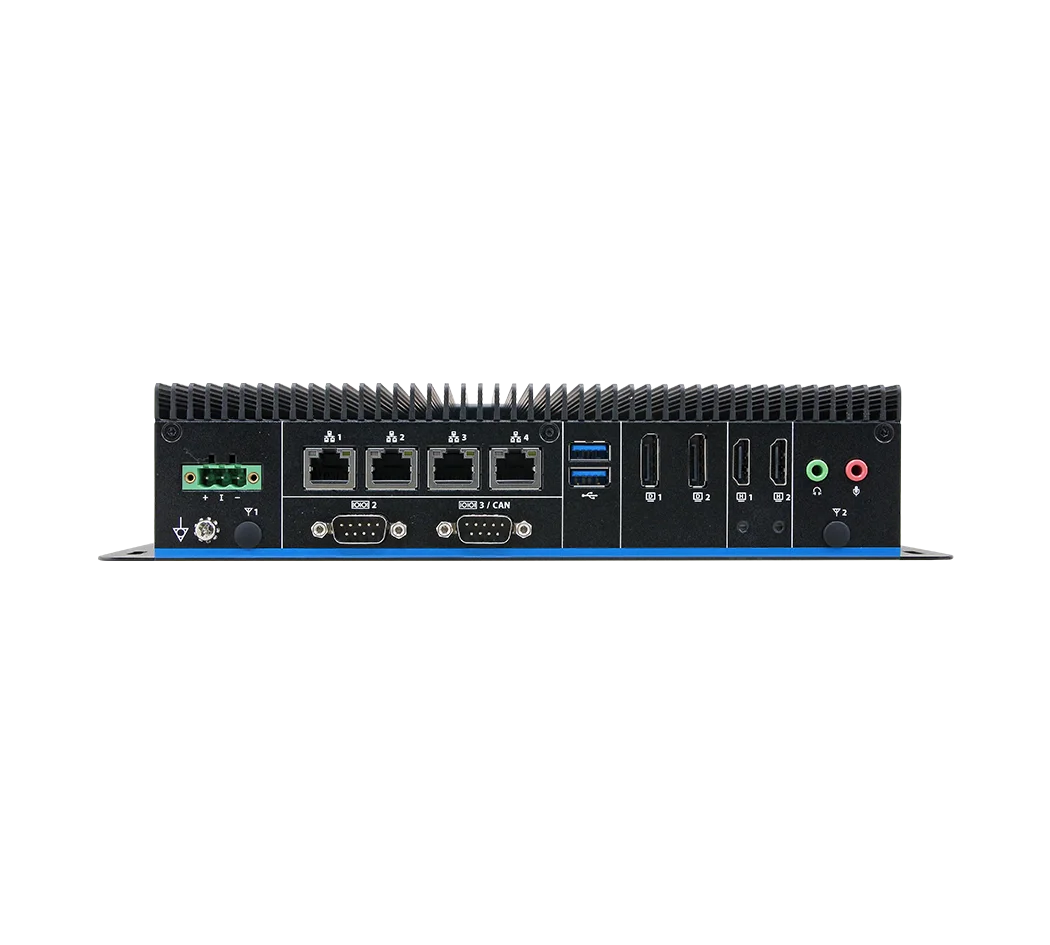

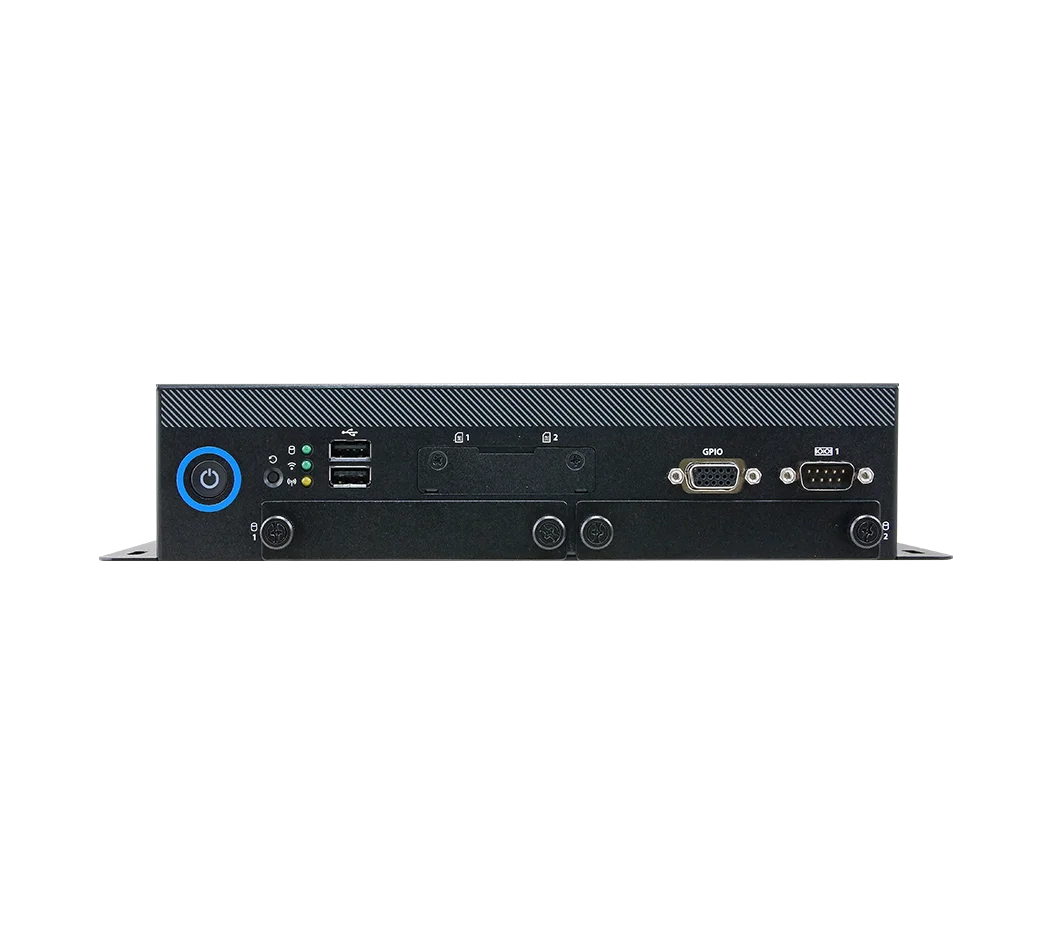

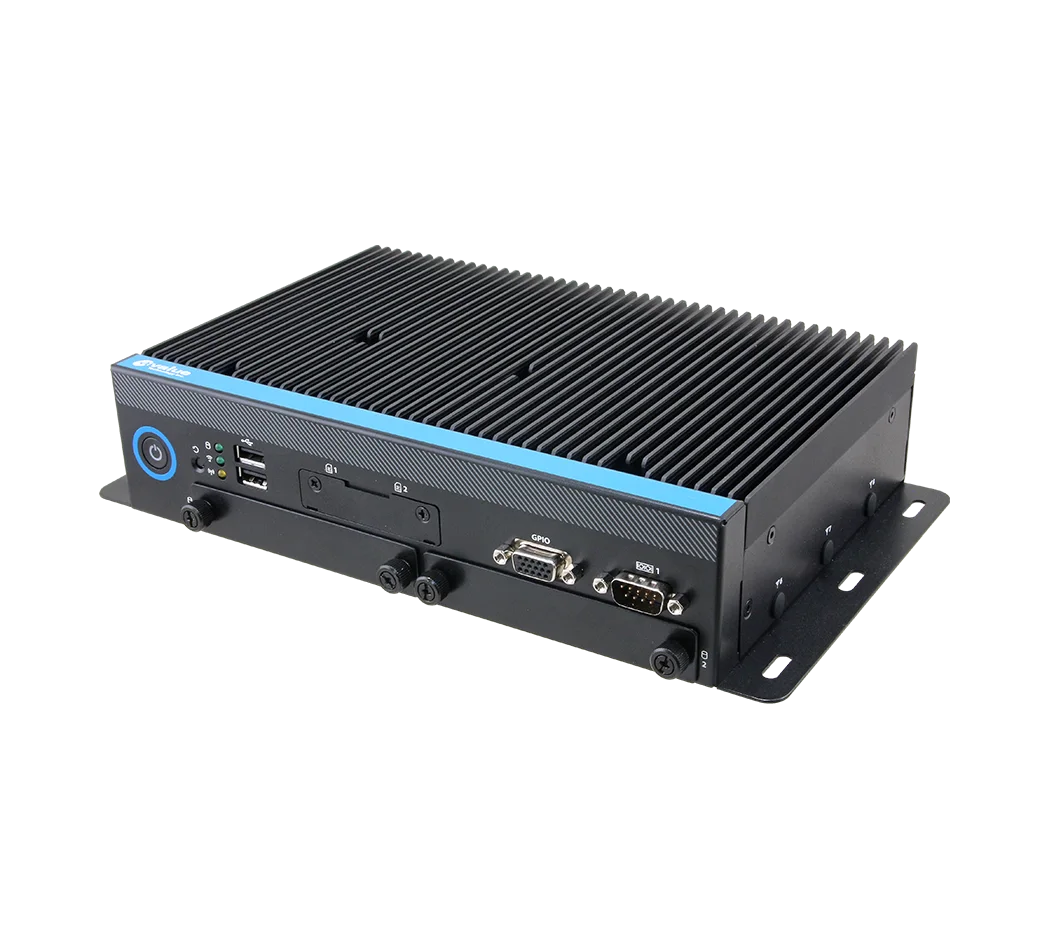

Product photographs
Technical specifications
VMS-RPPS common specifications
- USB 2.0 ports
- 2
- USB 3.x ports, excluding Type-C
- 2
- COM ports
- 3
- Serial interfaces
- 3 RS-232/422/485; COM2/3 through cable
- GPIO bits
- 10
- M.2 Key B
- 3042/3052; PCIe / USB; external SIM
- M.2 Key E
- 2230; Wi-Fi / Bluetooth
- M.2 Key M
- 2280; PCIe x4 NVMe
- HDMI ports
- 2
- DisplayPort ports
- 2
- DC input minimum (V)
- 9
- DC input maximum (V)
- 60
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 239
- Length (mm)
- 160
- Height (mm)
- 56
- Weight (kg)
- 2.6
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0
- IP protection
- IP50
- Mounting
- Wall
- Fanless
- Yes
- GNSS
- u-blox NEO-M9N
- Vehicle power control
- Ignition control / vehicle power management
- Mini PCIe slots
- 1
- Drive bays
- 2
- Drive bay specification
- 2.5-inch SATA III, maximum 15 mm
- RAID support
- RAID 0/1
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
