Compact box PC
Avalue NUC-ADN
A compact fanless Intel N97 system with dual 2.5GbE, serial I/O, and USB-C display and power capabilities.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
NUC-ADN platform details
- Platform
- Compact box PC
- Processor / supported family
- Intel Processor N97
- Maximum memory (GB)
- 16
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE Intel I226V
- Display outputs
- 2 HDMI 2.0b at 4096x2160 / 60 Hz; DP through USB-C
- Processor family
- Intel Processor N
- Data LAN ports
- 2
Choose your NUC-ADN configuration
One supplied ordering number. Confirm your requirements with Edge.
The standard adapter is 60W. Avalue specifies the optional 120W adapter for full load with USB-C power delivery.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

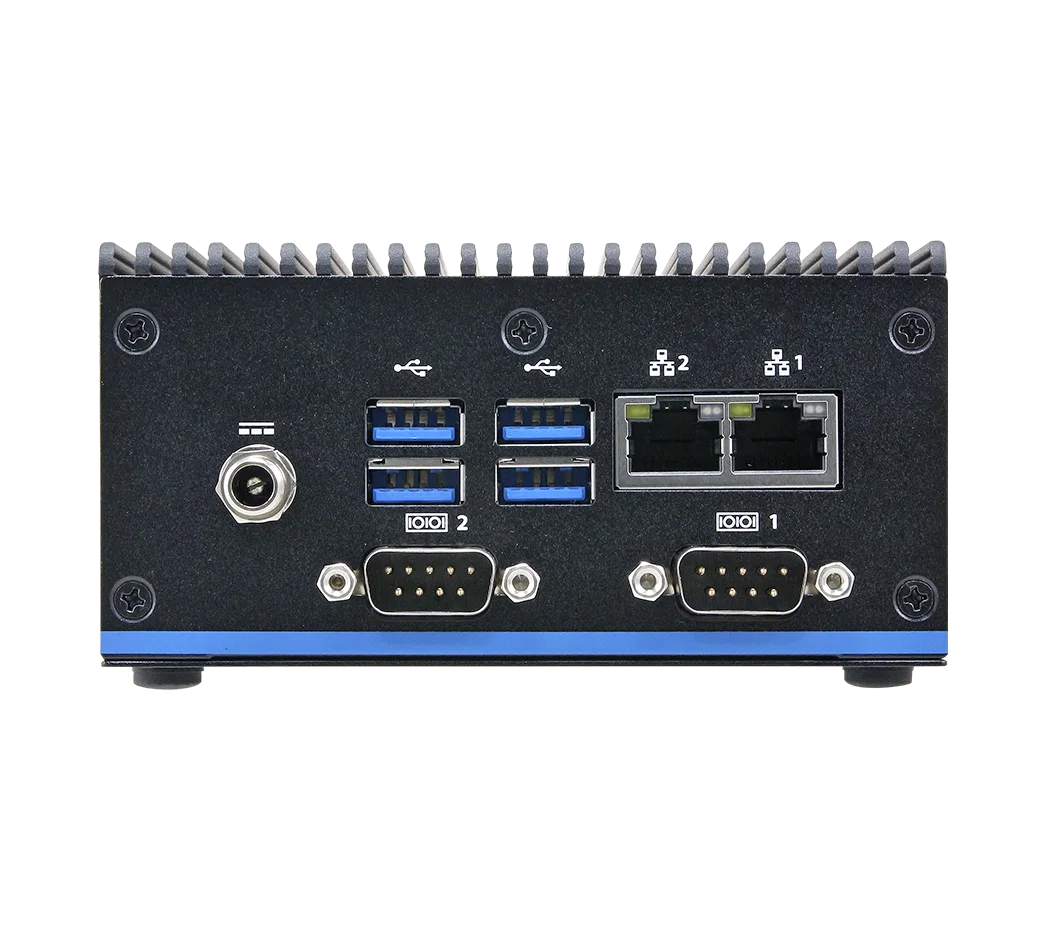

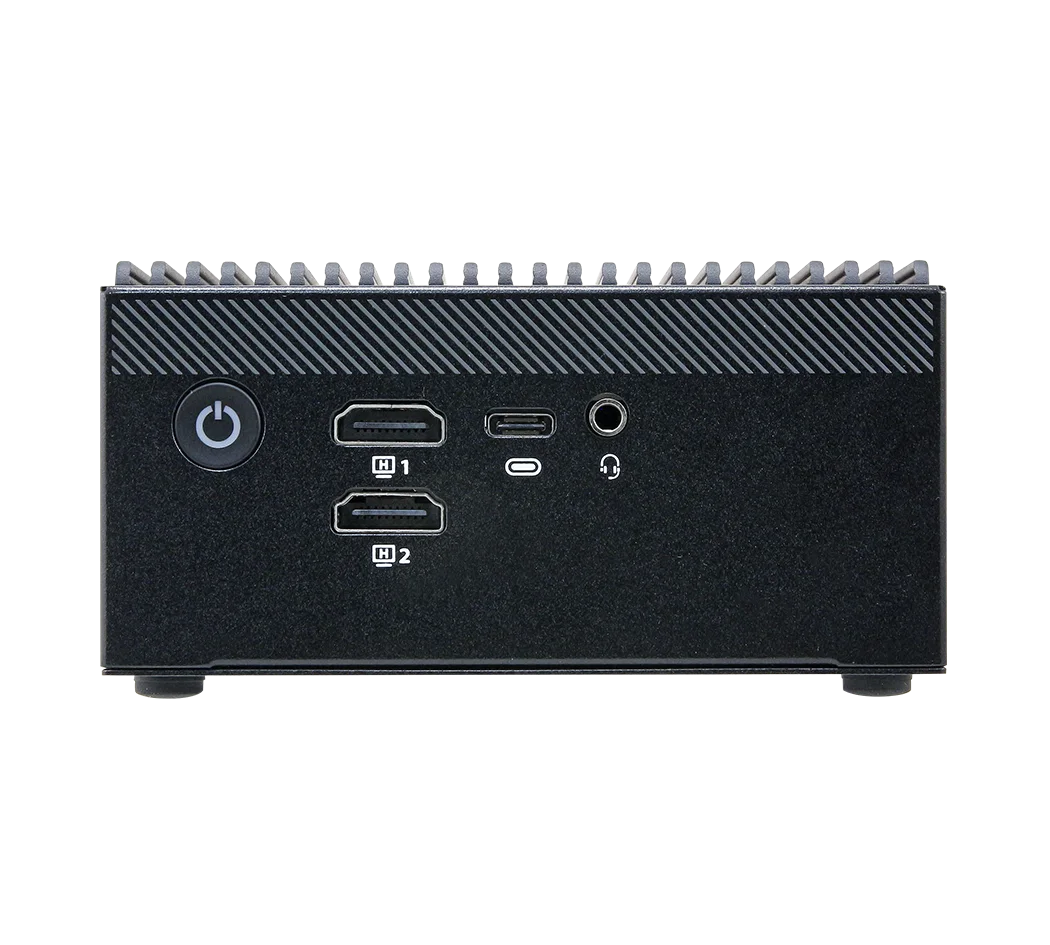

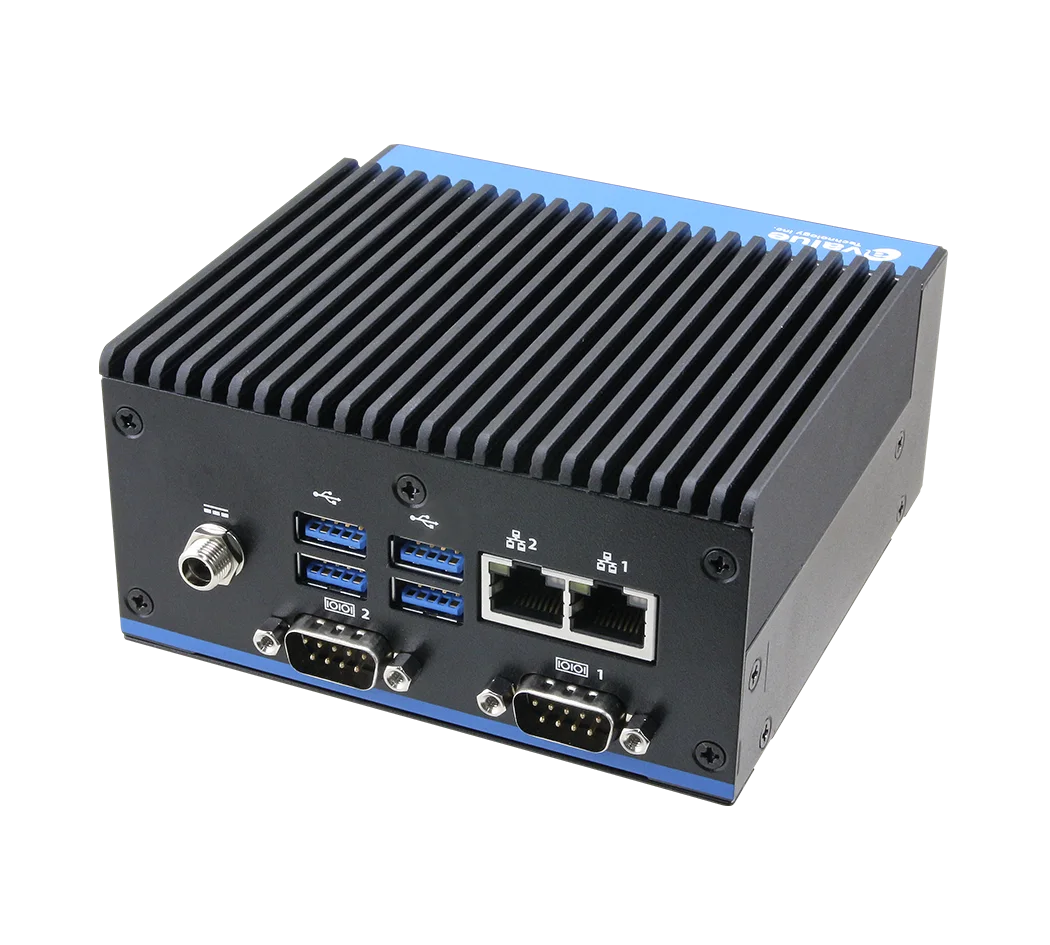

Product photographs
Technical specifications
NUC-ADN common specifications
- Memory sockets
- 1
- Memory data rate (MT/s)
- 4800
- USB 3.x ports, excluding Type-C
- 4
- USB Type-C ports
- 1
- USB configuration
- USB-C: USB 3.2 Gen2, DP, PD up to 30W
- COM ports
- 2
- Serial interfaces
- 1 RS-232 + 1 RS-232/422/485
- M.2 Key E
- 2230; PCIe / USB / CNVi
- HDMI ports
- 2
- Independent displays
- 3
- DC input minimum (V)
- 12
- DC input maximum (V)
- 12
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 50
- Operating temperature conditions
- 0.5 m/s airflow
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 115
- Length (mm)
- 111.2
- Height (mm)
- 58
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0
- Mounting
- VESA / DIN rail standard
- Fanless
- Yes
- Adapter power (W)
- 60
- Drive bays
- 1
- Drive bay specification
- 2.5-inch, maximum 7 mm
- Configuration notes
- The standard adapter is 60W. Avalue specifies the optional 120W adapter for full load with USB-C power delivery.
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
