Medical barebone
Avalue MAB-T600
A medical barebone computing platform with expansion for graphics and application-specific cards. CPU, memory, storage, and OS are configured separately.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
MAB-T600 platform details
- Platform
- Medical barebone
- Processor / supported family
- Socket LGA1700; Intel 12th/13th Gen Core i9/i7/i5/i3, Pentium, Celeron; CPU not bundled
- Maximum memory (GB)
- 64
- Memory type
- DDR5 UDIMM
- Ethernet specification
- 1 x 1GbE I219-V + 1 x 2.5GbE I225-LM
- Display outputs
- HDMI 2.0b / DP 1.4a: 3840x2160 at 60 Hz
- Processor family
- Intel Core
- Data LAN ports
- 2
Choose your MAB-T600 configuration
One supplied ordering number. Confirm your requirements with Edge.
CPU, RAM, storage, and OS are not included in the listed barebone. Avalue limits its medical certification to the barebone configuration; added cards or modules may require recertification.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.
Photos and video

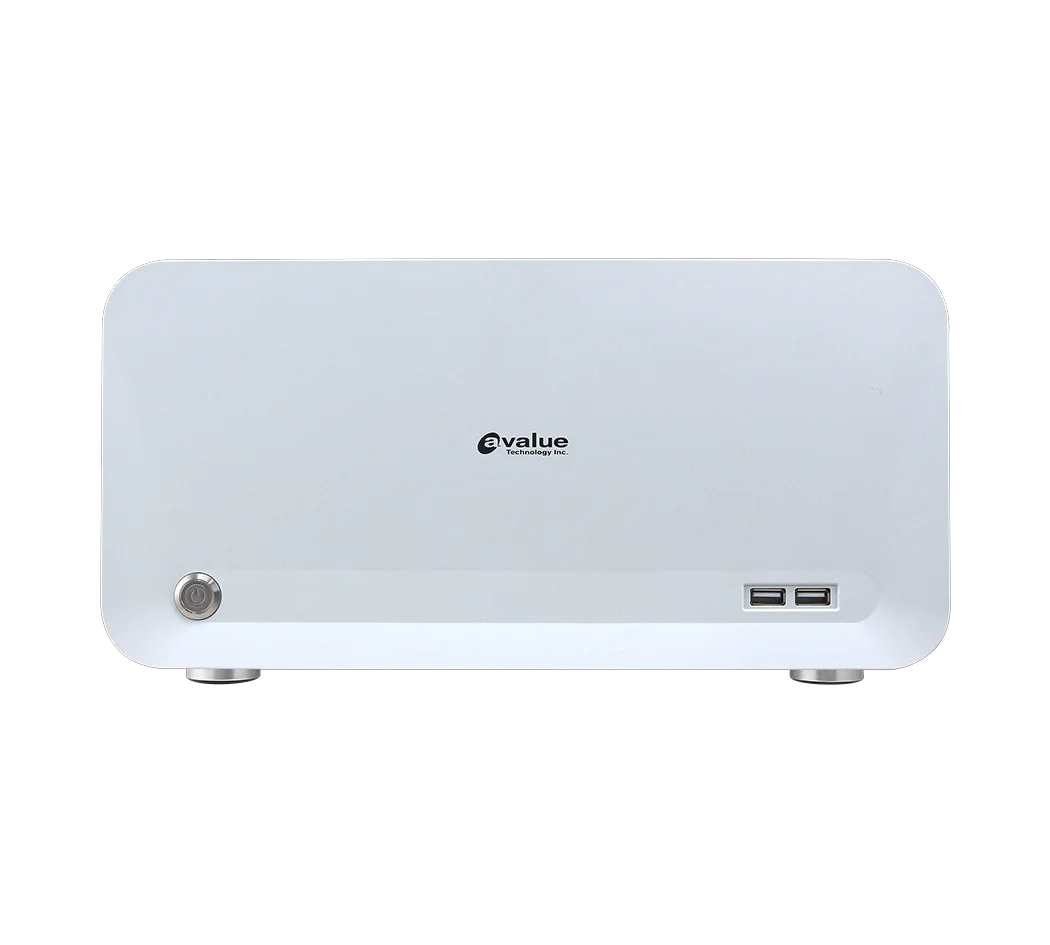

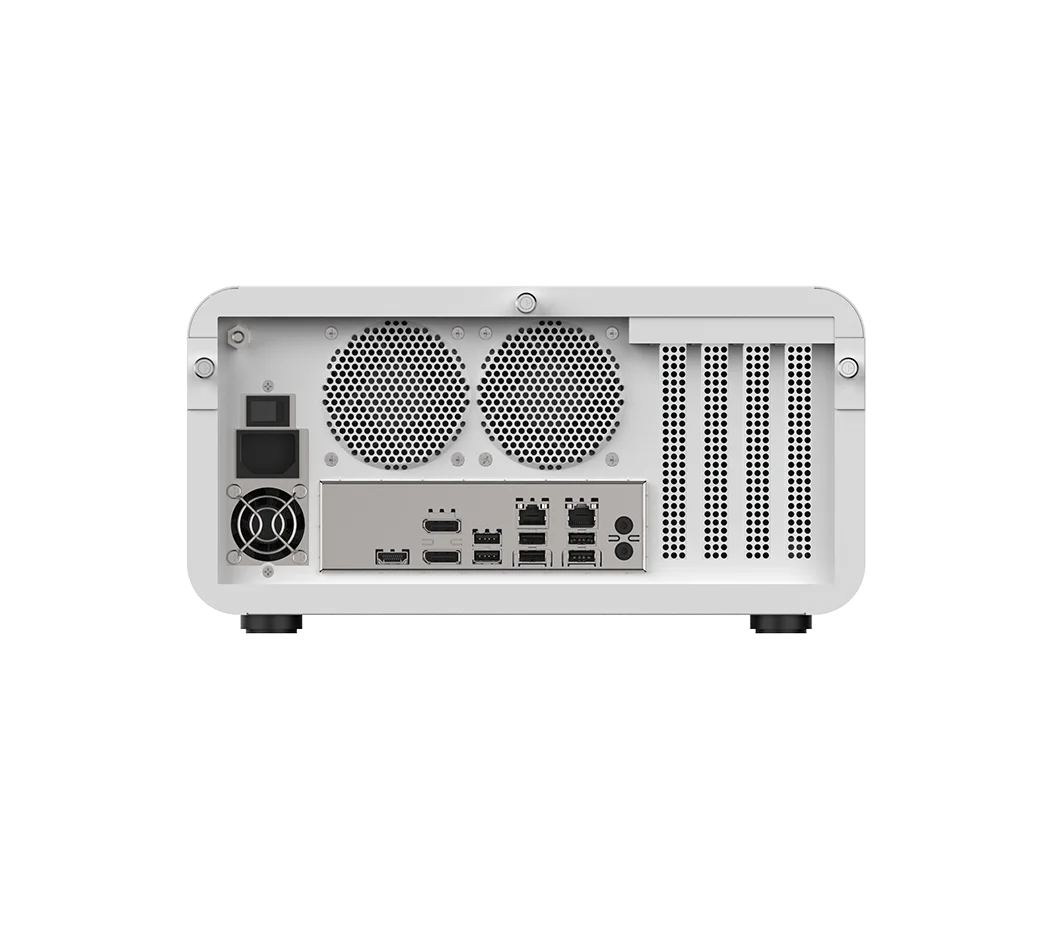

MAB-T600 platform overview
Technical specifications
MAB-T600 common specifications
- Memory sockets
- 2
- Memory data rate (MT/s)
- 4800 / 5600 CPU-dependent
- USB 2.0 ports
- 4
- USB 3.x ports, excluding Type-C
- 4
- M.2 Key E
- 2230 CNVi; PCIe shares slot 4
- M.2 Key M
- 2242/2280/22110 NVMe PCIe x4 / SATA
- HDMI ports
- 1
- DisplayPort ports
- 2
- Independent displays
- 3
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 40
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 330
- Length (mm)
- 344
- Height (mm)
- 160
- Weight (kg)
- 7
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0 onboard
- IP protection
- IPX1
- Internal PSU power (W)
- 500
- PCIe expansion
- 1 Gen5 x16; 3 Gen3 x1 (x4 open-ended / 2 x16 physical)
- Drive bays
- 2
- Drive bay specification
- 2.5-inch SATA; 3.5-inch optional
- GPU options
- Optional NVIDIA RTX 4000 Ada; additional options on product page
- Included configuration
- RX610H motherboard, 500W medical PSU, 65W CPU cooler. CPU/RAM/storage/OS on request.
- Configuration notes
- CPU, RAM, storage, and OS are not included in the listed barebone. Avalue limits its medical certification to the barebone configuration; added cards or modules may require recertification.
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
