Compact box PC
Avalue EPC-TWL
A fanless Intel Twin Lake system with dual 2.5GbE and mounting options for equipment integration.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
EPC-TWL platform details
- Platform
- Compact box PC
- Processor / supported family
- Intel N150 default; N250 / Core 3 N355 optional
- Maximum memory (GB)
- 16
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE Intel I226V
- Display outputs
- HDMI 2.0b / DP 1.4a: 4096x2160 at 60 Hz
- Processor family
- Intel Processor N / Core N / Atom
- Memory sockets
- 1

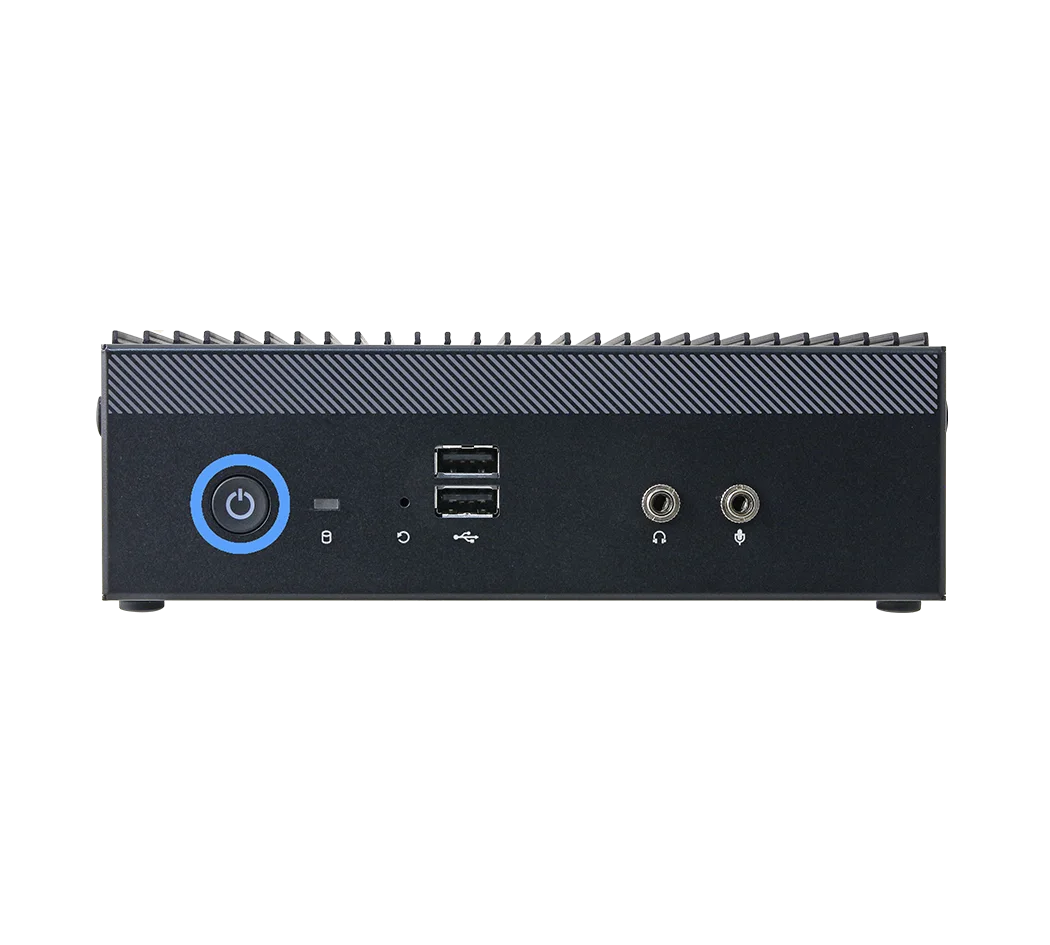

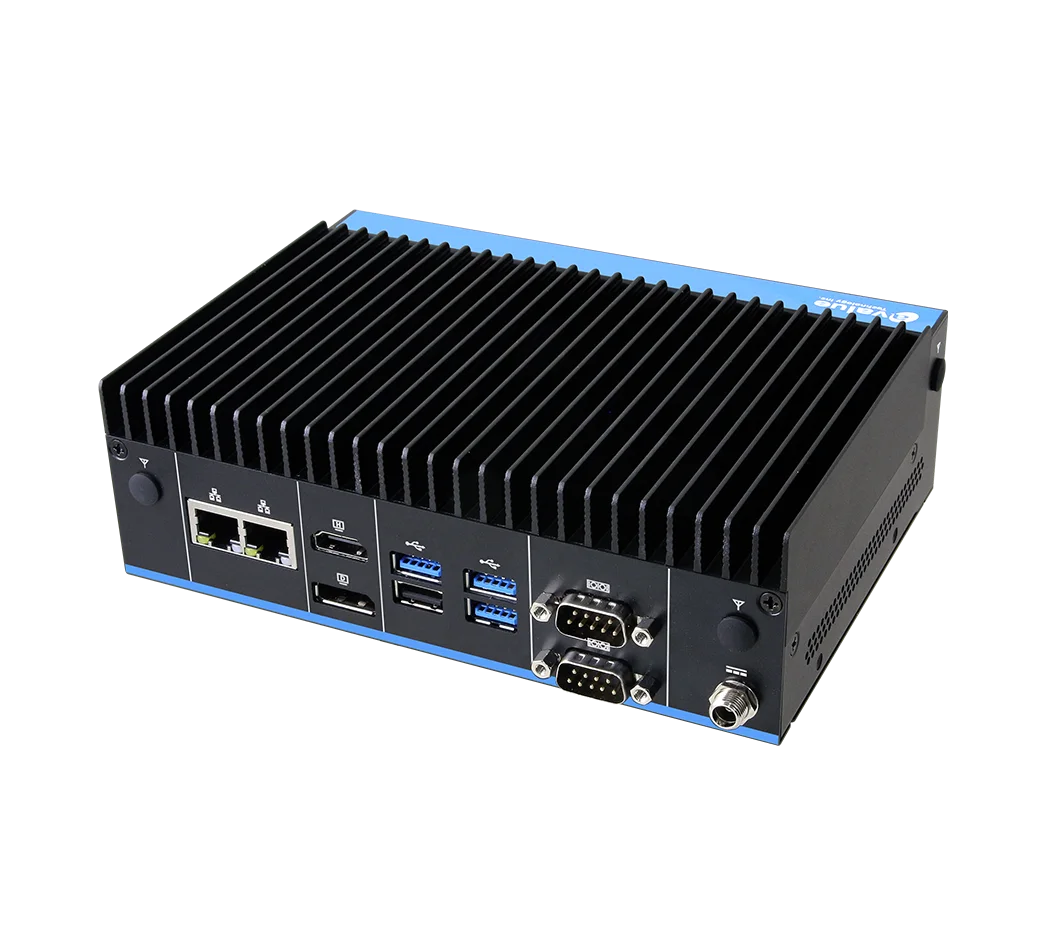

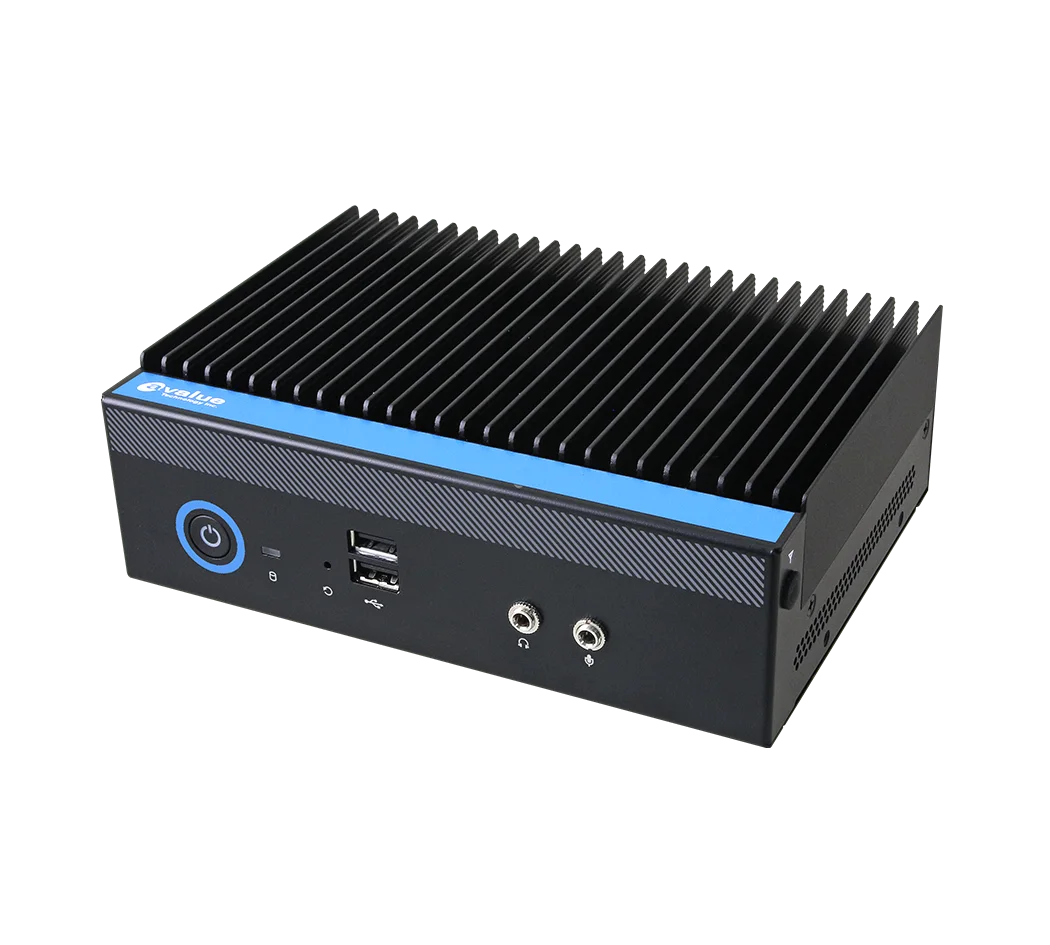

Product photographs
Technical specifications
EPC-TWL common specifications
- Memory data rate (MT/s)
- 4800
- Data LAN ports
- 2
- USB 2.0 ports
- 3
- USB 3.x ports, excluding Type-C
- 3
- COM ports
- 2
- M.2 Key B
- 2242 SSD / 3042 / 3052 expansion; PCIe x1 / USB
- M.2 Key E
- 2230; PCIe / USB
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 2
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions
- 0.5 m/s airflow
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 177
- Length (mm)
- 127
- Height (mm)
- 57
- Weight (kg)
- 1.3
- OS support
- Windows 11 / Linux
- TPM
- 2.0 onboard
- Mounting
- Stand / wall standard; VESA / DIN rail optional
- Fanless
- Yes
- Power input details
- Typical 12V / 24V
- Adapter power (W)
- 120
- Drive bays
- 1
- Drive bay specification
- 2.5-inch, maximum 7 mm
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
