- Processor
- Intel Core i3-1315UE
Compact box PC
Avalue EPC-RPU
A compact fanless system with 13th Gen Intel Core processor options and storage, display, and wireless expansion.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
EPC-RPU platform details shared by listed variants
- Platform
- Compact box PC
- Maximum memory (GB)
- 32
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE Intel I226LM
- Processor family
- Intel Core
- Data LAN ports
- 2
- Memory sockets
- 1
- USB 2.0 ports
- 3
Choose your EPC-RPU configuration
2 ordering numbers. The confirmed differences are shown below.
- Processor
- Intel Core i5-1335UE
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

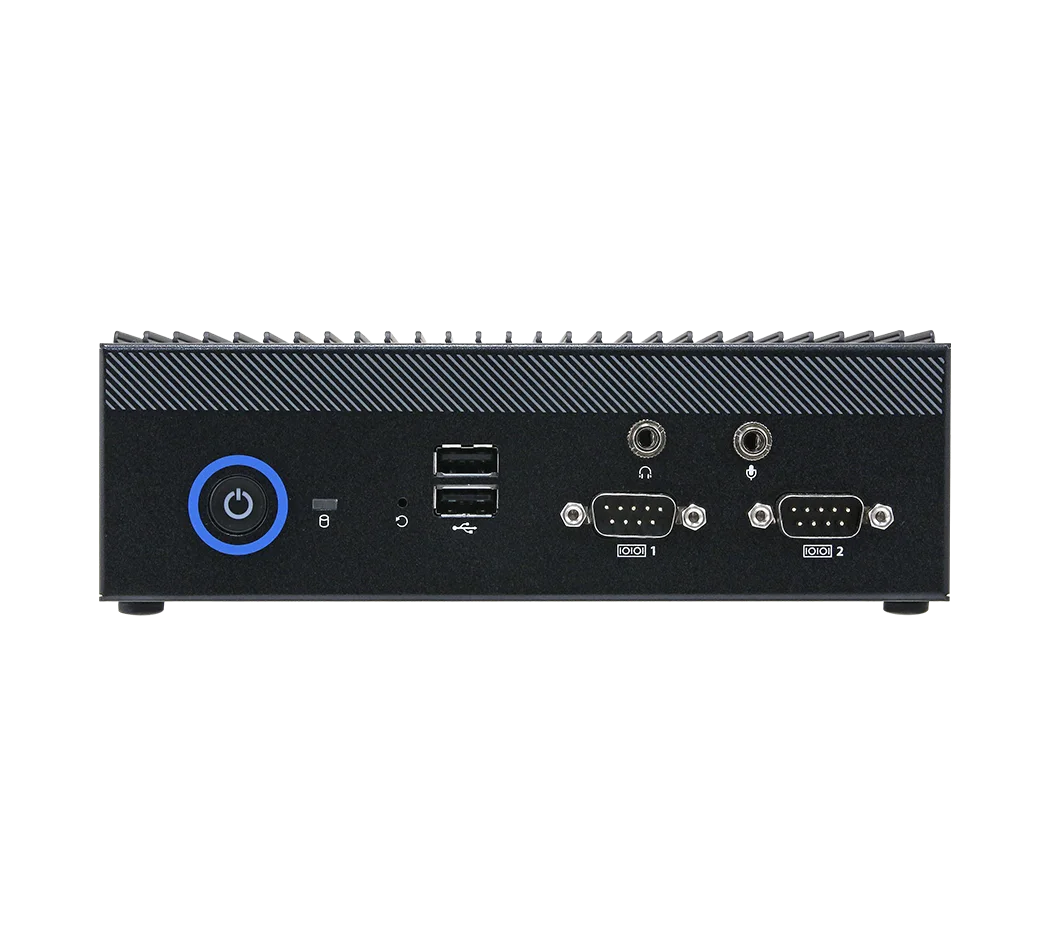

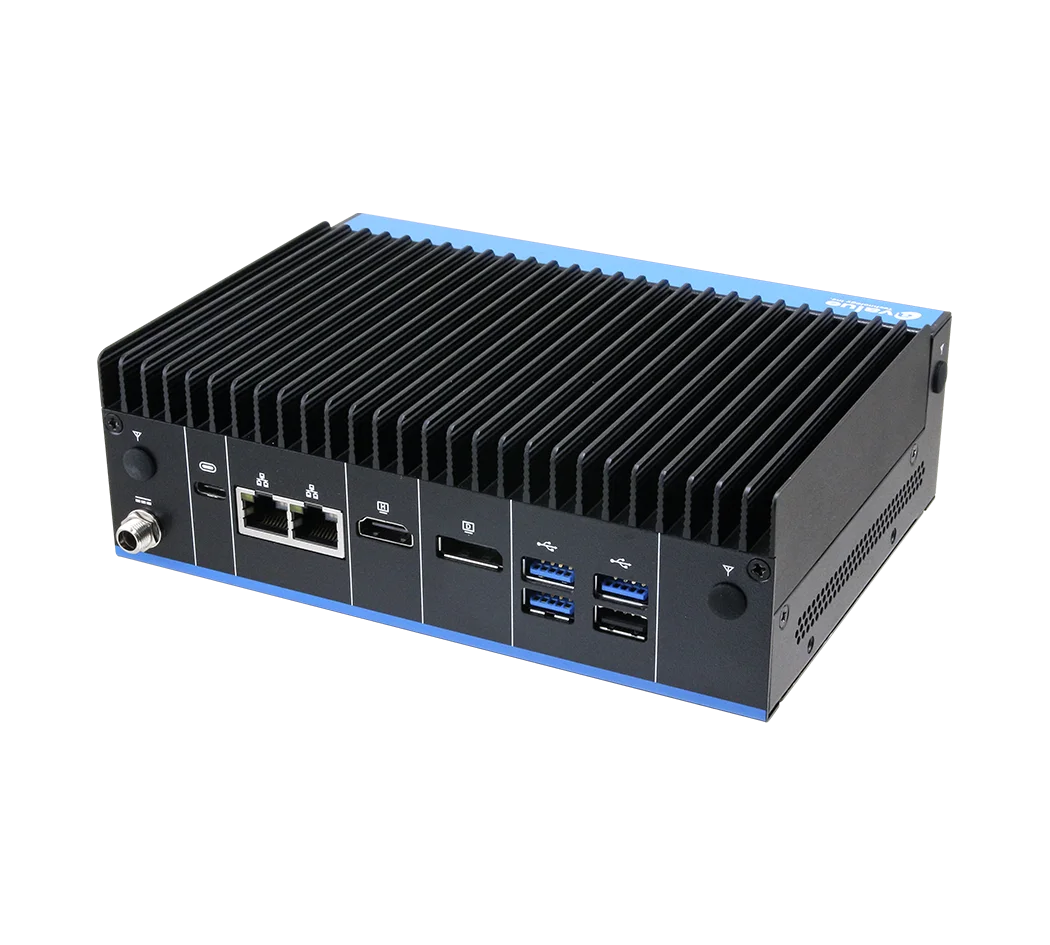

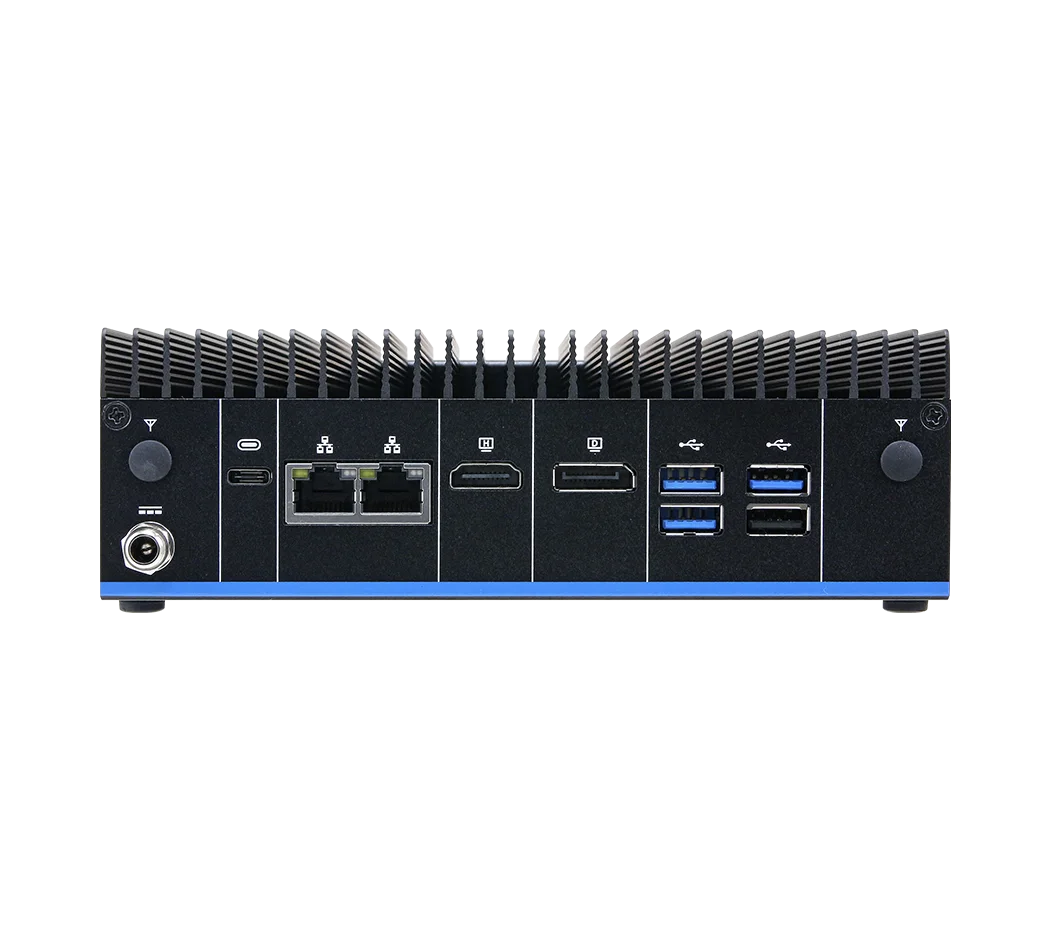

Product photographs
Technical specifications
EPC-RPU common specifications
- USB 3.x ports, excluding Type-C
- 3
- USB Type-C ports
- 1
- COM ports
- 2
- Serial interfaces
- 2 RS-232/422/485
- M.2 Key B
- 2242 SATA SSD / 3042 / 3052 expansion; USB; SIM
- M.2 Key E
- 2230; PCIe / USB
- M.2 Key M
- 2280; PCIe Gen4 x4 NVMe
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 3
- DC input minimum (V)
- 12
- DC input maximum (V)
- 24
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 50
- Operating temperature conditions
- Extended-temperature peripherals and 0.5 m/s airflow; 2.5-inch HDD limits maximum to 40 C
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 177
- Length (mm)
- 126
- Height (mm)
- 57
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0 onboard
- Mounting
- Wall
- Fanless
- Yes
- Adapter power (W)
- 120
- Drive bays
- 1
- Drive bay specification
- 2.5-inch, maximum 7 mm
- RAID support
- SATA RAID 0/1
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
