- Memory data rate (MT/s)
- 6400
Thin Mini-ITX · Pre-release
Avalue EMX-PTLP
A Thin Mini-ITX platform with Intel Core Ultra Series 3 and out-of-band management. Expansion depends on the selected variant.
Pre-release platform. Confirm the final configuration and production timing with Edge.
At a glance
EMX-PTLP platform details shared by listed variants
- Platform
- Thin Mini-ITX
- Processor / supported family
- Intel Core Ultra Series 3
- Maximum memory (GB)
- 64
- Memory type
- DDR5 SO-DIMM / CSO-DIMM
- Ethernet specification
- 1 x 1GbE I210AT + 1 x 2.5GbE I226LM
- Processor family
- Intel Core Ultra
- Data LAN ports
- 2
- Memory sockets
- 2
Choose your EMX-PTLP configuration
2 ordering numbers. The confirmed differences are shown below.
- Memory data rate (MT/s)
- 7200
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

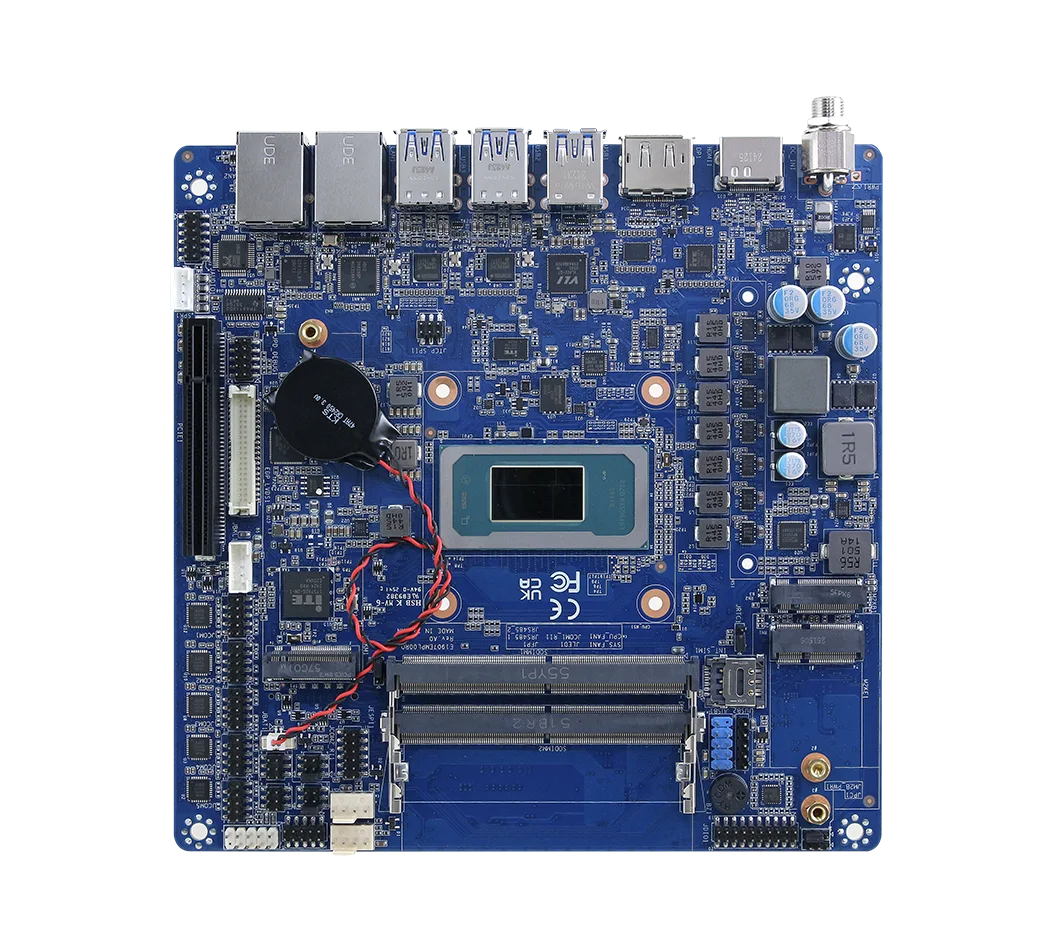

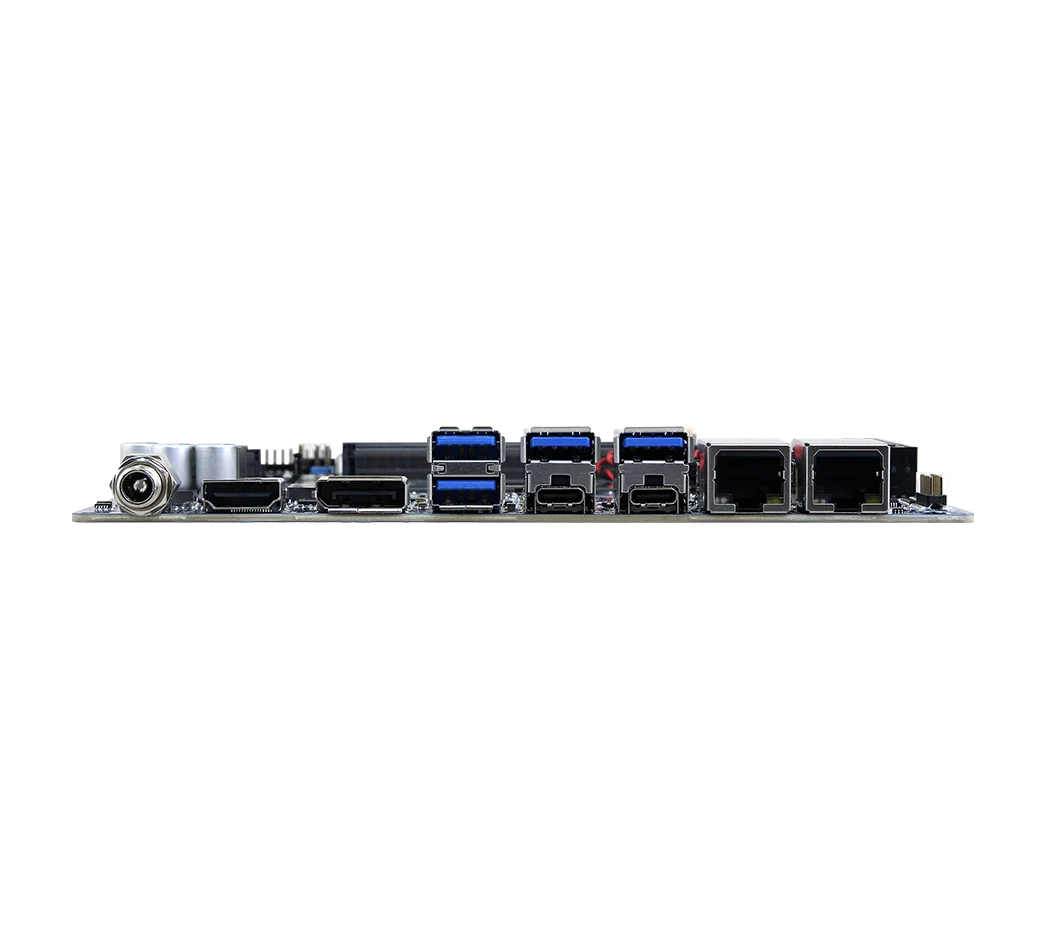

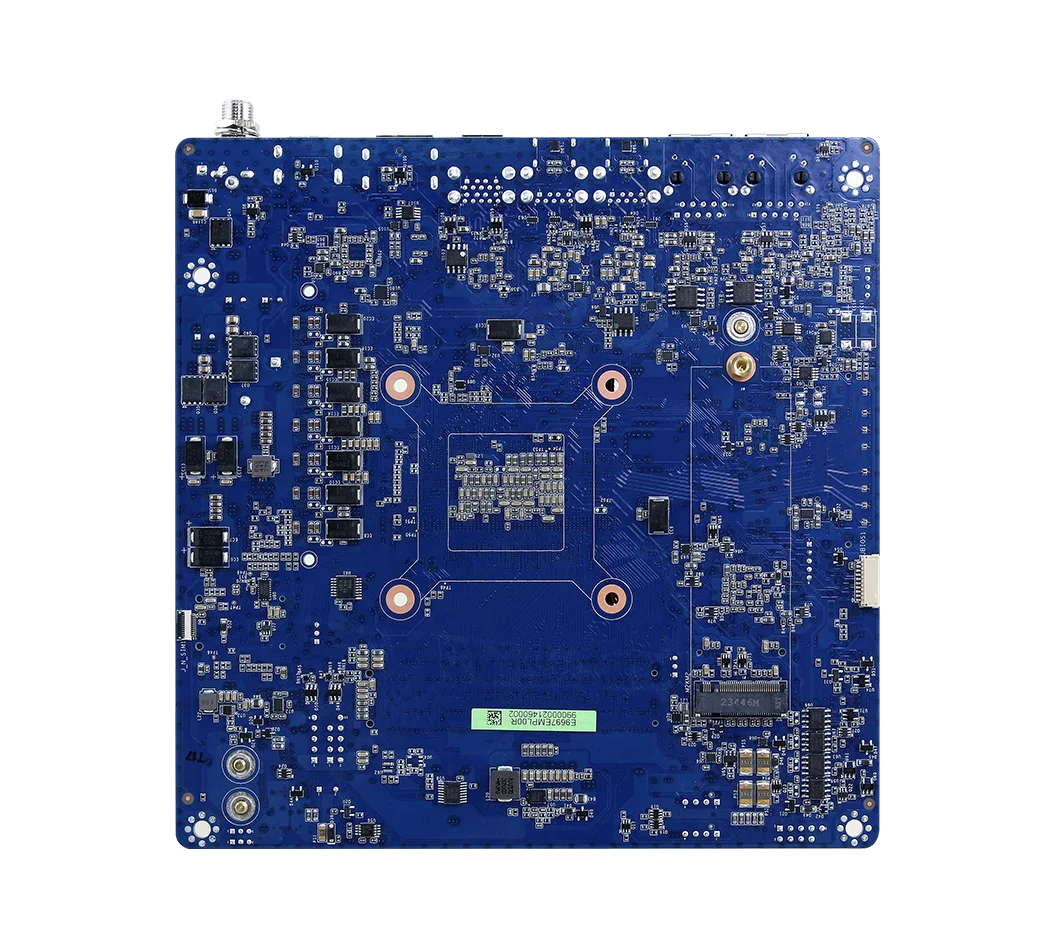

Product photographs
Technical specifications
EMX-PTLP common specifications
- USB 2.0 ports
- 3
- USB 3.x ports, excluding Type-C
- 4
- USB Type-C ports
- 2
- GPIO bits
- 16
- M.2 Key B
- 2242/3042/3052; PCIe / USB; SIM
- M.2 Key E
- 2230; Wi-Fi / CNVi
- M.2 Key M
- 2 x 2280: Gen5 x4 + Gen4 x4 NVMe
- HDMI ports
- 1
- DisplayPort ports
- 1
- DC input minimum (V)
- 12
- DC input maximum (V)
- 24
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions
- Commercial CPU; 0.5 m/s airflow
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 75
- Width (mm)
- 170
- Length (mm)
- 170
- OS support
- Windows 11 LTSC / Linux
- TPM
- 2.0 onboard
- Remote management
- uBMC IT5792 or equivalent; out-of-band / IPMI
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
