Open-frame panel PC
ADLINK SP2-07WP-IMX8
7-inch Arm-based open-frame panel PC with eMMC storage and configurable I/O.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
SP2-07WP-IMX8 platform details
- Platform
- Open-frame panel PC
- Screen size (in)
- 7
- Resolution
- 1024 × 600
- Touch technology
- Projected capacitive
- Panel luminance (cd/m²)
- 425
- Processor / supported family
- NXP i.MX 8M Plus, quad-core Arm Cortex-A53
- Ethernet specification
- 1 × Gigabit Ethernet with TSN standard; second Gigabit Ethernet port optional
- Memory options
- 2 GB standard; 4 GB or 8 GB optional

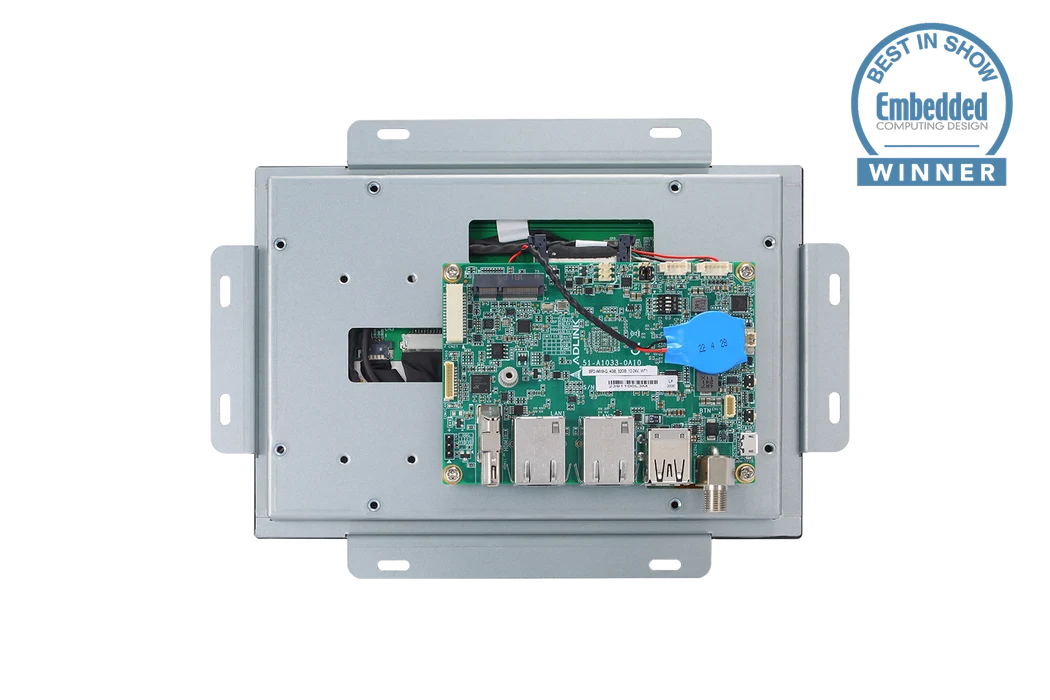

Product photographs
Technical specifications
SP2-07WP-IMX8 common specifications
- Touch points
- 5
- Touch options
- Resistive touch by customization
- Storage options
- 32 GB eMMC 5.1
- Power input
- 12 V DC standard; 12–24 V DC optional
- OS support
- Yocto Kirkstone LTS standard; Android 13 optional; Windows 10 by request
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
