Medical panel PC
ADLINK MLC-M100
21.5-inch fanless medical panel PC with an aluminum enclosure and isolated network and serial interfaces.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
MLC-M100 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 21.5
- Resolution
- 1920 × 1080
- Touch technology
- Projected capacitive
- Panel luminance (cd/m²)
- 250
- IP protection
- IP54 with rear cable cover attached
- Processor / supported family
- Intel Core i5-1145G7E; i3-1115G4E / i7-1185G7E options
- Ethernet specification
- 1 × Gigabit Ethernet, 4 kV isolated

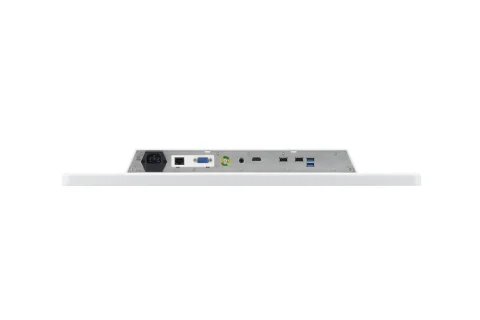

Product photographs
Technical specifications
MLC-M100 common specifications
- Memory options
- DDR4, up to 64 GB
- Touch points
- 10
- Storage options
- M.2 SSD and SATA SSD/HDD options
- Operating temperature
- 0 to 40 °C
- Mounting
- VESA 100 × 100 mm
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
