- Processor
- Intel Core Ultra 5 125H
- Onboard memory (GB)
- 16
Developer SBC
AAEON UP Xtreme i14
An Intel Core Ultra developer board with onboard LPDDR5, multiple display outputs, and expansion for NVMe storage and wireless modules.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
UP Xtreme i14 platform details shared by listed variants
- Platform
- Developer SBC
- Memory type
- Onboard LPDDR5
- Ethernet specification
- 1 x 1GbE + 1 x 2.5GbE
- Display outputs
- 2 x HDMI 2.1; DisplayPort 2.1; DisplayPort 1.4 over USB-C
- Processor family
- Intel Core Ultra
- Data LAN ports
- 2
- Memory data rate (MT/s)
- 6400
- USB 2.0 ports
- 3
Choose your UP Xtreme i14 configuration
5 ordering numbers. The confirmed differences are shown below.
- Processor
- Intel Core Ultra 5 125H
- Onboard memory (GB)
- 32
- Processor
- Intel Core Ultra 5 125U
- Onboard memory (GB)
- 32
- Processor
- Intel Core Ultra 7 155H
- Onboard memory (GB)
- 32
- Processor
- Intel Core Ultra 7 165H
- Onboard memory (GB)
- 64
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

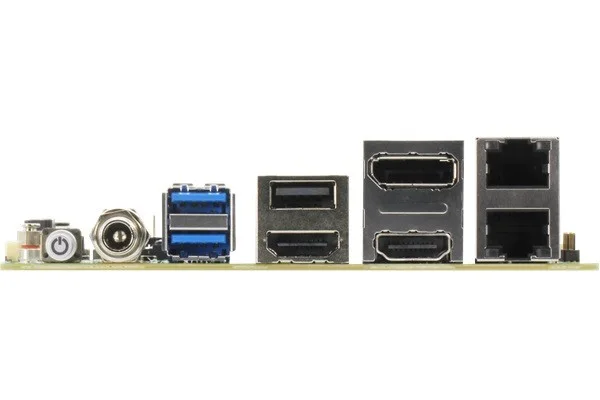

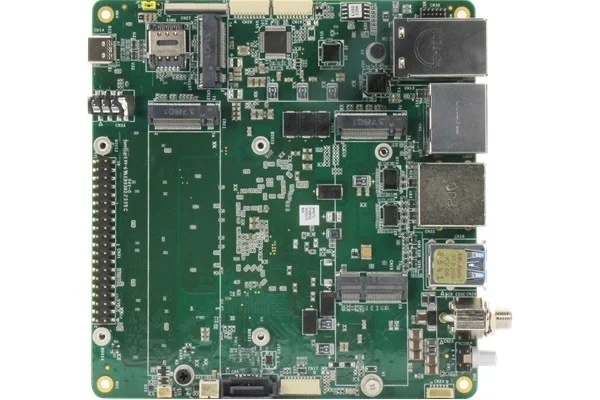

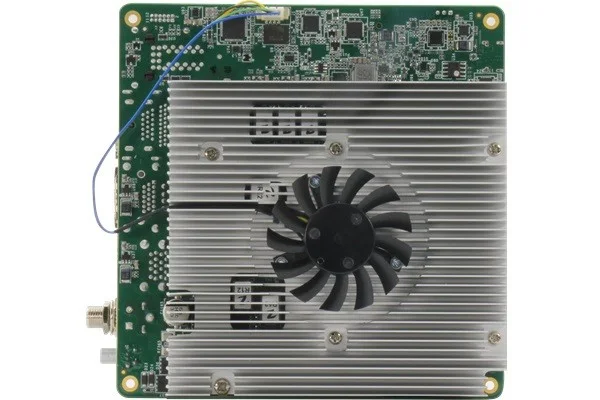

Product photographs
Technical specifications
UP Xtreme i14 common specifications
- USB 3.x ports, excluding Type-C
- 2
- USB Type-C ports
- 1
- USB configuration
- USB 2.0: one Type-A port and two interfaces on the header.
- M.2 Key B
- 3052, with Nano SIM slot
- M.2 Key E
- 2230
- M.2 Key M
- 2 x 2280 PCIe Gen4 x4
- HDMI ports
- 2
- DisplayPort ports
- 1
- Independent displays
- 4
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions
- Active cooler and 0.5 m/s airflow
- Width (mm)
- 120.35
- Length (mm)
- 122.5
- OS support
- Windows 10/11 64-bit; Ubuntu 22.04, kernel 6.5 or later
- TPM
- 2.0 onboard
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
