- Processor
- Intel Core Ultra 7 255H
3.5-inch SBC
AAEON GENE-ARH6
A 3.5-inch Intel Core Ultra Series 2 board with three Ethernet ports, DDR5 memory support, and expansion for storage and wireless connectivity.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
GENE-ARH6 platform details shared by listed variants
- Platform
- 3.5-inch SBC
- Maximum memory (GB)
- 96
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 1 x 1GbE + 2 x 2.5GbE
- Display outputs
- HDMI; DisplayPort; LVDS; eDP
- Processor family
- Intel Core Ultra
- Data LAN ports
- 3
- Memory sockets
- 2
Choose your GENE-ARH6 configuration
2 ordering numbers. The confirmed differences are shown below.
- Processor
- Intel Core Ultra 5 225H
Cooling must be selected for the intended ambient temperature. Confirm the rated range for the selected board and cooler.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

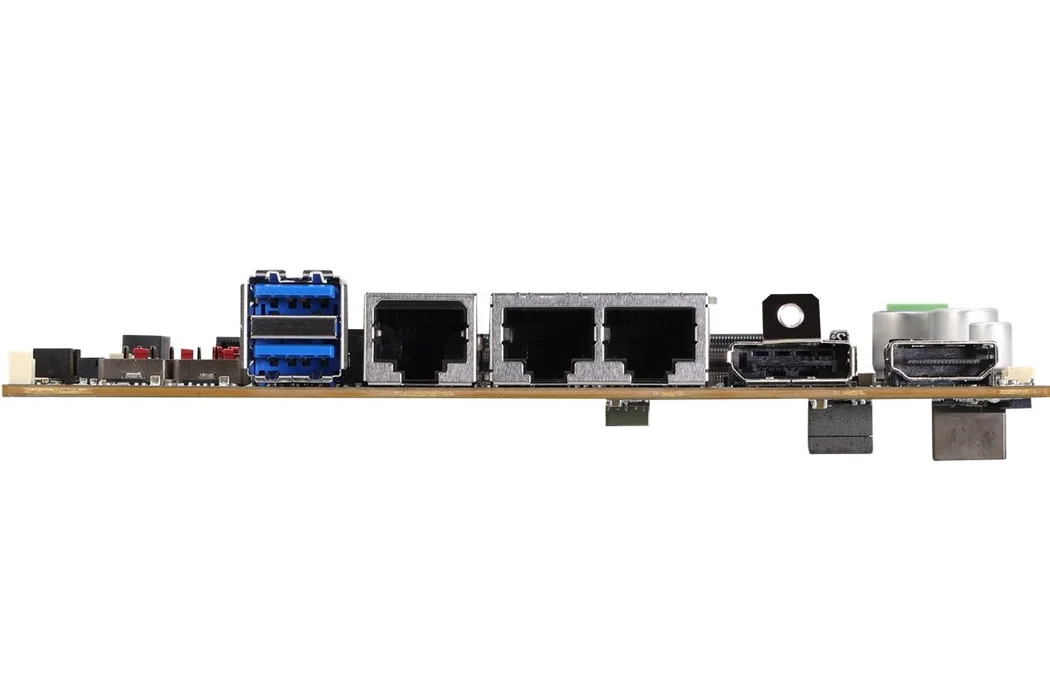

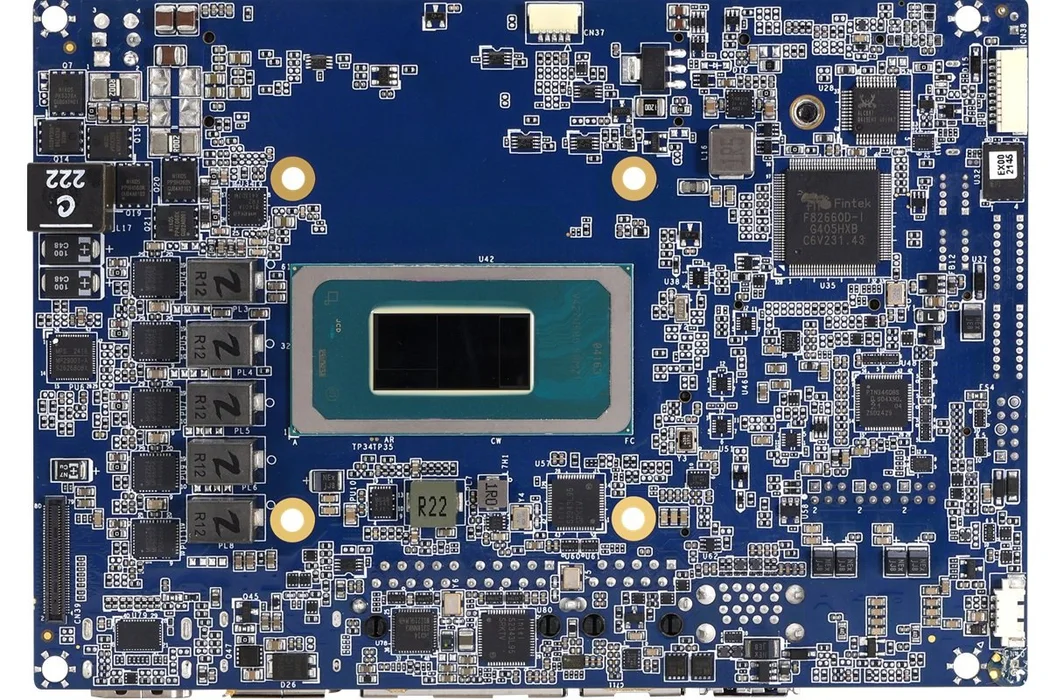

Product photographs
Technical specifications
GENE-ARH6 common specifications
- Memory data rate (MT/s)
- Up to 6400; 2 x 48GB configuration up to 5600
- USB 2.0 ports
- 4
- USB 3.x ports, excluding Type-C
- 2
- COM ports
- 4
- Serial interfaces
- 2 RS-232/422/485 + 2 RS-232
- GPIO bits
- 8
- M.2 Key B
- 3052, Nano SIM
- M.2 Key E
- 2230
- M.2 Key M
- 2280 PCIe Gen4 / SATA
- SATA connectors
- 1
- HDMI ports
- 1
- DisplayPort ports
- 1
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Width (mm)
- 146
- Length (mm)
- 101.7
- OS support
- Windows 10/11 64-bit; Ubuntu 24.04.2. Windows NPU support requires Windows 11.
- TPM
- 2.0
- Configuration notes
- Cooling must be selected for the intended ambient temperature. Confirm the rated range for the selected board and cooler.
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
