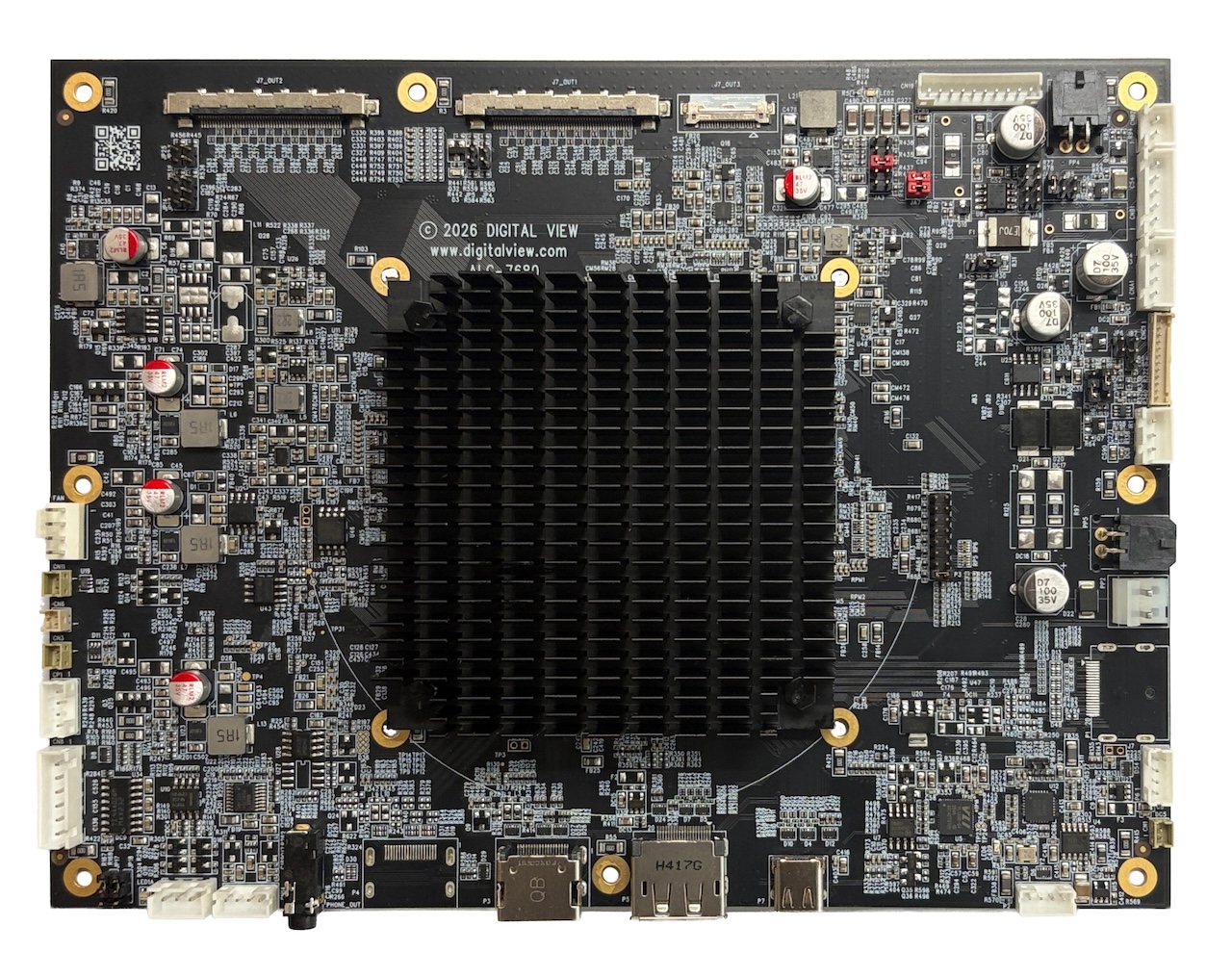

ALC-7680
Manufacturer part number: 4179300XX-3
8K LCD and OLED controller with HDMI 2.1, DisplayPort 2.0 and USB-C inputs; V-by-One or eDP output. Supports 8- or 10-bit panel output and input color depths up to 12 bits per color.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Digital signage, Corporate AV, Kiosks & retail, Industrial
Video & display
- Input interfaces
- HDMI, DisplayPort, USB-C
- Video inputs and versions
- HDMI 2.1, DisplayPort 2.0, USB-C
- Maximum video input resolution
- 7680 × 4320
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- V-by-One, eDP
- Panel output details
- V-by-One, eDP
- Supported resolutions
- Up to 7680 × 4320
- Color depth (bits per color)
- 8 or 10 to the panel; inputs up to 12
- Image processing
- scaling, rotation (180°), mirror, PiP, PbP, color-adjust
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI
- Audio output
- digital line-out from header + audio jack + SPDIF out, OSD volume
- Backlight control
- PWM 8-bit + DPMS enable (5V/3.3V)
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 0.28 W at 12 V, 0.41 W at 24 V (DC input only: no panel, video source or backlight connected)
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 203.2 × 154 mm (L x W)
- Board height
- 36.6 mm (28.5 mm above the board, 1.6 mm PCB, 6.5 mm below)
Additional specifications
- Previous part number
- 4179300XX-5
Ask us for current product status and availability.
