Digital View · LCD Controller Boards

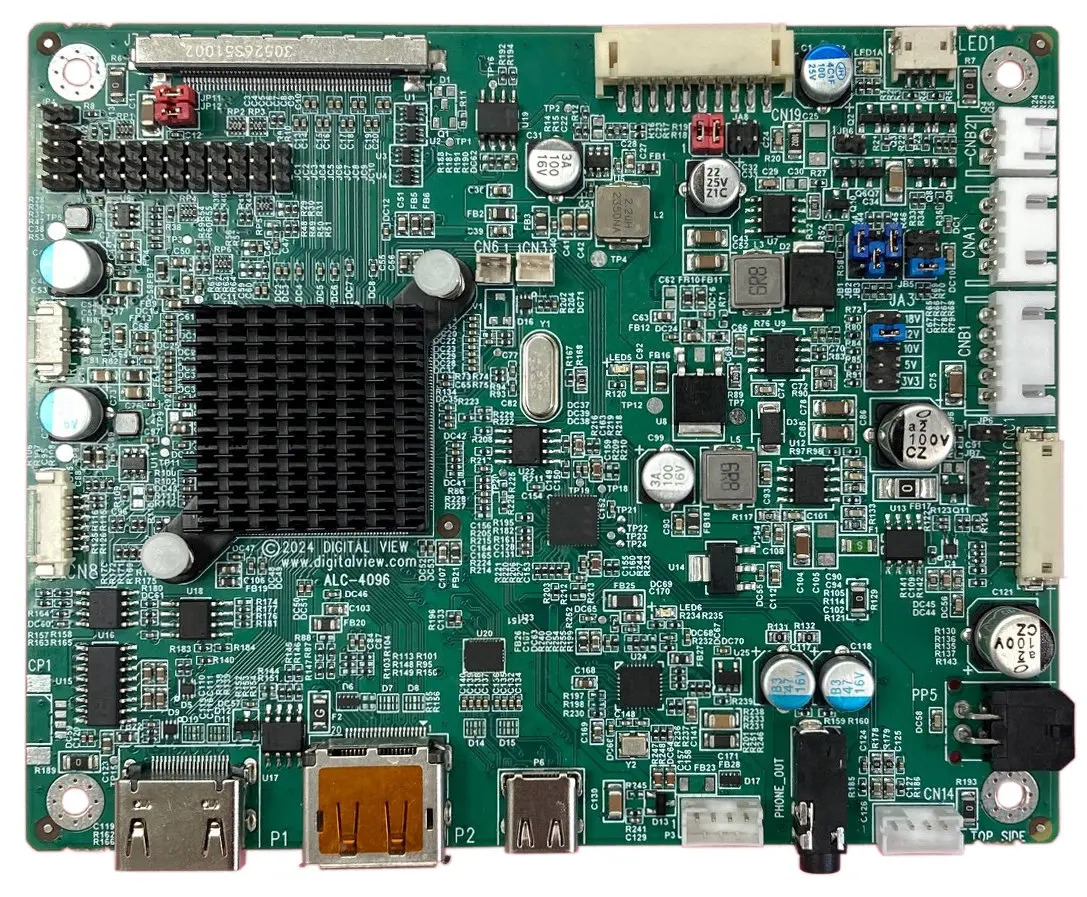

ALC-4096
Manufacturer part number: 4178900XX-3
4K (4096x2160 at 60 Hz) LCD and OLED controller. HDMI 2.0, DisplayPort 1.2, and USB-C inputs; V-by-One and eDP (4-link) outputs; up to 10-bit color; internal USB header for a touch controller.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Kiosks & retail, Industrial, Medical, Defense & avionics, Digital signage, Corporate AV
Video & display
- Input interfaces
- HDMI, DisplayPort, USB-C
- Video inputs and versions
- HDMI 2.0, DisplayPort 1.2, USB-C
- Maximum video input resolution
- 4096 × 2160
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- V-by-One, eDP
- Panel output details
- V-by-One, eDP
- Supported resolutions
- Up to 4096 × 2160
- Color depth (bits per color)
- 10
- Image processing
- scaling, rotation
- Published latency
- 12 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI, USB
- Touch support
- Yes
- Audio output
- line-out, stereo
- Backlight control
- DPMS enable (via CNB1 pin3) + analog or PWM brightness; DA/PWM & PWM freq 100-440Hz set via OSD/RS-232
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 1.5 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 127 × 101.6 mm (L x W)
- Board height
- 15.65 mm
Ask us for current product status and availability.
Documents
PDFBrochureDigital View PDF
↓ PDFManualDigital View PDF
↓ Request pricing and availability4178900XX-3
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
