ALC-1920
Manufacturer part number: 4178700XX-3

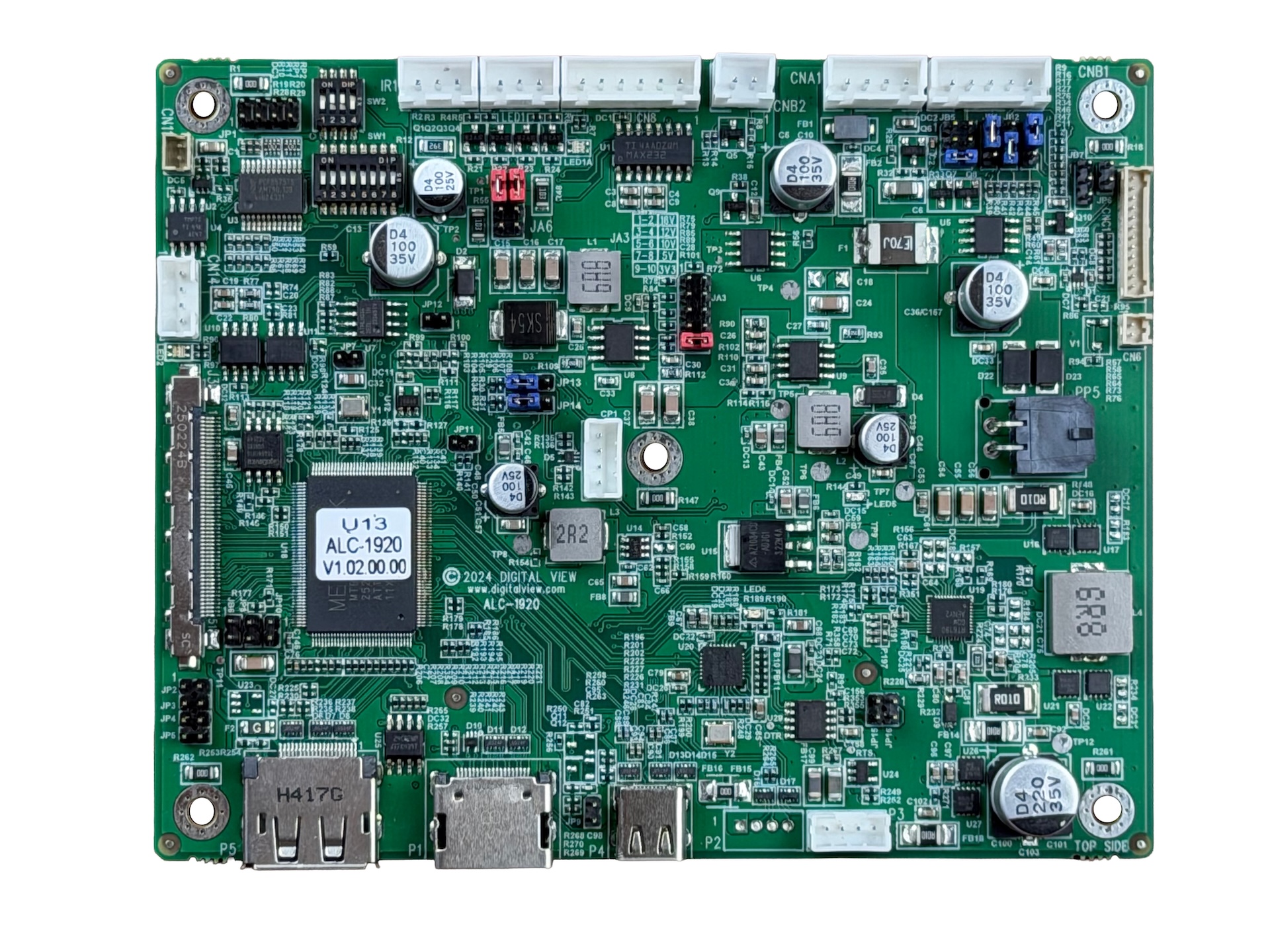

Compact general-purpose Full HD and WUXGA controller. HDMI, DisplayPort, and USB-C inputs; single or dual-channel LVDS output; touchscreen pass-through on USB-C to an internal header.
In stock.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Industrial, Medical, Digital signage, Harsh environments
Video & display
- Input interfaces
- HDMI, DisplayPort, USB-C
- Video inputs and versions
- HDMI 1.4, DisplayPort 1.2, USB-C
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS dual
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 10
- Image processing
- scaling, color-adjust
- Published latency
- 12 ms
Integration & physical details
- Control interfaces
- OSD buttons, RS-232, DDC/CI, IR, USB
- Touch support
- Yes
- Audio output
- Line out, stereo (CN14); SPDIF out (CN11)
- Backlight control
- external PWM/DA; DPMS enable; PWM 100-440Hz; min-backlight 0-50%
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 3 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 127 × 101.6 mm (L x W)
- Board height
- 14.65 mm
Documents
PDFBrochureDigital View PDF
↓ PDFManualDigital View PDF
↓ Request pricing and availability4178700XX-3
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
