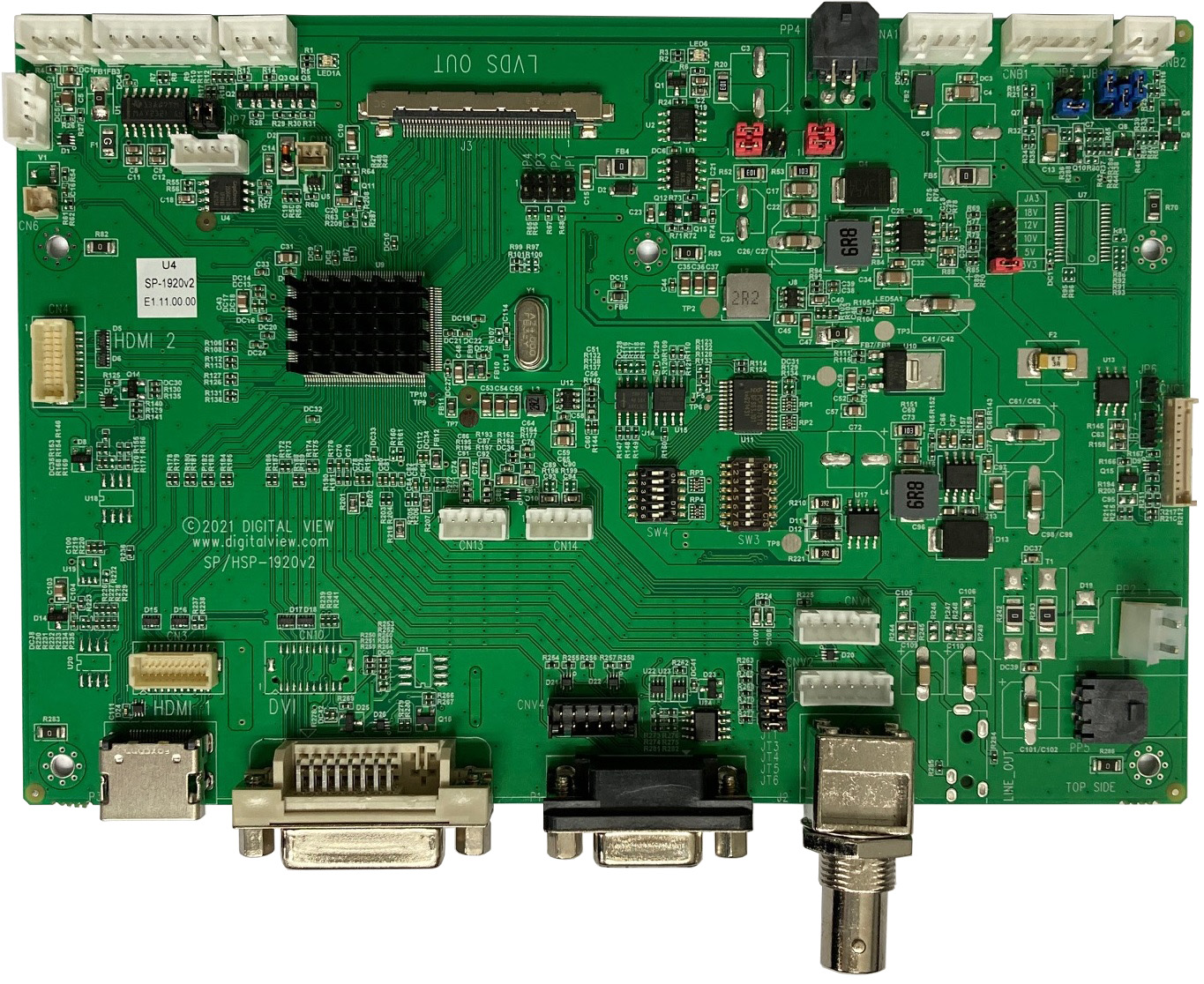

SP-1920v2
Manufacturer part number: 4178100XX-3
Full HD and WUXGA controller with legacy and digital inputs (HDMI, DVI, VGA, composite, component) and an integrated USB media player for MP4 and H.264 content; LVDS output.
On order with the manufacturer.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Digital signage, Corporate AV, Kiosks & retail, Marine, Industrial, Medical, Transportation, Harsh environments
Video & display
- Input interfaces
- HDMI, DVI, VGA, Composite, Component
- Video inputs and versions
- HDMI 1.4, DVI-D, VGA, CVBS, Component
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS single, LVDS dual
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 10
- Image processing
- scaling, rotation, color-adjust
- Published latency
- 12 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI
- Audio output
- HDMI digital audio in/out headers CN13/CN14, SPDIF out CN11; OSD volume; unamplified
- Backlight control
- CNB1 inverter; DPMS enable (JB2 3.3V/5V/OC); D/A or PWM 100-440Hz brightness via OSD/RS-232
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 4 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 179.07 × 120.4 mm (L x W)
- Board height
- 18.9 mm
Documents
PDFBrochureDigital View PDF
↓ Request pricing and availability4178100XX-3
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
