Digital View · LCD Controller Boards

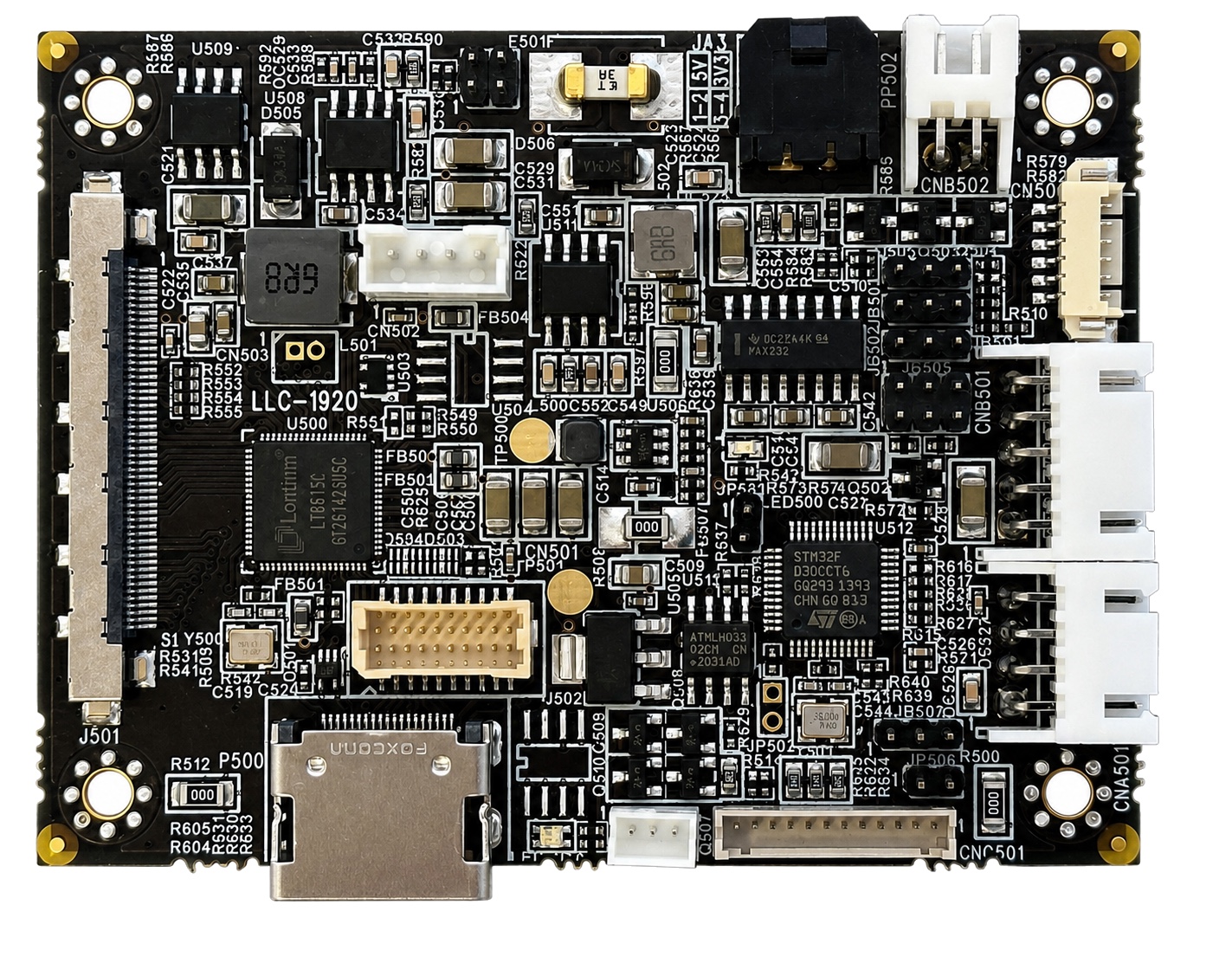

LLC-1920
Manufacturer part number: 4177900XX-3
Ultra-low-latency HDMI 1.3 to LVDS converter for LCD and OLED panels up to 1920x1200. 8-bit color; no scaler or frame buffer.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Kiosks & retail, Industrial, Medical, Defense & avionics, Digital signage, Corporate AV, Harsh environments
Video & display
- Input interfaces
- HDMI
- Video inputs and versions
- HDMI 1.3
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS single, LVDS dual
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 8
- Image processing
- none (no scaler, no frame or line buffer)
- Published latency
- 0.00054 ms
Integration & physical details
- Control interfaces
- RS-232
- Audio output
- line-out (stereo, unamplified) ; optional
- Backlight control
- DPMS enable (3.3V/5V); analog or PWM brightness via serial port
- Panel supply options
- 3.3V, 5V, 12V
- Supply voltage
- 12 V DC
- Power consumption (board only)
- 2.5 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 77.5 × 58.7 mm (L x W)
- Board height
- 10.67 mm
Ask us for current product status and availability.
