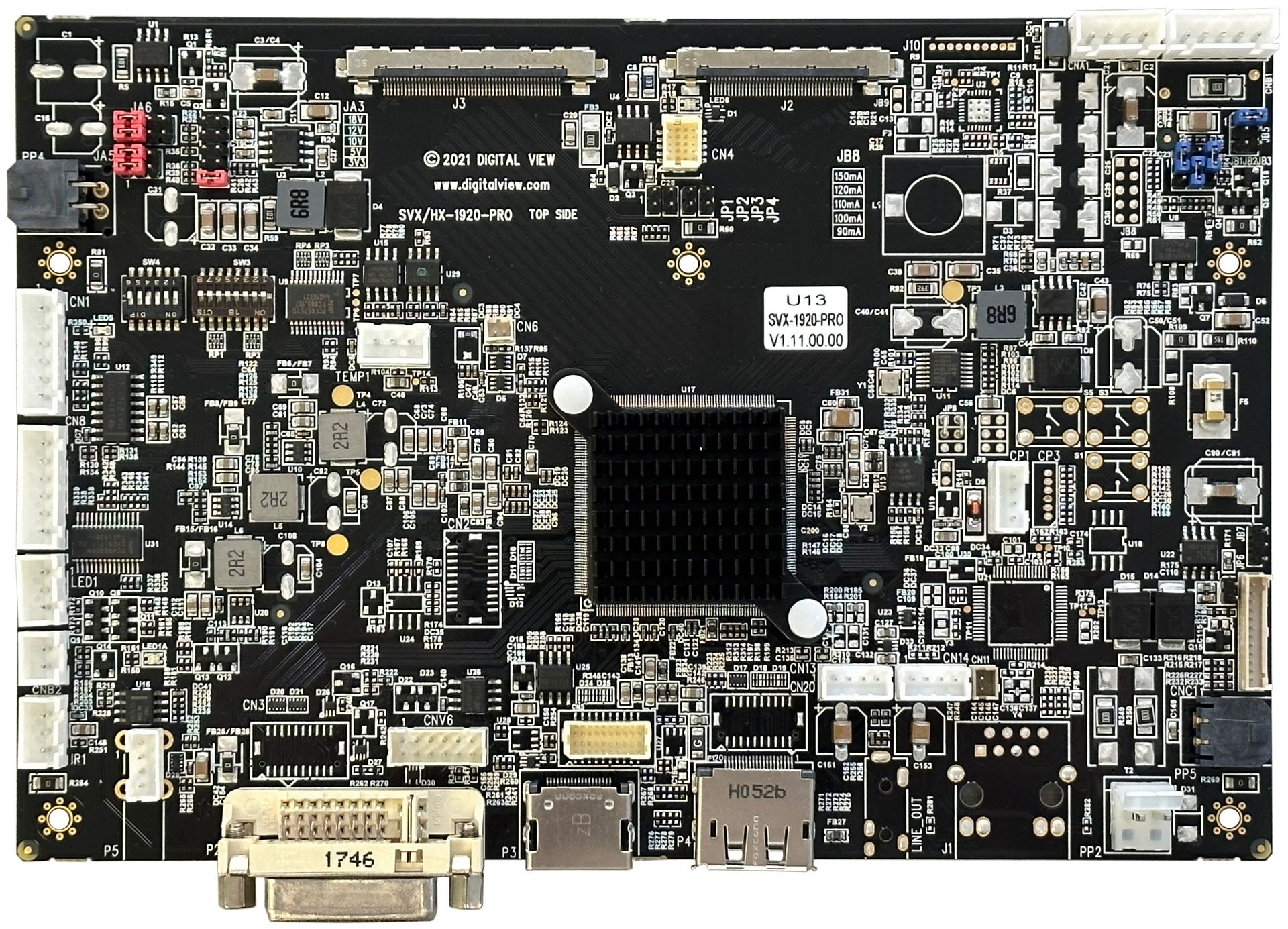

SVX-1920-PRO
Manufacturer part number: 4177300XX-3
Full HD and WUXGA LCD and OLED controller. HDMI 1.4, DisplayPort 1.2, DVI-I, and VGA inputs; 4-channel LVDS output; up to 10-bit color.
In stock.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Digital signage, Corporate AV, Industrial, Medical, Harsh environments
Video & display
- Input interfaces
- HDMI, DisplayPort, DVI, VGA
- Video inputs and versions
- HDMI 1.4, DisplayPort 1.2, DVI-I, VGA
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 10
- Image processing
- scaling, rotation, PiP, PbP, color-adjust, monochrome
- Published latency
- 32 ms (HDMI input with Samsung LTM230HT10 panel; Leo Bodnar lag tester)
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232
- Audio output
- line-in (CN13) + line-out (CN14, unamplified, OSD volume) + S/PDIF output (CN11); audio follows HDMI/DP source
- Backlight control
- analog (D/A, default) or PWM 100-440Hz; DPMS enable via CNB1; VR/analog/PWM selected by JB5
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 4 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 179.1 × 120.4 mm (L x W)
- Board height
- 18.9 mm
Documents
PDFBrochureDigital View PDF
↓ PDFManualDigital View PDF
↓ Request pricing and availability4177300XX-3
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
