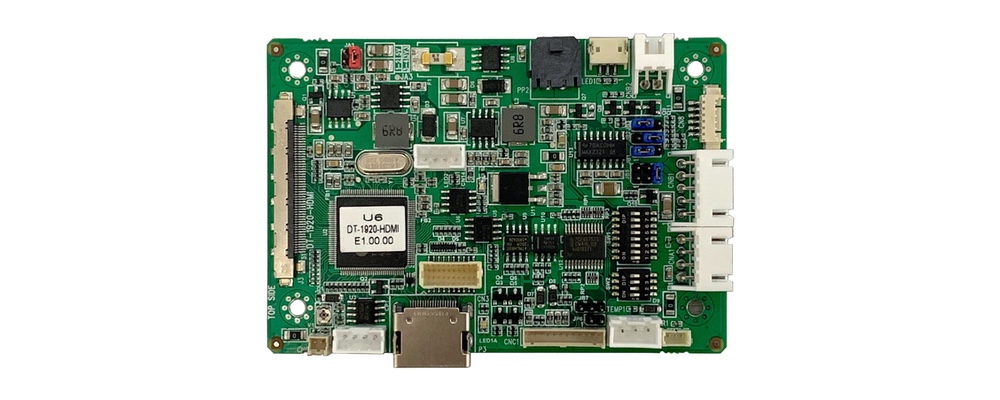

DT-1920-HDMI
Manufacturer part number: 4177000XX-3
Compact controller with a single HDMI input and LVDS panel connection for commercial and industrial applications. Multi-panel timing support, brightness and temperature sensors, auto EDID, and audio line-out.
In stock.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Monitors, Embedded displays
Video & display
- Input interfaces
- HDMI
- Video inputs and versions
- HDMI 1.3
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS dual
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 8
- Image processing
- scaling, rotation, color-adjust
- Published latency
- 13 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI
- Audio output
- line-out, stereo (CN14), from HDMI; OSD volume
- Backlight control
- PWM; DPMS enable pin (5V or 3.3V)
- Panel supply options
- 3.3V, 5V, 12V
- Supply voltage
- 12 V DC
- Power consumption (board only)
- 2.5 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 62.69 × 91.44 mm (L x W)
- Board height
- 16.5 mm
