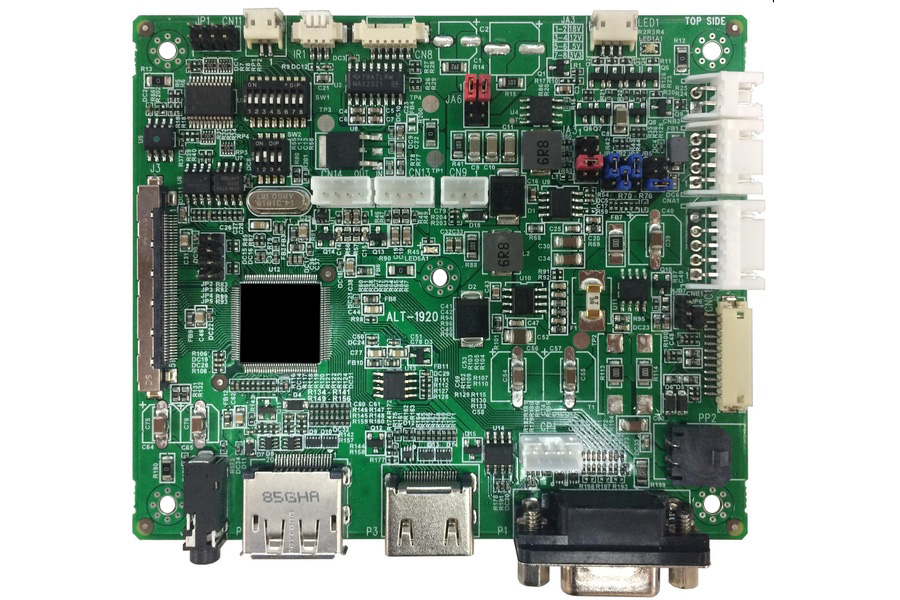

ALT-1920
Manufacturer part number: 4176400XX-3
Compact general-purpose Full HD and WUXGA controller. HDMI, VGA, and DisplayPort inputs; 2-channel LVDS output. Replacement for the ALR-1920.
In stock.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Kiosks & retail, Industrial, Digital signage, Marine, Medical, Transportation, Harsh environments
Video & display
- Input interfaces
- HDMI, DisplayPort, VGA
- Video inputs and versions
- HDMI 1.4, VGA, DisplayPort 1.2
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS dual
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 8
- Image processing
- scaling, rotation, color-adjust
- Published latency
- 13 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI
- Audio output
- line-in from VGA (CN13); line-out stereo (CN14 / J1 jack) from HDMI/DP; SPDIF out (CN11); RS-232 volume/mute
- Backlight control
- PWM / D/A / VR (JB5); RS-232 0xe0 analog dim 0-5V; PWM 100-440Hz; DPMS enable via CNB1 pin3
- Panel supply options
- 3.3V, 5V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 2.5 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 107.44 × 91.57 mm (L x W)
- Board height
- 17.45 mm
