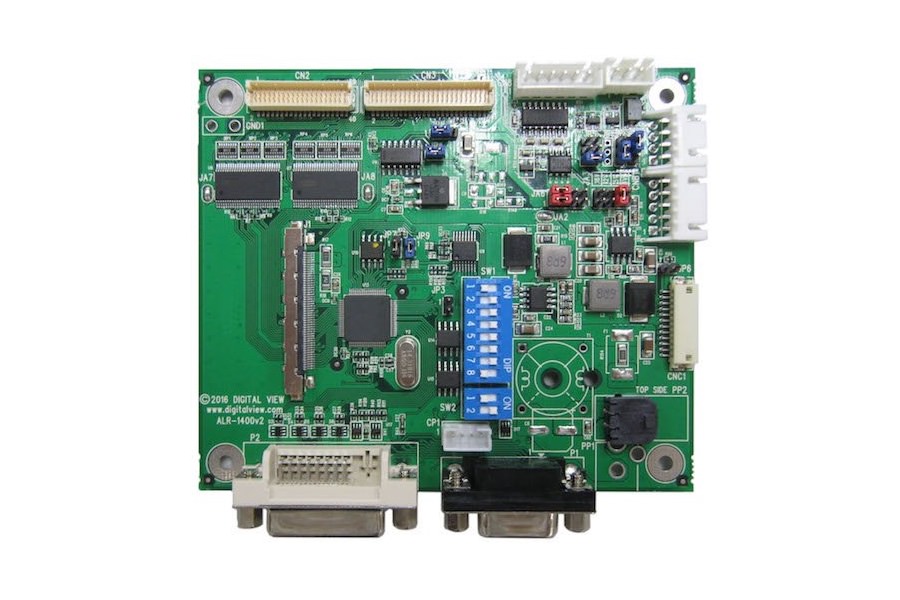

ALR-1400v2
Manufacturer part number: 4175800XX-3
1440x900-class controller converting DVI-D and VGA inputs to dual-channel LVDS and TTL panels. Replaces the ALR-1400.
In stock.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Digital signage, Kiosks & retail, Industrial, Marine, Medical, Transportation, Harsh environments
Video & display
- Input interfaces
- DVI, VGA
- Video inputs and versions
- DVI-D, VGA
- Maximum video input resolution
- 1440 × 900
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS, TTL
- Panel output details
- LVDS dual, TTL
- Supported resolutions
- Up to 1440 × 900
- Color depth (bits per color)
- 8
- Image processing
- scaling, color-adjust
- Published latency
- 11 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232
- Audio output
- none
- Backlight control
- PWM or D/A; DPMS enable via BLCTRL (JB2: 3.3V/5V/open-collector)
- Panel supply options
- 3.3V, 5V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 2.5 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 107.4 × 91.4 mm (L x W)
- Board height
- 17.1 mm
