Avalue Technology · ARC-1542 series
ARC-1542-100-A1R

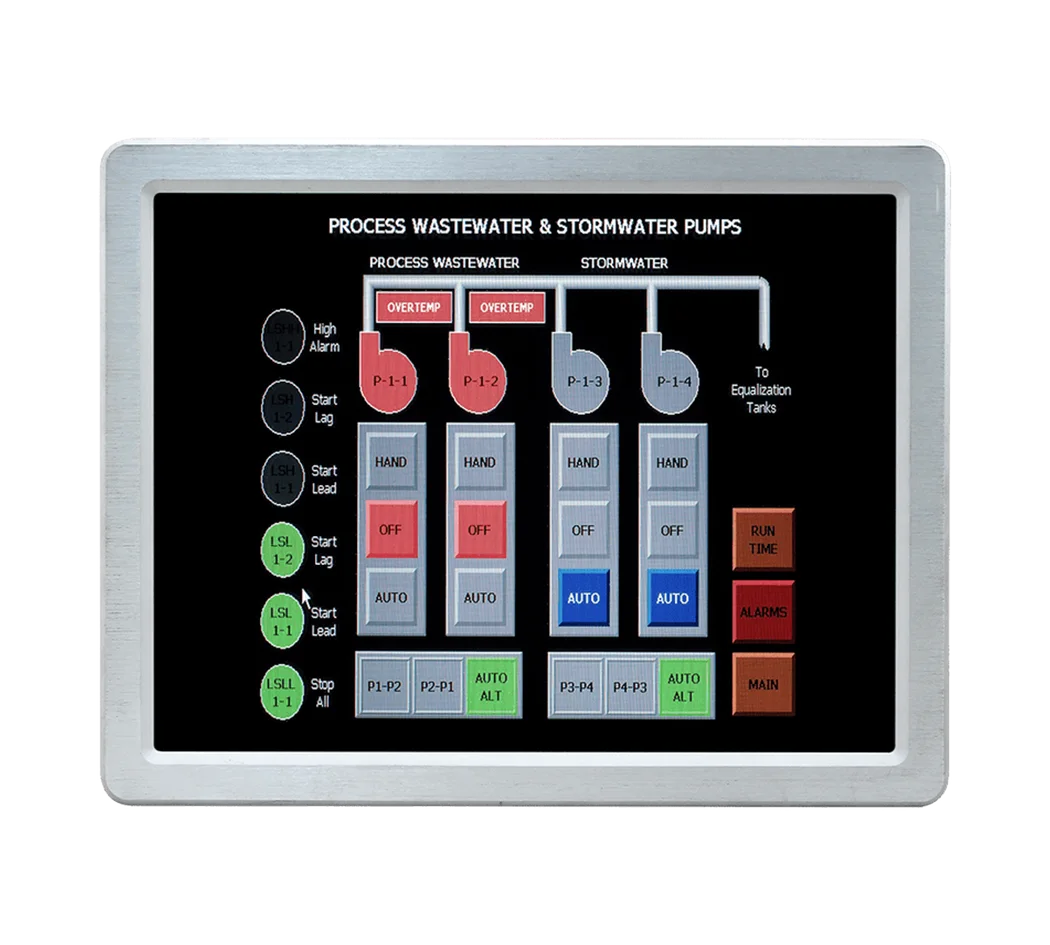

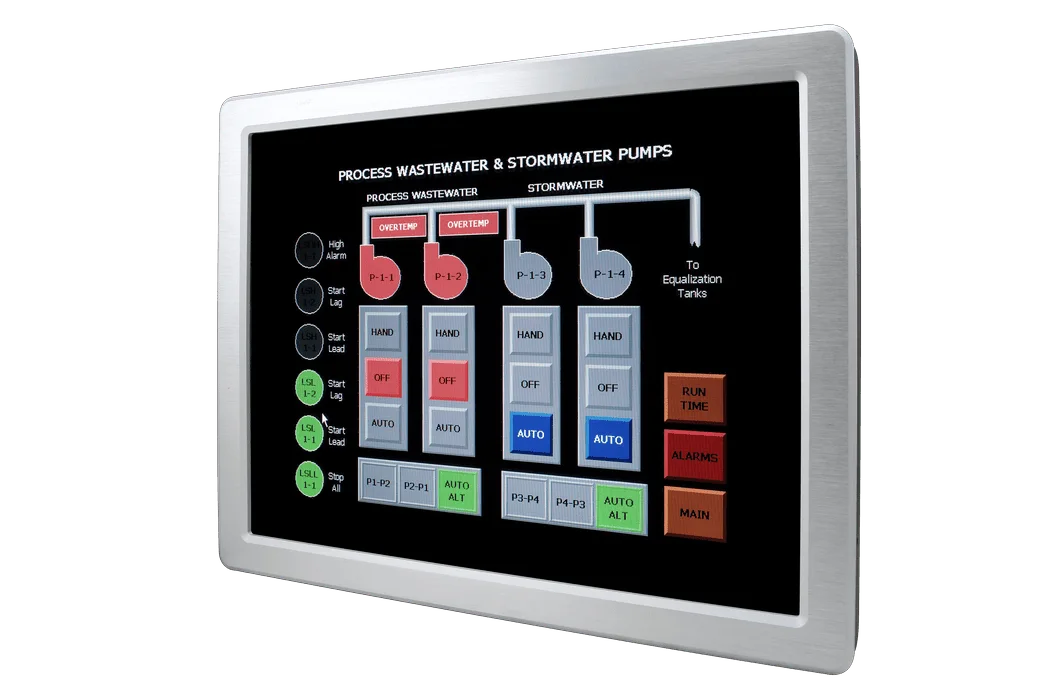

A 15-inch industrial panel PC with resistive touch, front IP65 protection, and Intel Core processor options.
- Processor
- Intel Core 3 100UL
Authorized Avalue Technology distributor
Specifications
- Screen size (in)
- 15
- Resolution
- 1024 × 768
- Touch technology
- 5-wire resistive
- Processor / supported family
- Intel Core 3 100UL
- Memory type
- DDR5 SO-DIMM
- Memory sockets
- 1
- Maximum memory (GB)
- 32
- Memory data rate (MT/s)
- 4800
- Data LAN ports
- 2
- Ethernet specification
- 2 x 2.5GbE; I225LM + I226LM
- USB 2.0 ports
- 1
- USB 3.x ports, excluding Type-C
- 3
- USB Type-C ports
- 1
- COM ports
- 1
- Serial interfaces
- RS-232/422/485
- M.2 Key B
- 3042/3052/2280; PCIe / USB / SATA
- M.2 Key E
- 2230; PCIe / USB
- M.2 Key M
- 2280 PCIe x4
- Display outputs
- Optional HDMI through IET module: 4096x2160 at 24 Hz
- DC input minimum (V)
- 12
- DC input maximum (V)
- 24
- Operating minimum (°C)
- -10
- Operating maximum (°C)
- 50
- Storage minimum (°C)
- -20
- Storage maximum (°C)
- 60
- Width (mm)
- 350.51
- Length (mm)
- 274.51
- Height (mm)
- 54.5
- Weight (kg)
- 3.7
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0 onboard
- IP protection
- Front IP65 / rear IP41 except I/O
- Mounting
- Panel / wall / stand / VESA 75x75 or 100x100
- Fanless
- Yes
- IET expansion
- 80-pin IET
- Panel luminance (cd/m²)
- 500
- Speaker output
- 2 x 2W
- Form factor / system type
- Industrial panel PC
- Processor family
- Intel Core
- Release status
- Active listing
- Configuration notes
- Resistive-touch ARC-1542 configuration. Confirm the included adapter when requesting a quotation.
Ask us for current product status and availability.
