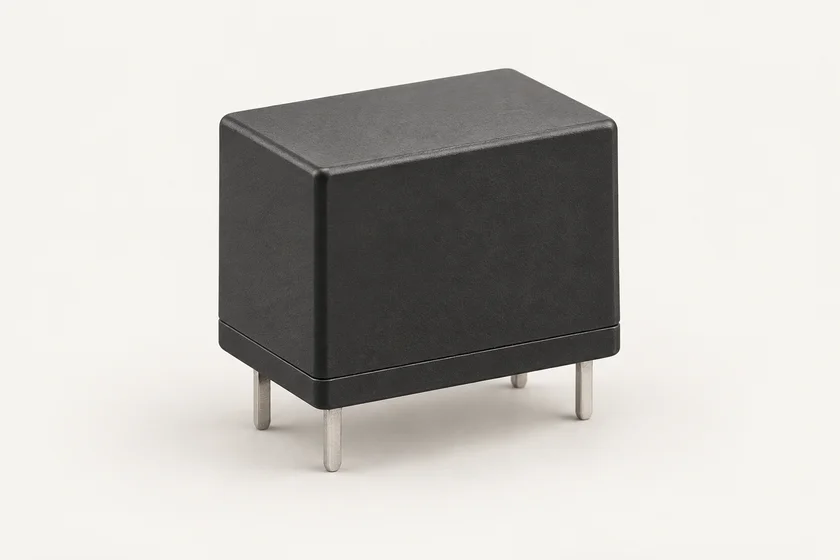

DC-DC Converters
Isolated and non-isolated DC-DC conversion for board-level rail generation.
Find a power supply series
Filter by electrical and mechanical requirements. Selected filters are included in your inquiry.
195 series Send these requirements
| Series | Family | Power | Input | Output (V DC) | Mounting | Isolation | Package | Details |
|---|---|---|---|---|---|---|---|---|
| ME02S(I) | Fixed input, unregulated | 0.25 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | Board mount | 1000/3000 V DC | 4-SIP | |
| MH02S(I) | Fixed input, unregulated | 0.25 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 7, 9, 12, 15, 18, 24 | Board mount | 1000/3000 V DC | 8-DIP | |
| ME05S(I) | Fixed input, unregulated | 0.50 W | 3.3, 5, 12, 15, 24, 48 V DC | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | Board mount | 1000/3000 V DC | 4-SIP | |
| MH05S(I) | Fixed input, unregulated | 0.50 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 7, 9, 12, 15, 18, 24 | Board mount | 1000/3000 V DC | 8-DIP | |
| LF100C | Fixed input, unregulated | 1 W | 5 V DC | 3.3, 5, 9, 12, 15 | Board mount | 1500 V DC | SMD | |
| MD100(I) | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24, 48 V DC | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3, ±5, ±9, ±12, ±15, ±18, ±24 | Board mount | 1000 V DC | 7-SIP | |
| MD100C(I) | Fixed input, unregulated | 1 W | 5, 12, 24 V DC | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | Board mount | 1500/3000 V DC | 7-SIP | |
| MD100CHI | Fixed input, unregulated | 1 W | 5, 12, 15, 24 V DC | 3.3, 5, 6, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15 | Board mount | 6000 V DC | 7-SIP | |
| MD100CRL | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | 7-SIP | |
| MD100MHI | Fixed input, unregulated | 1 W | 5, 12 V DC | 5, 12, 15, ±5, ±12, ±15 | Board mount | 3000 V DC | 7-SIP | |
| MD100T(I) | Fixed input, unregulated | 1 W | 5, 12, 24 V DC | 5, 12, 15, ±5, ±12, ±15 | Board mount | 3000 V DC | 7-SIP | |
| ME100C | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | 4-SIP | |
| ME100S(I) | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | Board mount | 1000/3000 V DC | 4-SIP | |
| MG100(I) | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 7, 9, 12, 15, 18, 24, ±3, ±5, ±7, ±9, ±12, ±15, ±18, ±24 | Board mount | 1000/6000 V DC | 14-DIP | |
| MH100CI | Fixed input, unregulated | 1 W | 5, 12, 24 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 3000 V DC | 7-DIP | |
| MH100S(I) | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 7, 9, 12, 15, 18, 24 | Board mount | 1000/6000 V DC | 7-DIP | |
| ML100(I) | Fixed input, unregulated | 1 W | 5, 12, 24 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 3000 V DC | SMD | |
| ML100DC(I) | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24 V DC | ±3.3, ±5, ±9, ±12, ±15, ±24 | Board mount | 1500/3000 V DC | SMD | |
| ML100SC(I) | Fixed input, unregulated | 1 W | 3.3, 5, 12, 15, 24 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500/3000 V DC | SMD | |
| MD200(I) | Fixed input, unregulated | 2 W | 3.3, 5, 12, 24 V DC | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | Board mount | 1000/6000 V DC | 7-SIP | |
| MD200C(I) | Fixed input, unregulated | 2 W | 5, 12, 15, 24 V DC | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | Board mount | 1500/3000 V DC | 7-SIP | |
| MD200CHI | Fixed input, unregulated | 2 W | 12, 15, 24 V DC | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15 | Board mount | 6000 V DC | 7-SIP | |
| ME200S(I) | Fixed input, unregulated | 2 W | 5, 12, 15, 24 V DC | 3.3, 5, 7.2, 9, 12, 15, 24 | Board mount | 1000/3000 V DC | 4-SIP | |
| MG200(I) | Fixed input, unregulated | 2 W | 3.3, 5, 12, 15, 18, 24 V DC | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±9, ±12, ±15, ±18, ±24 | Board mount | 1000/6000 V DC | 14-DIP | |
| MG200CI | Fixed input, unregulated | 2 W | 5 V DC | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | Board mount | 3000 V DC | 14-DIP | |
| ML200C(I) | Fixed input, unregulated | 2 W | 5, 12, 15, 24 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500/3000 V DC | SMD | |
| ME075CR | Fixed input, regulated | 0.75 W | 5, 12, 24 V DC | 3.3, 5, 9, 12, 15 | Board mount | 1500 V DC | 4-SIP | |
| MD100CR(I) | Fixed input, regulated | 1 W | 5, 12, 24 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500/3000 V DC | 7-SIP | |
| ML100CR(I) | Fixed input, regulated | 1 W | 5, 12, 15, 24 V DC | 5, 12, 15 | Board mount | 1500/3000 V DC | SMD | |
| MA300R | Fixed input, regulated | 3 W | 5, 12, 24 V DC | 5, 12, 15, ±12, ±15 | Board mount | 1500 V DC | 24-DIP | |
| MD300R(I) | Fixed input, regulated | 3 W | 5, 12, 24 V DC | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | Board mount | 1000/5200 V DC | 7-SIP | |
| MD100CRW(I) | Wide input, 2:1 | 1 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500/3000 V DC | 7-SIP | |
| ML100RW | Wide input, 2:1 | 1 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 5, 12, 15, ±12, ±15 | Board mount | 1500 V DC | SMD | |
| MD200RW(I) | Wide input, 2:1 | 2 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | Board mount | 1500/3000 V DC | 7-SIP | |
| MH200RW | Wide input, 2:1 | 2 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1500 V DC | 7-DIP | |
| MA300CRW(I) | Wide input, 2:1 | 3 W | 4.5–9, 9–18, 18–36 V DC | 5, 12, 15, 24, ±5, ±9, ±12, ±15 | Board mount | 1500/3000 V DC | 24-DIP | |
| MA300CRWHI | Wide input, 2:1 | 3 W | 4.5–9, 9–18, 18–36 V DC | ±5, ±12, ±15 | Board mount | 6200 V DC | 24-DIP | |
| MA300RW(I) | Wide input, 2:1 | 3 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500/3000 V DC | 24-DIP | |
| MD300CRW(I) | Wide input, 2:1 | 3 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 6, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | Board mount | 1500/3000 V DC | 7-SIP | |
| MD300RW | Wide input, 2:1 | 3 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±5, ±9, ±12, ±15 | Board mount | 1600 V DC | 7-SIP | |
| MH300RW | Wide input, 2:1 | 3 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1500 V DC | 7-DIP | |
| ML300CRW | Wide input, 2:1 | 3 W | 9–18, 18–36 V DC | 3.3, 5, 12, 15, 24, ±5, ±9, ±12, ±15 | Board mount | 1500 V DC | SMD | |
| MLD300CRW | Wide input, 2:1 | 3 W | 9–18, 18–36 V DC | 3.3, 5, 12, 15, 24, ±5, ±9, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MA600CRW | Wide input, 2:1 | 6 W | 9–18, 18–36 V DC | ±5, ±12, ±15 | Board mount | 1500 V DC | 24-DIP | |
| MA600RW | Wide input, 2:1 | 6 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500 V DC | 24-DIP | |
| MD600CRW | Wide input, 2:1 | 6 W | 9–18, 18–36 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1600 V DC | 7-SIP | |
| MD600RW(I) | Wide input, 2:1 | 6 W | 4.5–9, 9–18, 18–36, 36–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500/3000 V DC | 7-SIP | |
| MI600CRW | Wide input, 2:1 | 6 W | 4.5–9 V DC | ±5, ±12, ±15, ±24 | Board mount | 1500 V DC | DIP | |
| MA800RW | Wide input, 2:1 | 8 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | 24-DIP | |
| MG800RW | Wide input, 2:1 | 8 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | 14-DIP | |
| MD900RW | Wide input, 2:1 | 9 W | 18–36, 36–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1600 V DC | 7-SIP | |
| MA1000CRW | Wide input, 2:1 | 10 W | 9–18, 18–36 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | 24-DIP | |
| MA1000RW | Wide input, 2:1 | 10 W | 9–18, 18–36, 36–75 V DC | 2.5, 3.3, 5, 12, 15, ±12, ±15 | Board mount | 1500 V DC | 24-DIP | |
| MD1000CRW | Wide input, 2:1 | 10 W | 9–18, 18–36 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | 7-SIP | |
| MG1000RW | Wide input, 2:1 | 10 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1500 V DC | 14-DIP | |
| MI1000CRW2 configurations | Wide input, 2:1 | 10 W | 18–36 V DC; 9–18 V DC | 3.3, 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MI1000RW | Wide input, 2:1 | 10 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MA1200RW | Wide input, 2:1 | 12 W | 9–18, 18–36, 36–75 V DC | 2.5, 3.3, 5, 12, 15, ±12, ±15 | Board mount | 1600 V DC | 24-DIP | |
| MA1500RW | Wide input, 2:1 | 15 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1600 V DC | 24-DIP | |
| MB1500CRW | Wide input, 2:1 | 15 W | 9–18 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MI1500CRW | Wide input, 2:1 | 15 W | 18–36 V DC | 3.3, 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MI1500RW | Wide input, 2:1 | 15 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MI2500RW | Wide input, 2:1 | 25 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MB3000CRW | Wide input, 2:1 | 30 W | 18–36 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MI3000RW | Wide input, 2:1 | 30 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, ±12, ±15 | Board mount | 1600 V DC | DIP | |
| MB4000CRW | Wide input, 2:1 | 40 W | 18–36 V DC | 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MB4000RW | Wide input, 2:1 | 40 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MB5000CRW | Wide input, 2:1 | 50 W | 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MB5000RW | Wide input, 2:1 | 50 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MD200RU | Wide input, 4:1 | 2 W | 4.5–18, 9–36, 18–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1500 V DC | 7-SIP | |
| MA300RU(I) | Wide input, 4:1 | 3 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500/3000 V DC | 24-DIP | |
| ME300RU | Wide input, 4:1 | 3 W | 4.5–18, 9–36, 18–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1600 V DC | 4-SIP | |
| ML300CRU | Wide input, 4:1 | 3 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | SMD | |
| ML300RU | Wide input, 4:1 | 3 W | 4.5–12, 9–36, 18–75 V DC | 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | SMD | |
| MA600CRU(I) | Wide input, 4:1 | 6 W | 9–36 V DC | 3.3, 5, 9, 12, 15, 24, 25, ±5, ±12, ±15 | Board mount | 1500/3000 V DC | 24-DIP | |
| MA600CRUHI | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 5, 6, 9, 12, 15, 18, 24 | Board mount | 6000 V DC | 24-DIP | |
| MA600RU(I) | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500/3000 V DC | 24-DIP | |
| MD600CRU | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | Board mount | 1500/1600 V DC | 7-SIP | |
| MD600RU(I) | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500/3000 V DC | 7-SIP | |
| MG600RU | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | 14-DIP | |
| MH600RU | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MI600CRU(I) | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15, ±24 | Board mount | 1500/3000 V DC | 16DIP | |
| ML600RU | Wide input, 4:1 | 6 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1500 V DC | SMD | |
| MA800RU | Wide input, 4:1 | 8 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1600 V DC | 24-DIP | |
| MG800RU | Wide input, 4:1 | 8 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | 14-DIP | |
| MD900RU | Wide input, 4:1 | 9 W | 4.5–18, 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | Board mount | 1600 V DC | 7-SIP | |
| MA1000RU | Wide input, 4:1 | 10 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | 24-DIP | |
| MD1000CRU | Wide input, 4:1 | 10 W | 9–36 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500 V DC | 7-SIP | |
| MG1000RU | Wide input, 4:1 | 10 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | 14-DIP | |
| MI1000CRU | Wide input, 4:1 | 10 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 | Board mount | 1500 V DC | DIP | |
| MP1000CRU(I) | Wide input, 4:1 | 10 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 1500/3000 V DC | DIP | |
| MP1000CRUI5 | Wide input, 4:1 | 10 W | 9–36 V DC | 5, 12 | Board mount | 6000 V DC | DIP | |
| MA1200RU | Wide input, 4:1 | 12 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, ±5, ±12, ±15 | Board mount | 1600 V DC | 24-DIP | |
| MG1200RU | Wide input, 4:1 | 12 W | 9–36, 18–75 V DC | Not specified | Board mount | 1500 V DC | 14-DIP | |
| MA1500RU | Wide input, 4:1 | 15 W | 9–36, 18–75 V DC | Not specified | Board mount | 1600 V DC | 24-DIP | |
| MG1500RU | Wide input, 4:1 | 15 W | 9–36, 18–75 V DC | 5, 12, 15, 24, ±12, ±15 | Board mount | Not specified | 14-DIP | |
| MI1500CRU | Wide input, 4:1 | 15 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, ±5, ±12, ±15, ±24 | Board mount | Not specified | DIP | |
| MB2000CRU | Wide input, 4:1 | 20 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MI2000CRU | Wide input, 4:1 | 20 W | 9–36, 18–75 V DC | 3.3, 5, 6, 12, 15, 24, ±5, ±12, ±15, ±24 | Board mount | 1500 V DC | DIP | |
| MP2000CRUI | Wide input, 4:1 | 20 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24 | Board mount | 3000 V DC | DIP | |
| MP2000CRUI5 | Wide input, 4:1 | 20 W | 9–36 V DC | 3.3, 5, 12, 15, 24 | Board mount | 5000 V DC | DIP | |
| MI2500RU | Wide input, 4:1 | 25 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MB3000CRU | Wide input, 4:1 | 30 W | 9–36, 18–75 V DC | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15, ±24 | Board mount | 1500 V DC | DIP | |
| MI3000CRU | Wide input, 4:1 | 30 W | 18–75 V DC | 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MI3000RU | Wide input, 4:1 | 30 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, ±12, ±15 | Board mount | 1600 V DC | DIP | |
| MB4000CRU | Wide input, 4:1 | 40 W | 9–36, 18–75 V DC | 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MB4000RU | Wide input, 4:1 | 40 W | 9–18, 18–36, 36–75 V DC | 3.3, 5, 12, 15, 24, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MI4000CRU | Wide input, 4:1 | 40 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24, 28 | Board mount | 1500 V DC | DIP | |
| MB5000CRU | Wide input, 4:1 | 50 W | 9–36 V DC | 12, 24 | Board mount | 1500 V DC | DIP | |
| MB5000RU | Wide input, 4:1 | 50 W | 9–36, 18–75 V DC | 3.3, 5, 12, 15, 24 | Board mount | 1500 V DC | DIP | |
| MB6000CRU(I) | Wide input, 4:1 | 60 W | 9–36, 18–75 V DC | 5, 12, 15, 24, 28 | Board mount | 1500/3000 V DC | DIP | |
| MB6000RU | Wide input, 4:1 | 60 W | 9–36, 18–75 V DC | 5, 12, 15, ±12, ±15 | Board mount | 1500 V DC | DIP | |
| MQB7500CRUI | Wide input, 4:1 | 75 W | 18–75 V DC | 5, 12, 15, 24, 48 | Board mount | 2250 V DC | DIP | |
| MQB10000CRUI | Wide input, 4:1 | 100 W | 9–36, 18–75 V DC | 5, 12, 15, 24, 48 | Board mount | 2250 V DC | QB | |
| MQB15000CRUI | Wide input, 4:1 | 150 W | 9–36, 18–75 V DC | 5, 12, 15, 24, 48 | Board mount | 2250 V DC | QB | |
| MQB20000CRUI | Wide input, 4:1 | 200 W | 18–75 V DC | 5, 12, 15, 24, 36, 48 | Board mount | 2250 V DC | QB | |
| MHB400SRU | Wide input, 4:1 | 400 W | 9–40 V DC | 12, 15, 24, 28, 48 | Board mount | 2250 V DC | HB | |
| MD100CRVI | Wide input, 8:1 | 1 W | 4.5–36 V DC | 5, 9, 12, 15 | Board mount | 3000 V DC | SIP | |
| MD300CRVI | Wide input, 8:1 | 3 W | 4.5–36 V DC | 5, 12, 15, ±5, ±12, ±15 | Board mount | 3000 V DC | SIP | |
| MIR600CRU | Railway application | 6 W | 40–160 V DC | 5, 12, 15, 24 | Board mount | 2250 V DC | DIP | |
| MBR1000CRU | Railway application | 10 W | 40–160 V DC | Not specified | Board mount | 2250 V DC | DIP | |
| MIR1000CRUI | Railway application | 10 W | 40–160 V DC | Not specified | Board mount | 3000 V AC | DIP | |
| MBR2000CMRU | Railway application | 20 W | 40–160 V DC | 3.3, 5, 12, 15, 24 | Board mount | 2250 V DC | DIP | |
| MBR2000CRU | Railway application | 20 W | 40–160 V DC | 3.3, 5, 12, 15, 24 | Board mount | 2250 V DC | DIP | |
| MBR2000CRUI | Railway application | 20 W | 40–160 V DC | ±12, ±15, ±24 | Board mount | 3000 V DC | DIP | |
| MBR4000CRUI | Railway application | 40 W | 40–160 V DC | 3.3, 5, 12, 15, 24, 48 | Board mount | 3000 V DC | DIP | |
| MQBR5000CRUI | Railway application | 50 W | 43–160 V DC | 3.3, 5, 12, 15, 24, 48 | Board mount | 3000 V AC | DIP | |
| MR50SRW | Railway application | 50 W | 43–160 V DC | 5, 12, 15, 24 | Board mount | 3000 V AC | QB | |
| MQBR7500CRUI | Railway application | 75 W | 43–160 V DC | 3.3, 5, 12, 15, 24, 48 | Board mount | 3000 V AC | DIP | |
| MR75SRW | Railway application | 75 W | 43–160 V DC | 5, 12, 15, 24 | Board mount | 3000 V AC | QB | |
| MQBR1000CRUI | Railway application | 100 W | 43–160 V DC | 3.3, 5, 12, 15, 24, 48 | Board mount | 3000 V AC | DIP | |
| MHBR1500CRUI | Railway application | 150 W | 43–160 V DC | 5, 12, 15, 24, 48 | Board mount | 3000 V AC | DIP | |
| MHBR2500CRUI2 configurations | Railway application | 250 W | 40–160 V DC; 43–160 V DC | 5, 12, 15, 24, 48, 54 | Board mount; Enclosed | 3000 V AC | DIP; Enclosed | |
| MFBR4000CRUI | Railway application | 400 W | 66–160 V DC | 24, 48 | Board mount | 3000 V AC | DIP | |
| MTL3000CSB | Telecom | 30 W | 36–75 V DC | 3.3, 5, 12, 24, 28 | Board mount | 2250 V DC | DIP | |
| MTL5000CSB | Telecom | 50 W | 36–75 V DC | 5, 12 | Board mount | 1500 V DC | DIP | |
| MTL6000CTBI | Telecom | 60 W | 36–75 V DC | 3.3, 5, 12 | Board mount | 2250 V DC | DIP | |
| MTL7500CEBI | Telecom | 75 W | 36–75 V DC | 3.3, 5, 12, 24, 28, 48 | Board mount | 2250 V DC | DIP | |
| MTL7500CSB | Telecom | 75 W | 36–75 V DC | 5, 12, 28 | Board mount | 1500 V DC | DIP | |
| MTL10000CSB | Telecom | 100 W | 36–75 V DC | 5, 12, 15, 28 | Board mount | 1500 V DC | DIP | |
| MTL12000CEBI | Telecom | 120 W | 36–75 V DC | 5, 12, 24, 28, 48 | Board mount | 2250 V DC | DIP | |
| MTL15000CEBI | Telecom | 150 W | 36–75 V DC | 5, 12, 24, 28, 48 | Board mount | 2250 V DC | DIP | |
| MTL15000CSBI | Telecom | 150 W | 36–75 V DC | 12, 15 | Board mount | 2250 V DC | DIP | |
| MTL20000CSBI | Telecom | 200 W | 36–75 V DC | 12, 15 | Board mount | 2250 V DC | DIP | |
| MTL24000CEB | Telecom | 240 W | 36–75 V DC | 10.8, 12, 24, 28 | Board mount | 1500 V DC | DIP | |
| MTL30000CEBI | Telecom | 300 W | 36–75 V DC | 12, 15, 24, 28, 48 | Board mount | 2250 V DC | DIP | |
| MTL40000CQBI | Telecom | 400 W | 36–75 V DC | 12, 15, 24, 28 | Board mount | 2250 V DC | DIP | |
| MTL80000CHBI | Telecom | 800 W | 36–75 V DC | 50 (25–55) | Board mount | 2250 V DC | DIP | |
| MTL80000CQB | Telecom | 800 W | 40–60 V DC | 10.8, 12 | Board mount | 1500 V DC | DIP | |
| MTL130000CHBI | Telecom | 1300 W | 36–75 V DC | 50 (25–55) | Board mount | 2250 V DC | DIP | |
| MTL130000CQB | Telecom | 1300 W | 45–60 V DC | 10.8, 12 | Board mount | 1500 V DC | DIP | |
| MLSR050C | Non-isolated switching regulator | Not specified | 4.5–36 V DC | 3.3, 5, −5, 6.5, −6.5, 9, −9, 12, −12, 15, −15 | Board mount | Not specified | DFN | |
| MLSR100 | Non-isolated switching regulator | Not specified | 3.5–36 V DC | 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15 | Board mount | Not specified | SMD | |
| MLSR100C | Non-isolated switching regulator | Not specified | 4.5–36 V DC | 3.3, 5, −5, 6.5, −6.5, 9, −9, 12, −12, 15, −15 | Board mount | Not specified | DFN | |
| MSR7805CU | Non-isolated switching regulator | Not specified | 9–90 V DC | 3.3, 5, 6.5, 9, 12, 15, 24 | Board mount | Not specified | SIP | |
| MSR7805CW | Non-isolated switching regulator | Not specified | 4.75–36 V DC | 3.3, 5, −5, 9, 12, −12, 15, −15 | Board mount | Not specified | SIP | |
| MSR7805CWUP | Non-isolated switching regulator | Not specified | 4.5–36 V DC | 3.3, 5, −5, 12, −12, 15, −15 | Board mount | Not specified | SIP | |
| MSR7805H | Non-isolated switching regulator | Not specified | 9–72 V DC | 3.3, 6, 6.5, 7.2, 9, 12, 15 | Board mount | Not specified | SIP | |
| MSR7805M | Non-isolated switching regulator | Not specified | 4.75–34 V DC | 1.5, 1.8, 2.5, 3.3, 5, 6.5, 7.2, 9, 12, 15 | Board mount | Not specified | SIP | |
| MSR7810CM | Non-isolated switching regulator | Not specified | 6–36 V DC | 3.3, 5, −5, 6.5, 9, −9, 12, −12, 15, −15 | Board mount | Not specified | SIP | |
| MSR7810CW | Non-isolated switching regulator | Not specified | 6–36 V DC | 3.3, 5, −5, 6.5, 9, −9, 12, −12, 15, −15 | Board mount | Not specified | SIP | |
| MSR7810M | Non-isolated switching regulator | Not specified | 4.75–18 V DC | 1.5, 1.8, 2.5, 3.3, 5 | Board mount | Not specified | SIP | |
| MSR7810MW | Non-isolated switching regulator | Not specified | 7–28 V DC | 3.3, 5 | Board mount | Not specified | SIP | |
| MSR7820CW | Non-isolated switching regulator | Not specified | 6–36 V DC | 3.3, −3.3, 5, −5, 9, −9, 12, −12, 15, −15 | Board mount | Not specified | SIP | |
| MSR7830CW | Non-isolated switching regulator | Not specified | 8–36 V DC | 3.3, 5, 6.5, 9, 12, 15 | Board mount | Not specified | SIP | |
| MSRB10CBB | Non-isolated buck-boost module | Not specified | 48 (9–60) V DC | 0–60 | Board mount | Not specified | DIP | |
| MSRB10CSD | Non-isolated buck-boost module | Not specified | 48, 72 (18–85) V DC | 5 | Board mount | Not specified | DIP | |
| MSRB20CSD | Non-isolated buck-boost module | Not specified | 48 (14.5–85) V DC | 5 | Board mount | Not specified | DIP | |
| MDP1510CP | PV application | 15 W | 100–1000 V DC | 12, 15, 24 | Board mount | 4000 V AC | DIP | |
| MDP1515CP | PV application | 15 W | 200–1500 V DC | 5, 12, 15, 24 | Board mount | 4000 V AC | DIP | |
| MDP1520CP | PV application | 15 W | 250–2200 V DC | 12, 24 | Board mount | 5000 V AC | DIP | |
| MDP2007CP | PV application | 20 W | 60–750/80–745 V DC | 12, 24 | Board mount | 4000 V AC | DIP | |
| MDP4015CDN | PV application | 40 W | 250–1500 V DC | 24 | DIN rail | 4000 V AC | Din-Rail | |
| MDP4015CP | PV application | 40 W | 250–1500 V DC | 12, 24, 28, 48 | Board mount | 4000 V AC | DIP | |
| MDP4520CP | PV application | 45 W | 250–2200 V DC | 24 | Board mount | 5000 V AC | DIP | |
| MDP5007CE | PV application | 50 W | 80–750 V DC | 12, 24 | Chassis or wired | 4000 V AC | Wired | |
| MDP5010CE | PV application | 50 W | 80–1000 V DC | 12, 24 | Chassis or wired | 4000 V AC | Wired | |
| MDP7510CE | PV application | 75 W | 80–1000 V DC | 12, 15, 24 | Chassis or wired | 4000 V AC | Wired | |
| MDP7515CDN | PV application | 75 W | 250–1500 V DC | 12, 24, 36, 48 | DIN rail | 4000 V AC | Din-Rail | |
| MDP12008CDN | PV application | 120 W | 80–850 V DC | 12, 24, 48 | DIN rail | 4000 V AC | Din-Rail | |
| MDP12011CE | PV application | 120 W | 200–1100 V DC | 12, 15, 24, 26, 28, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP15015CE | PV application | 150 W | 250–1500 V DC | 12, 24, 28, 32, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP15015CE2 | PV application | 150 W | 250–1500 V DC | 12, 24, 28, 32, 36, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP15020CE | PV application | 150 W | 250–2200 V DC | 12, 24, 28, 36, 48 | Chassis or wired | 5000 V AC | Wired | |
| MDP20010CE | PV application | 200 W | 200–1000 V DC | 12, 15, 24, 26, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP20015CE | PV application | 200 W | Not specified | 12, 24, 28, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP24008CDN | PV application | 240 W | 50–850 V DC | 24, 48 | DIN rail | 4000 V AC | Din-Rail | |
| MDP25015CDN | PV application | 250 W | 250–1500 V DC | 12, 24 | DIN rail | 4000 V AC | Din-Rail | |
| MDP30020CE | PV application | 300 W | 500–2000 V DC | 24 | Chassis or wired | 5000 V AC | Chassis | |
| MDP35015CE | PV application | 350 W | 300–1500 V DC | 12, 24, 28, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP50015CE | PV application | 500 W | 300–1500 V DC | 12, 24, 28, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP100010CE | PV application | 1000 W | 300–1000 V DC | 24, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP120015CE | PV application | 1200 W | 300–1500 V DC | 12, 24, 36, 48 | Chassis or wired | 4000 V AC | Wired | |
| MDP350010CDN | PV application | 3500 W | 350–1000 V DC | 24, 48 | DIN rail | 4000 V AC | Din-Rail | |
| MDP50008CDN | PV application | Not specified | 250–850 V DC | 24, 48 | DIN rail | 4000 V AC | Din-Rail |
No listed series matches every answer. Send your requirements and we will come back with options.
Find a listed DC-DC converter
Manufacturer
2 listed DC-DC converters
Your requirements Send these requirements
| Actions | |
|---|---|
| LM2596HVGDP-ADJTAEJIN Technology · In stock3.0A Step-Down Voltage Regulator (150KHz) SOP-8PP 3.0A Step-Down Voltage Regulator (150KHz) SOP-8PP | |
| MI3024S-24BRU-A2S-HMicroPower DirectDC/DC, 30W, Vin: 9-36VDC Vout: 24V/1.25A, Chassis Mount w/ heatsink DC/DC, 30W, Vin: 9-36VDC Vout: 24V/1.25A, Chassis Mount w/ heatsink | |
No products match these selections. Remove a filter or , or send us these requirements and we'll come back with options. Send these requirements Search all products →
Manufacturer
Don't see it?Your DC-DC converter requirements
What's online is a subset of what we quote. Send us a part number, the specs you need, or just your application, and we'll come back with options.
These are in your message. Add what else matters, send it, and we'll come back with options.
Filters you choose are added to your message.
You've edited the requirements in your message, so new filters aren't added automatically.
